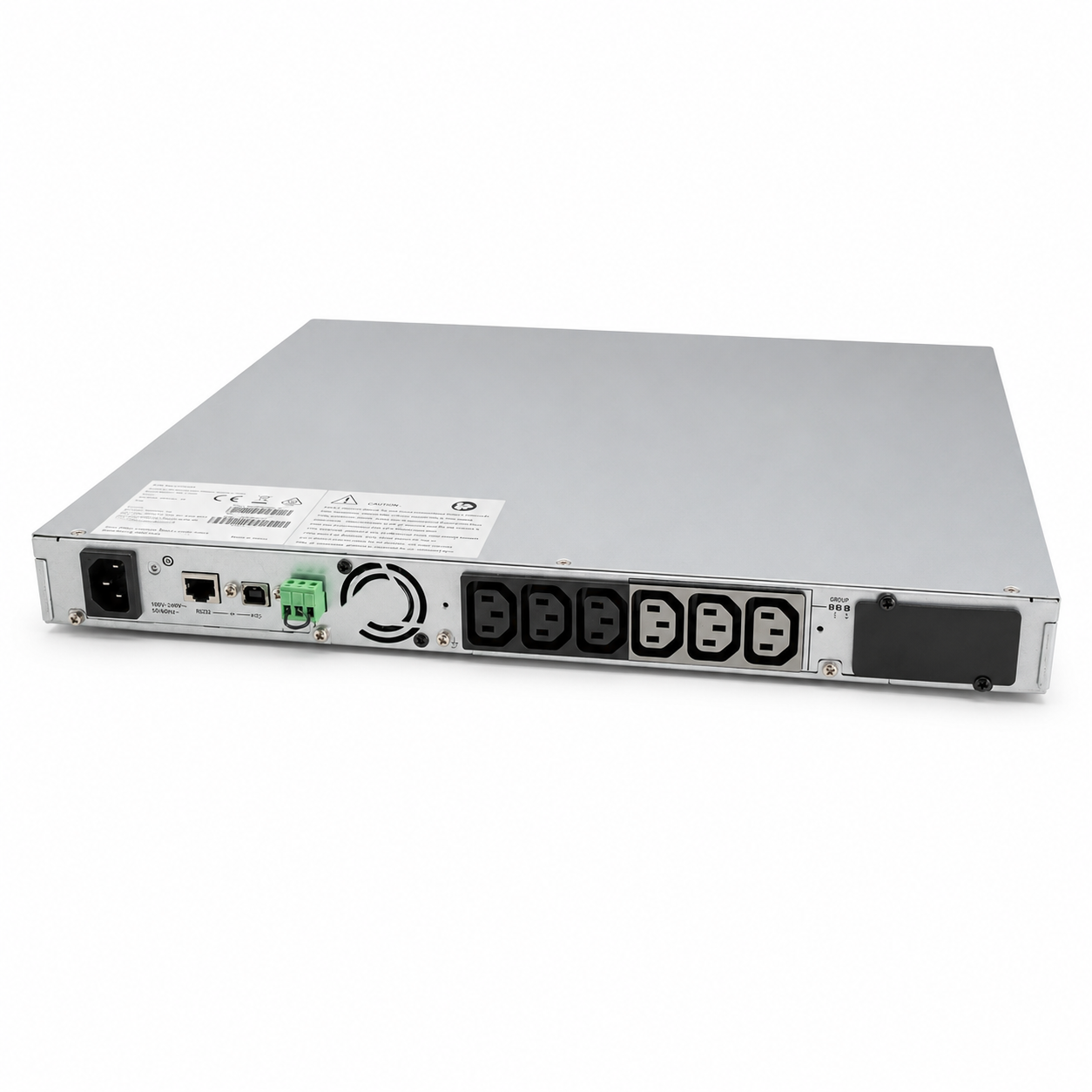

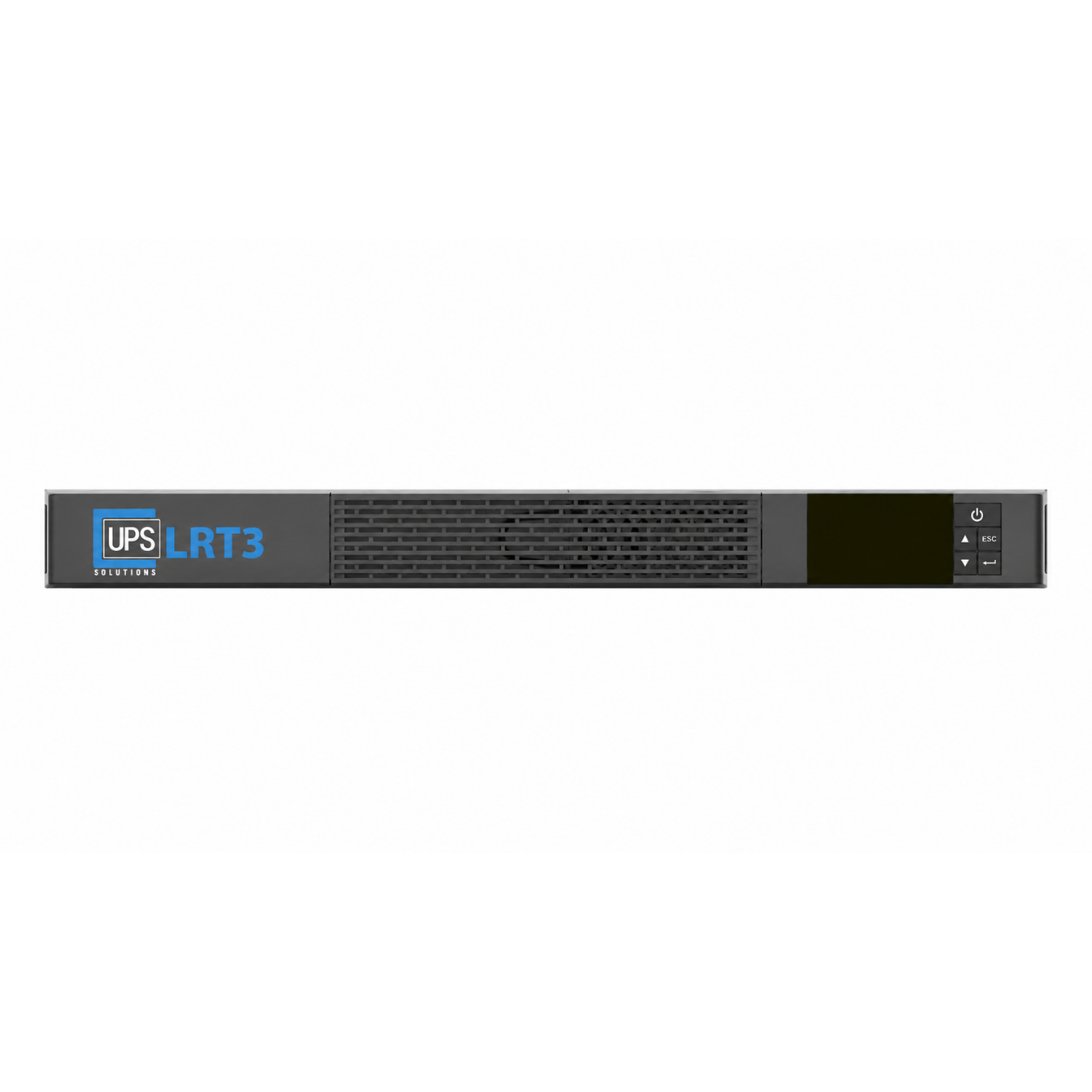

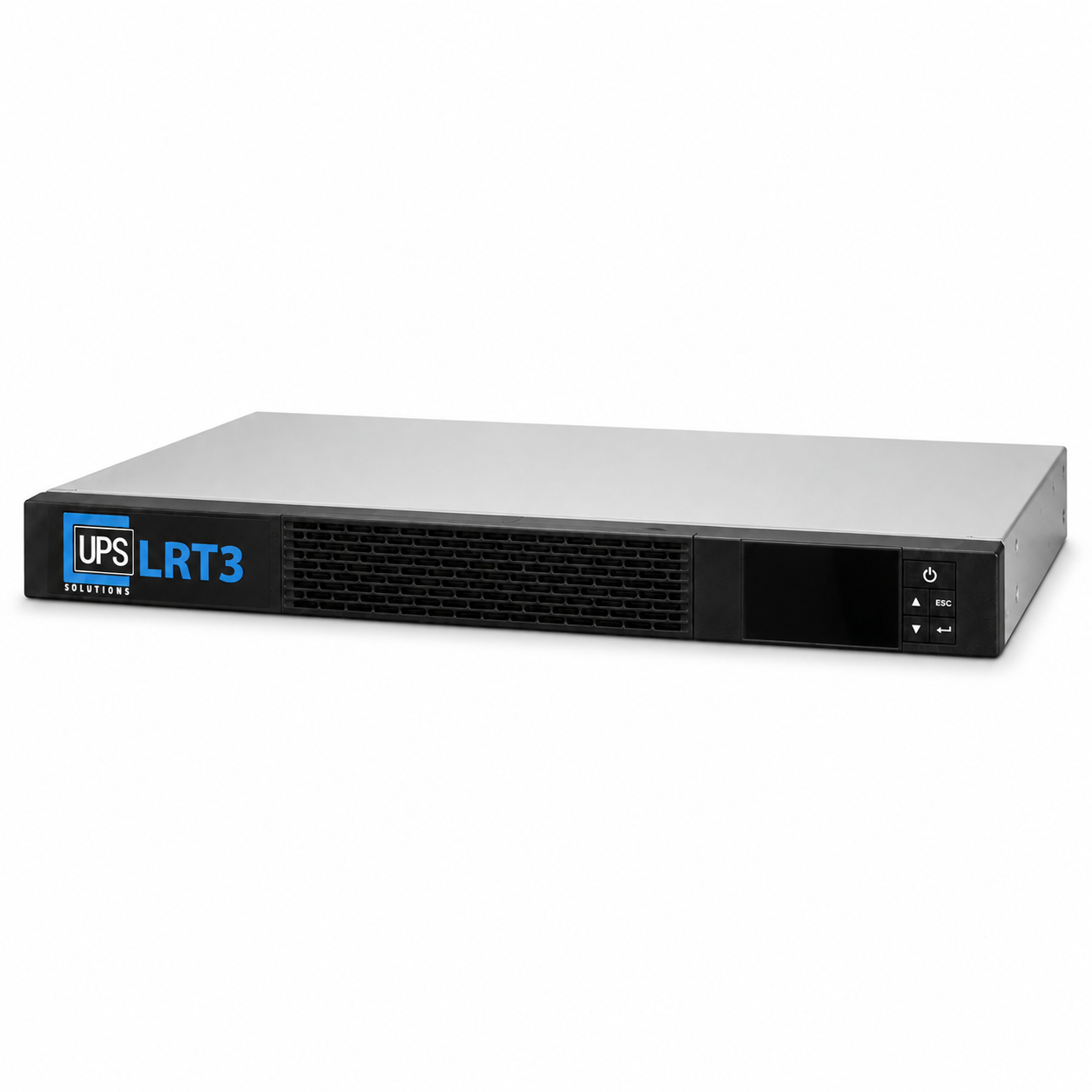

UPS Solutions LRT3 1150VA 1U Rackmount Line-Interactive UPS | LRT3-1150

1150VA RACK POWER IN JUST 1U

Pure Sine Wave Protection with Six IEC Outlets and Intelligent Load Management.

The UPS Solutions LRT3-1150 is a compact 1150VA / 770W line-interactive UPS designed for network, communications and edge-computing racks where both capacity and outlet count matter. Its true 1U design provides reliable pure sine wave battery power without displacing the equipment it protects.

Six IEC C13 outlets provide connections for mixed rack equipment, while two independently programmable outlet groups allow non-critical devices to be shed during a power interruption, reserving battery capacity for essential systems.

KEY HIGHLIGHTS:

• Capacity: 1150VA / 770W
• Technology: Line-Interactive
• Waveform: Pure Sine Wave
• Form Factor: 1U Rackmount
• Output: 6 × IEC C13 Outlets
• Outlet Management: 2 Programmable Outlet Groups
• Runtime: Approx. 4.6 Minutes at 100% Load
• Communication: USB, RS232, Communication Slot, Dry Contact, ROO and RPO
• Noise Level: Less Than 40 dBA
• Part Number: LRT3-1150

FEATURES:

• High-Capacity 1U Design – Delivers 1150VA / 770W of protection in a single rack unit
• Six IEC Outlets – Protects multiple devices within a mixed communications or edge-computing rack
• Pure Sine Wave Output – Clean battery power for active-PFC power supplies and sensitive electronics
• Programmable Outlets – Two independently configurable outlet groups for intelligent load shedding
• Graphical LCD – Five-button front-panel navigation for operating information and settings
• Comprehensive Connectivity – USB, RS232, communication slot, dry contact, ROO and RPO
• Easy-Maintenance Batteries – Standard sealed 6V battery blocks designed for straightforward servicing
• Selectable Output – Supports 200, 208, 220, 230 and 240 V at 50 or 60 Hz
• Quiet Operation – Less than 40 dBA for offices and communications cupboards

IDEAL FOR:

Network switches, routers, firewalls, NVR and CCTV recorders, NAS devices, small edge servers, POS systems, access control equipment, building systems, and AV or control racks.

OPTIONAL ACCESSORIES & SERVICES:

Rack rails, site installation and extended service agreements are available on request. UPS Solutions can also review your connected load and cabinet depth to confirm the correct UPS configuration.

Backup time is approximate and measured using new, fully charged batteries at 25°C under a 100% resistive load. Actual runtime will vary depending on connected load, battery condition and ambient temperature. Confirm adequate cabinet depth and rear cable clearance before ordering.
