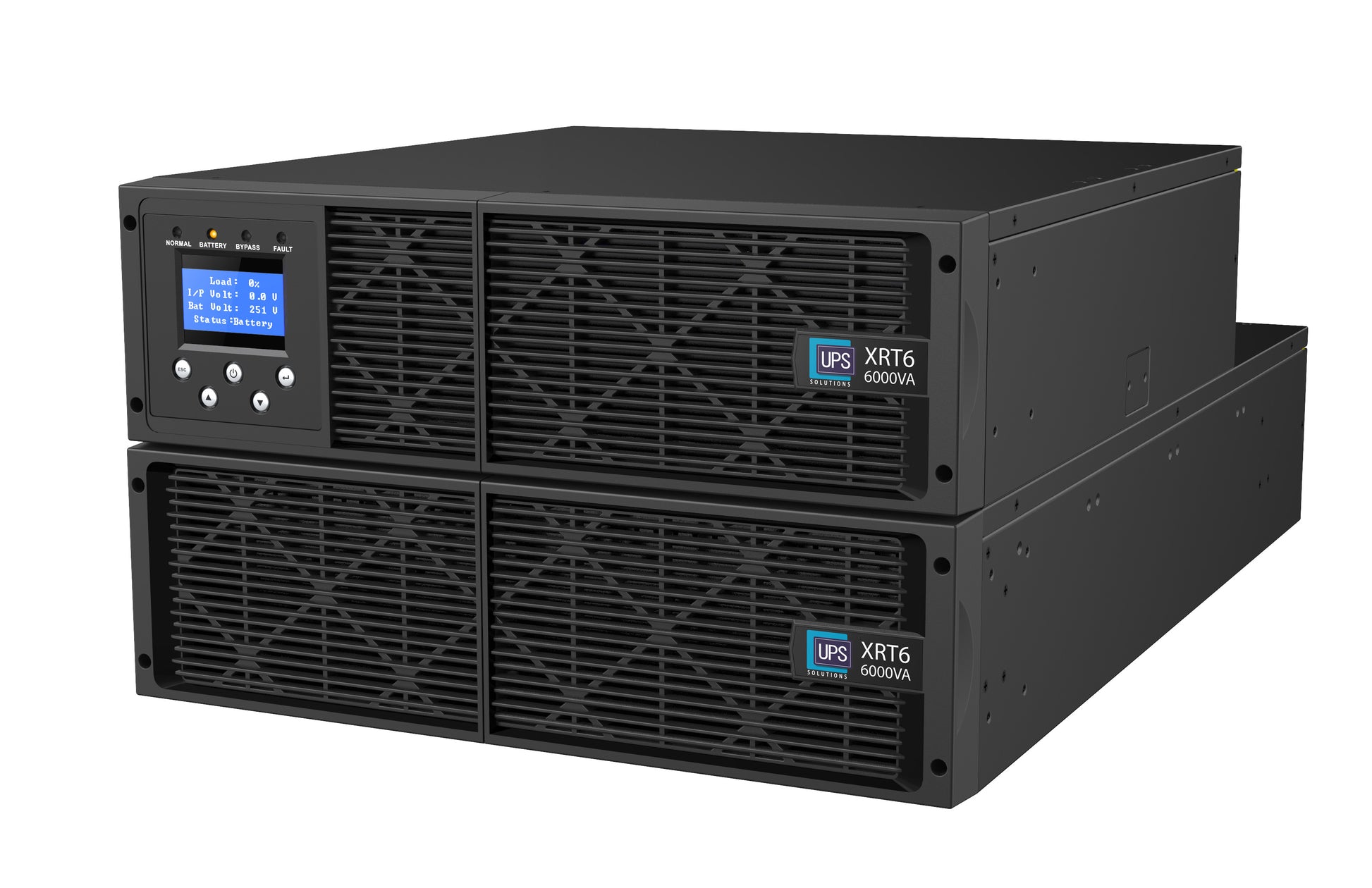

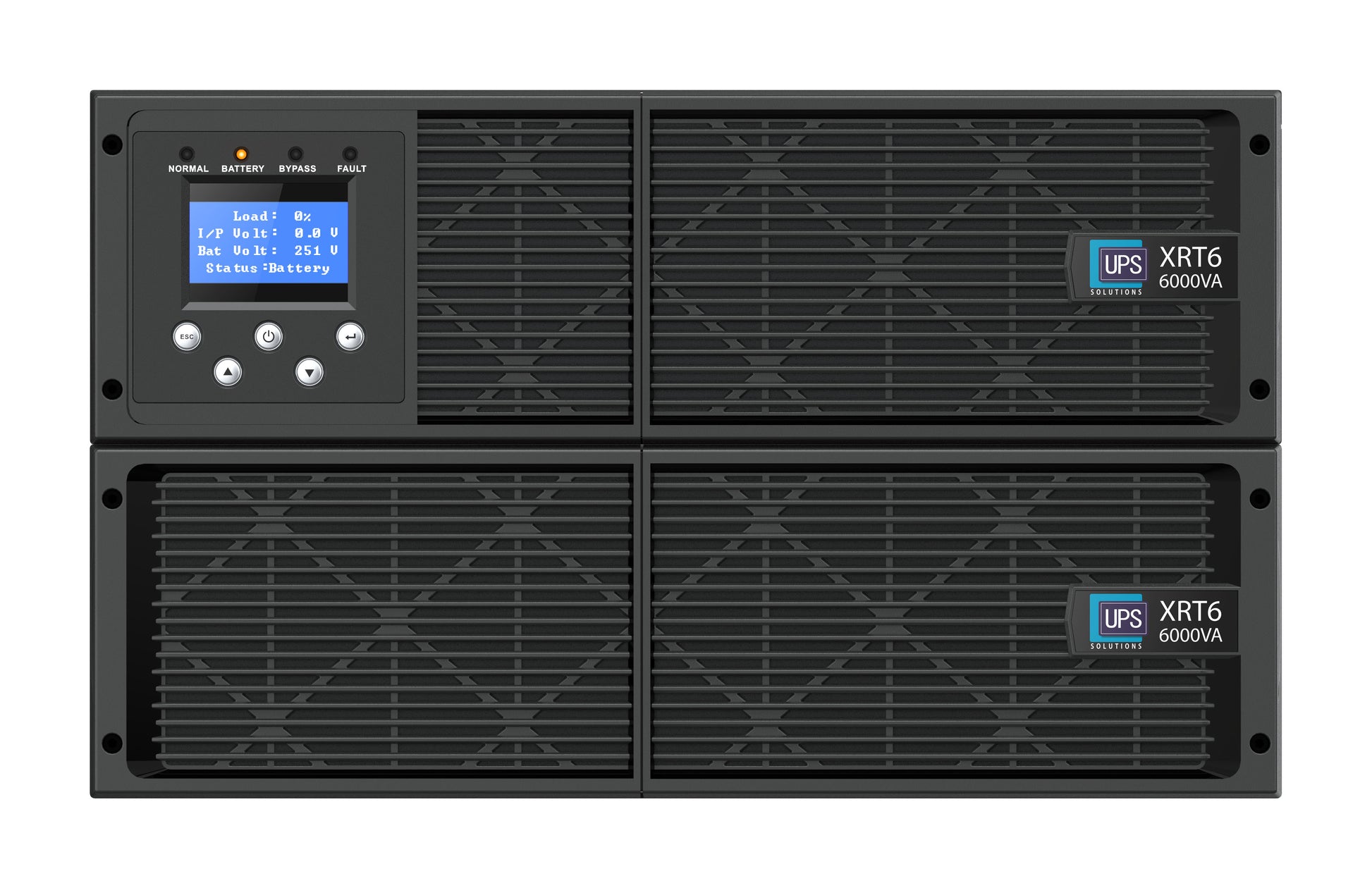

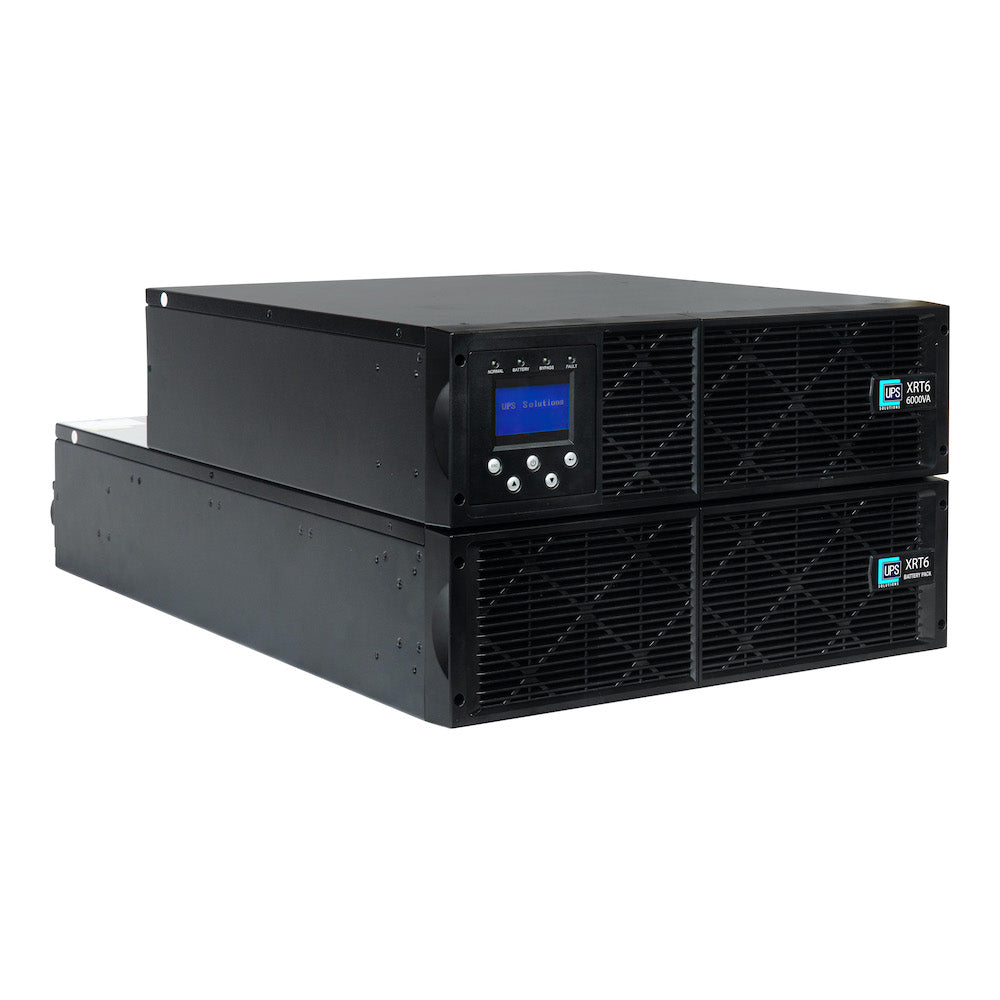

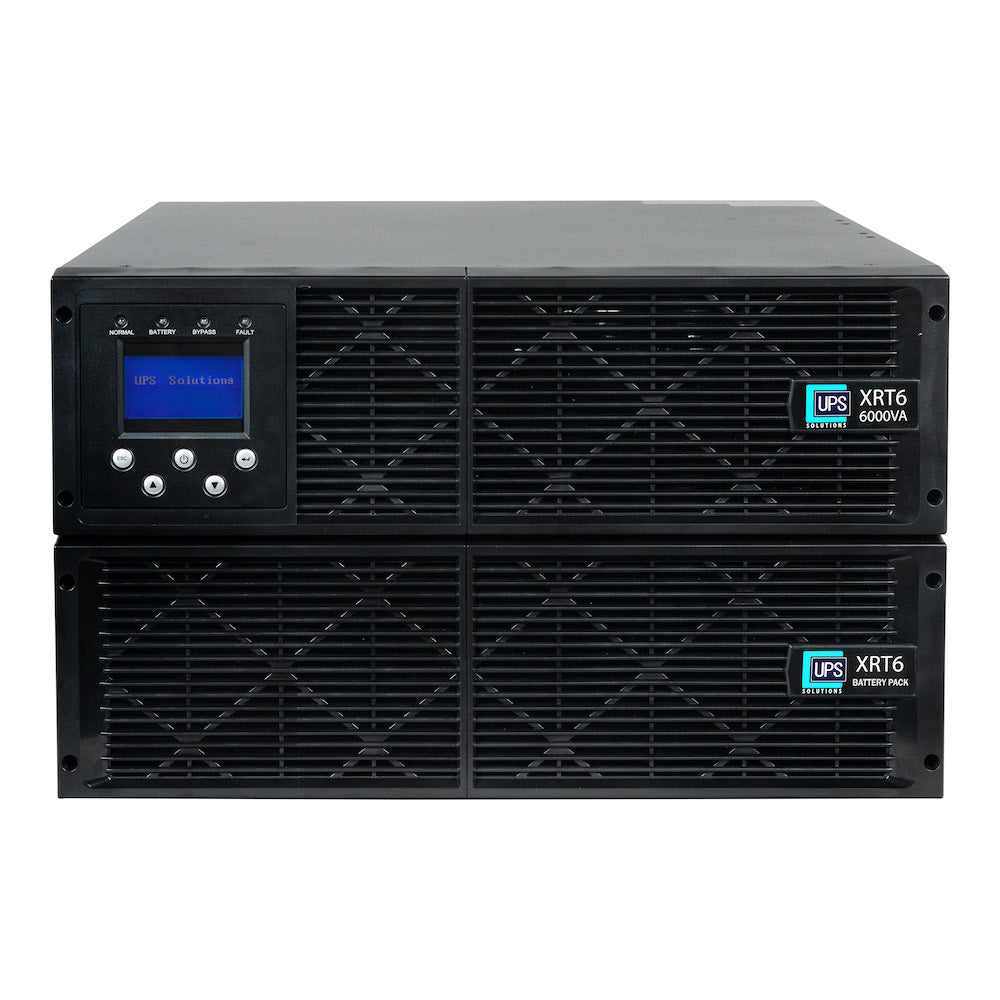

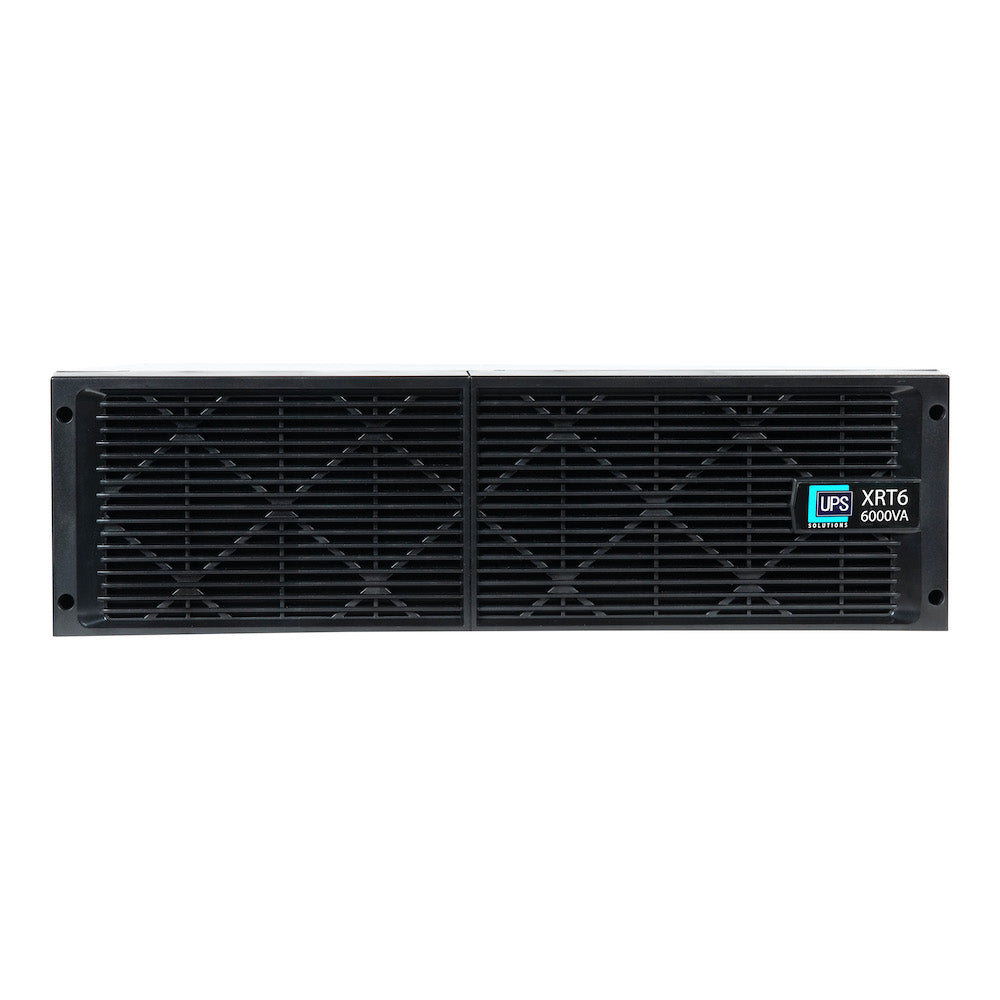

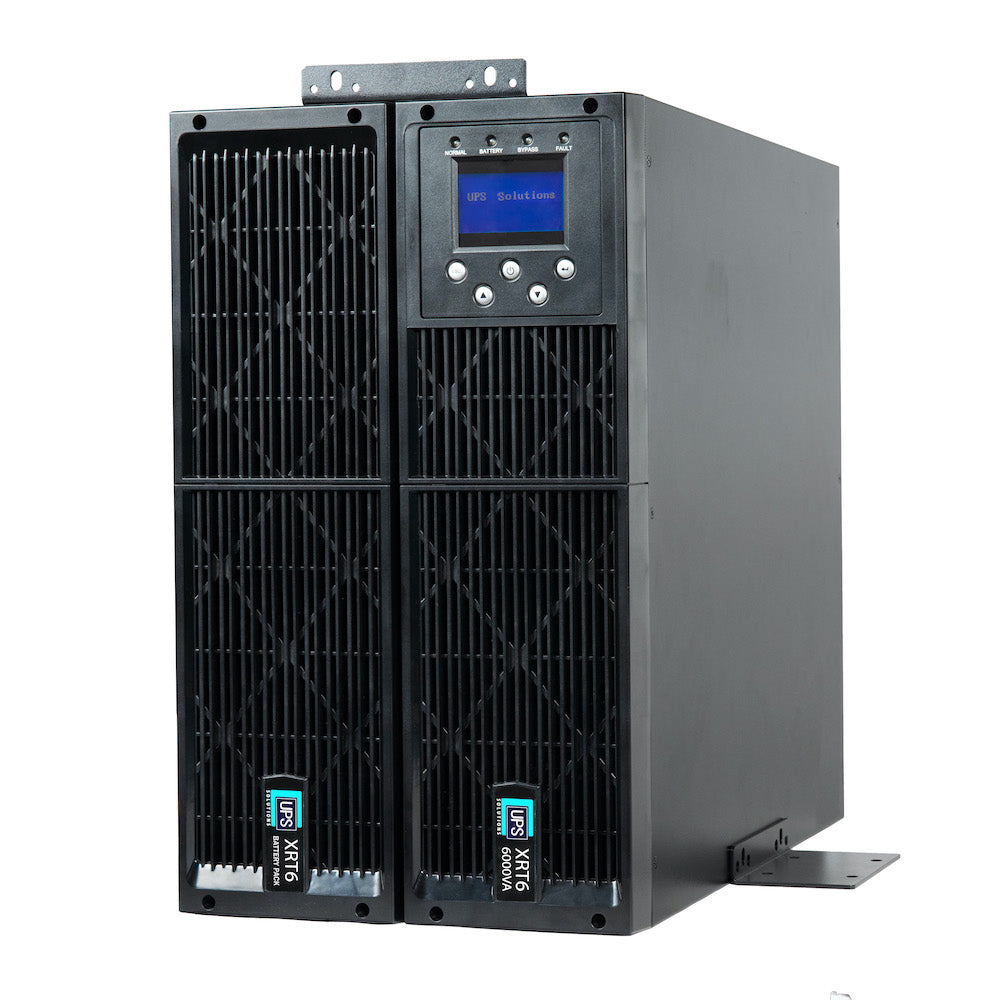

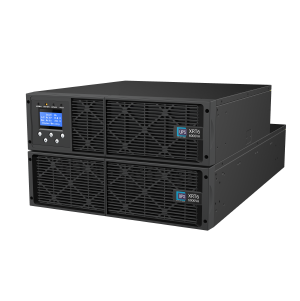

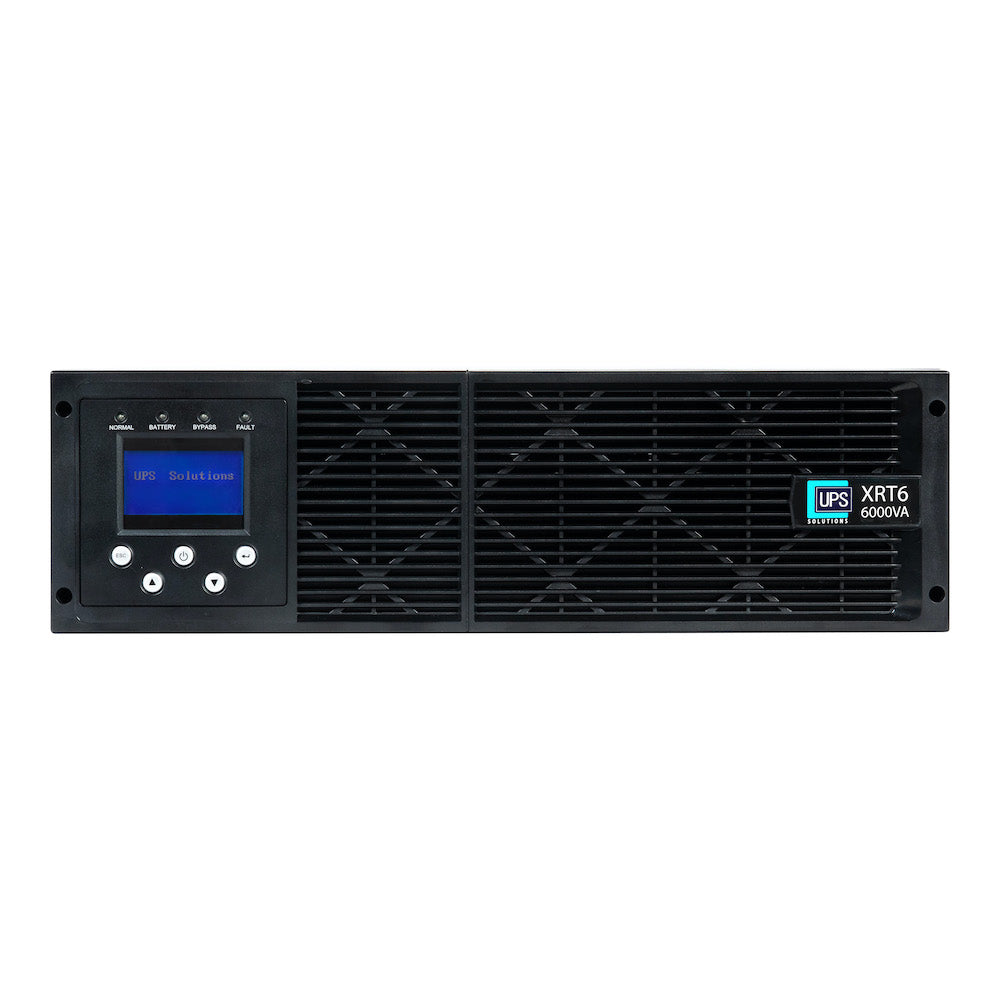

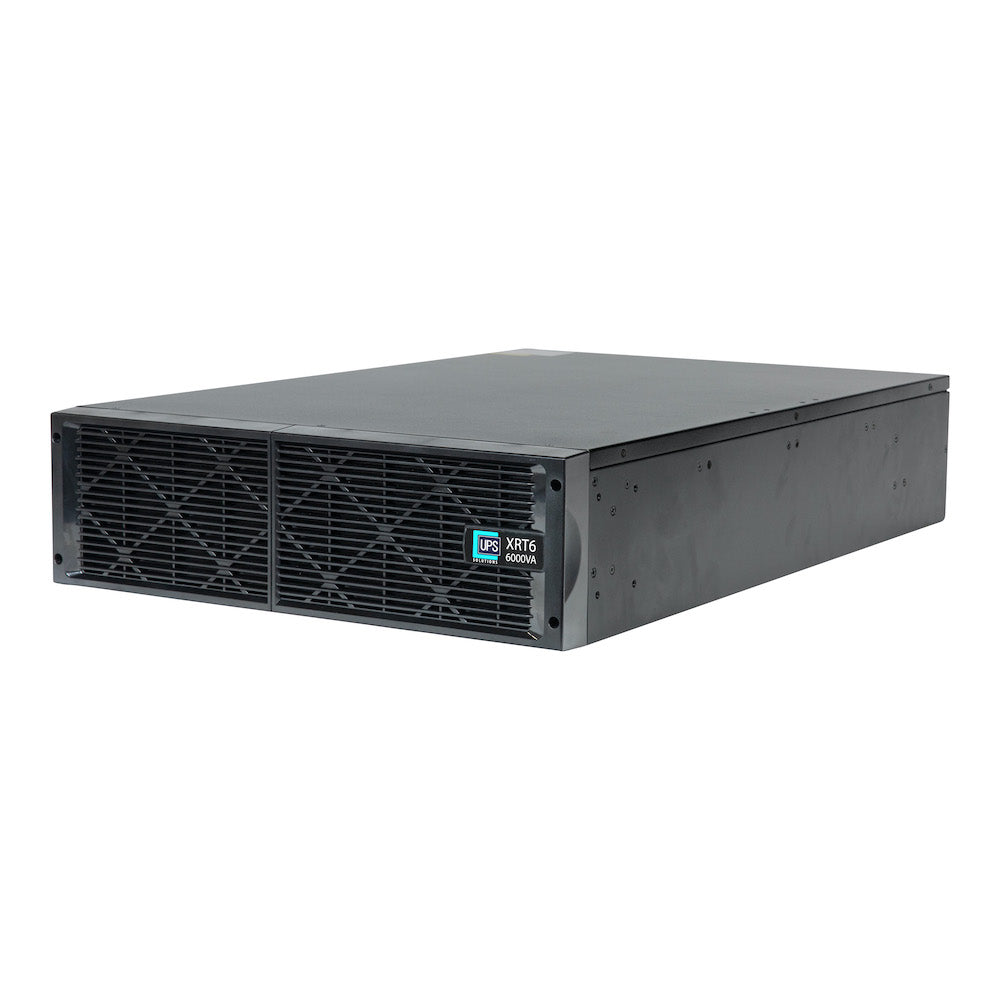

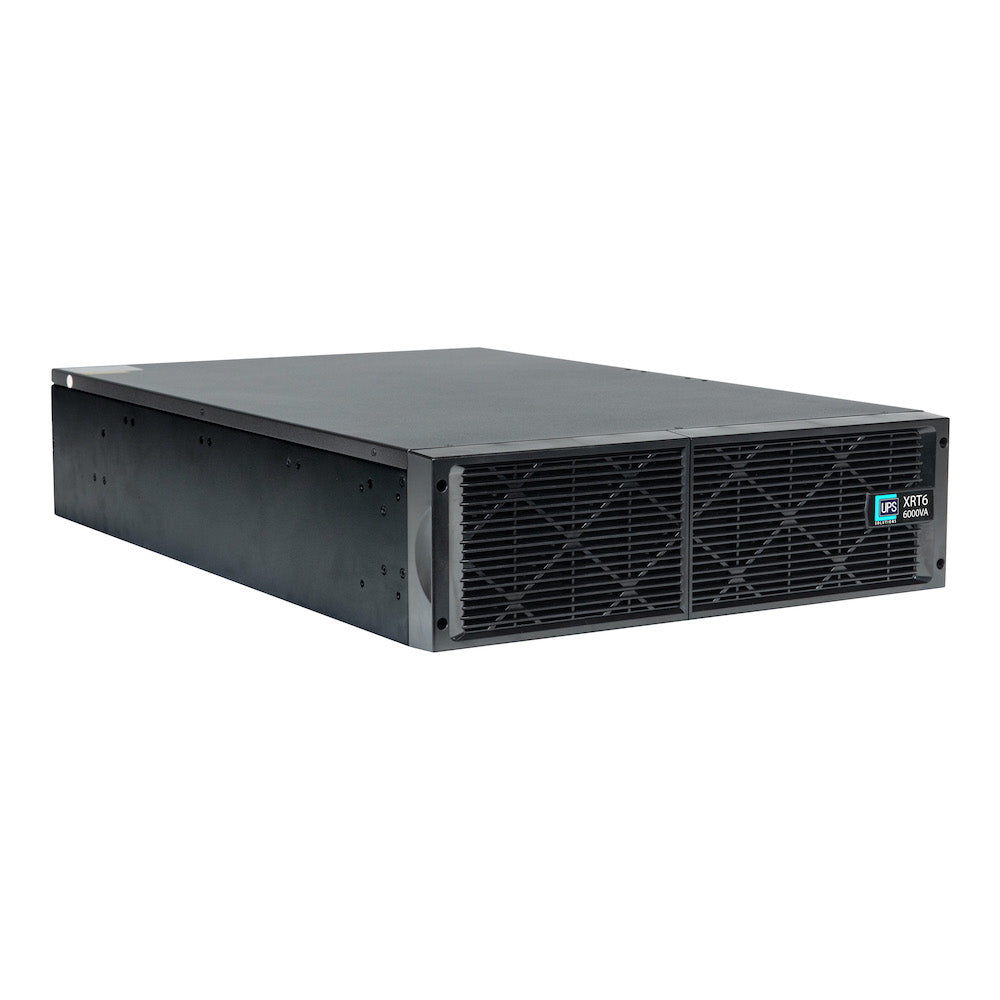

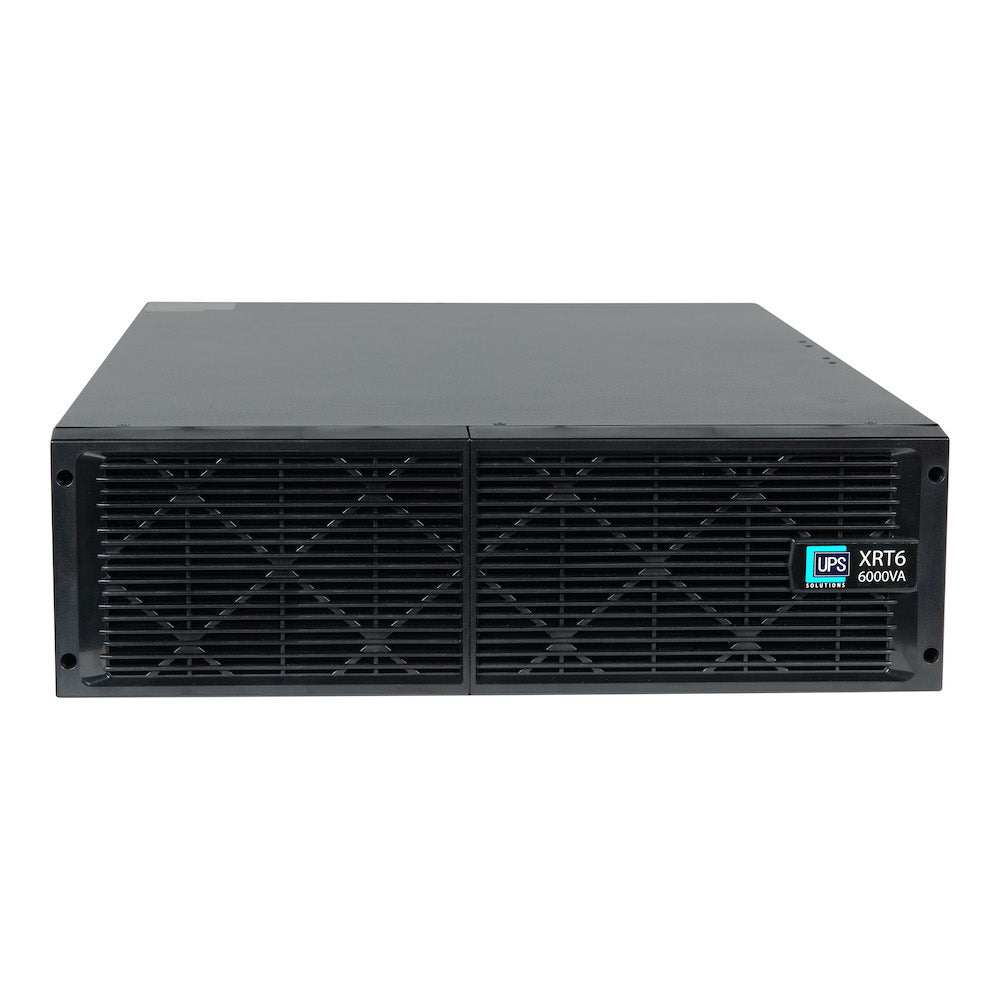

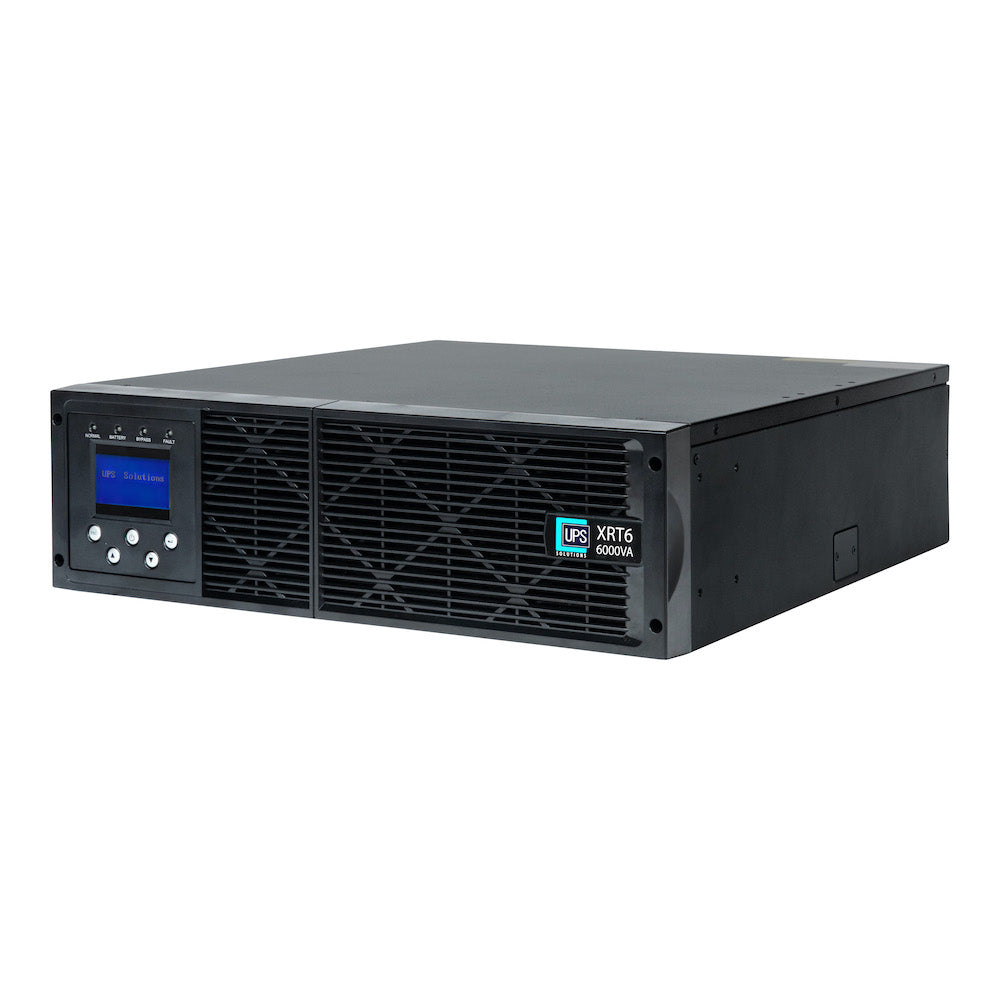

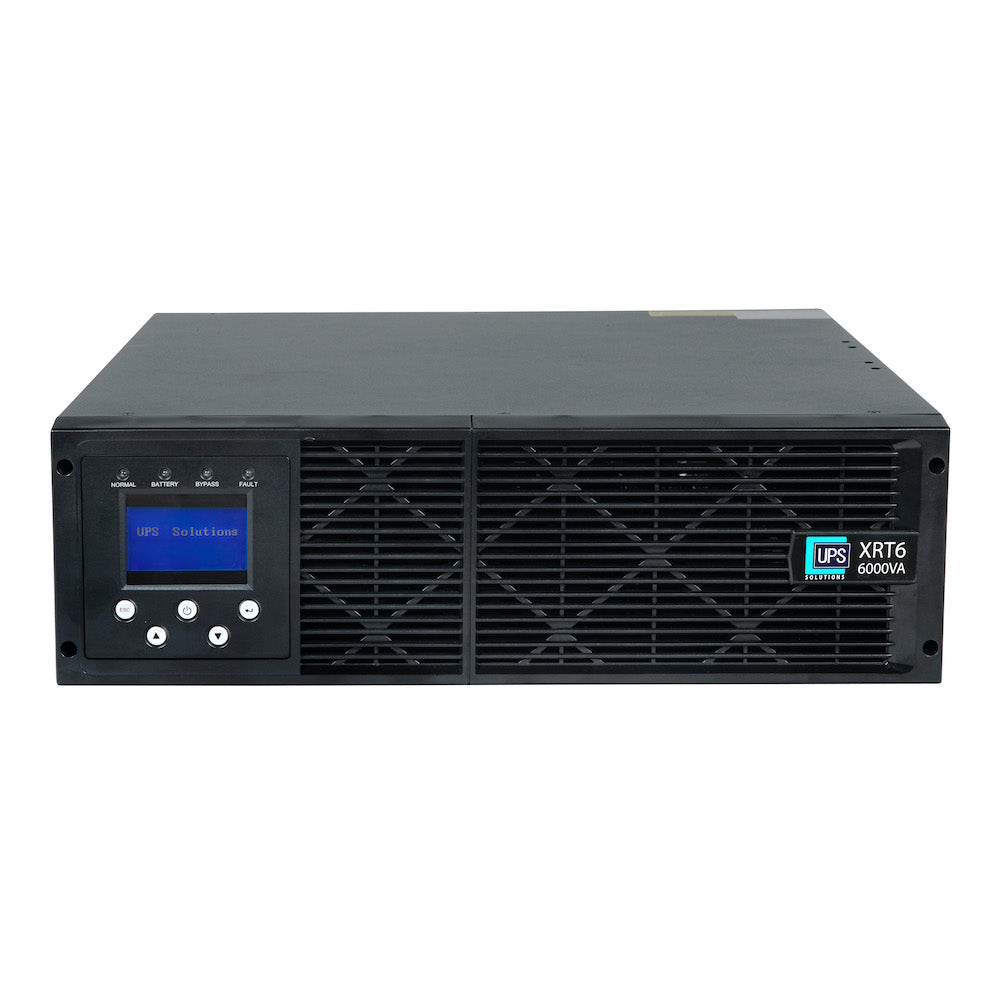

UPS Solutions XRT6 6kVA Online UPS with Long Life Battery + SNMP & Surge Protection | XRT6-6000L

UPS Solutions XRT6 6kVA Online UPS with Long Life Battery + SNMP & Surge Protection | XRT6-6000L

Shipping calculated upon quotation.
kVA
Topology
Wiring Type
View full details

Description

COMPLETE XRT6 PACKAGE

Includes 10-Year Design Life Battery, SNMP Network Card, Surge Protection Device + 5-Year Warranty.

UPS Solutions Deal: The above price includes a plug-n-play external Surge Protection Device (View Details)  that provides extra surge protection to both the UPS and valuable connected devices, plus a 5 Year Warranty on the UPS and Batteries.

The XRT6 is a true on-line double-conversion UPS delivering continuous, high-quality 230 V AC power with zero transfer time. It protects against 10 out of 10 power issues — blackouts, brownouts, sags, surges and noise interference — ensuring uninterrupted performance for mission-critical systems. The XRT6 is the only UPS available in Australia with 10-year design-life batteries, setting a new benchmark for reliability and longevity.

Key Highlights:

  • Capacity: 6 kVA / 5.4 kW
  • Technology: Online Double-Conversion
  • Battery Type: 10-Year Design-Life Lead Acid

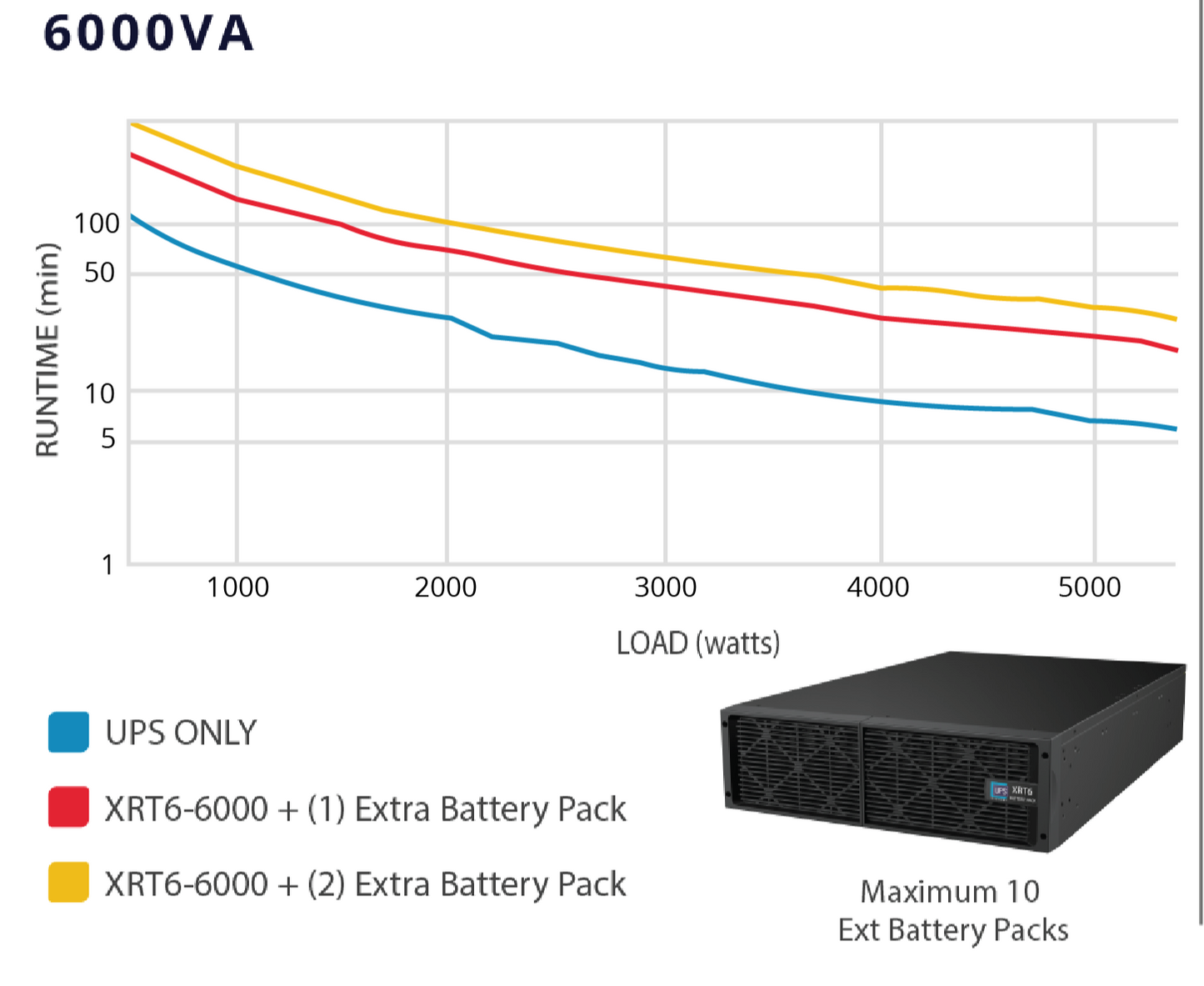

  • Runtime: Approx. 16 mins @ 50% load (View Runtime Chart)
  • Output Sockets: Terminal Block + 4 × IEC C13 + 4 × IEC C19
  • Input: 32A Terminal Block
  • Communication: SNMP Card Included, USB

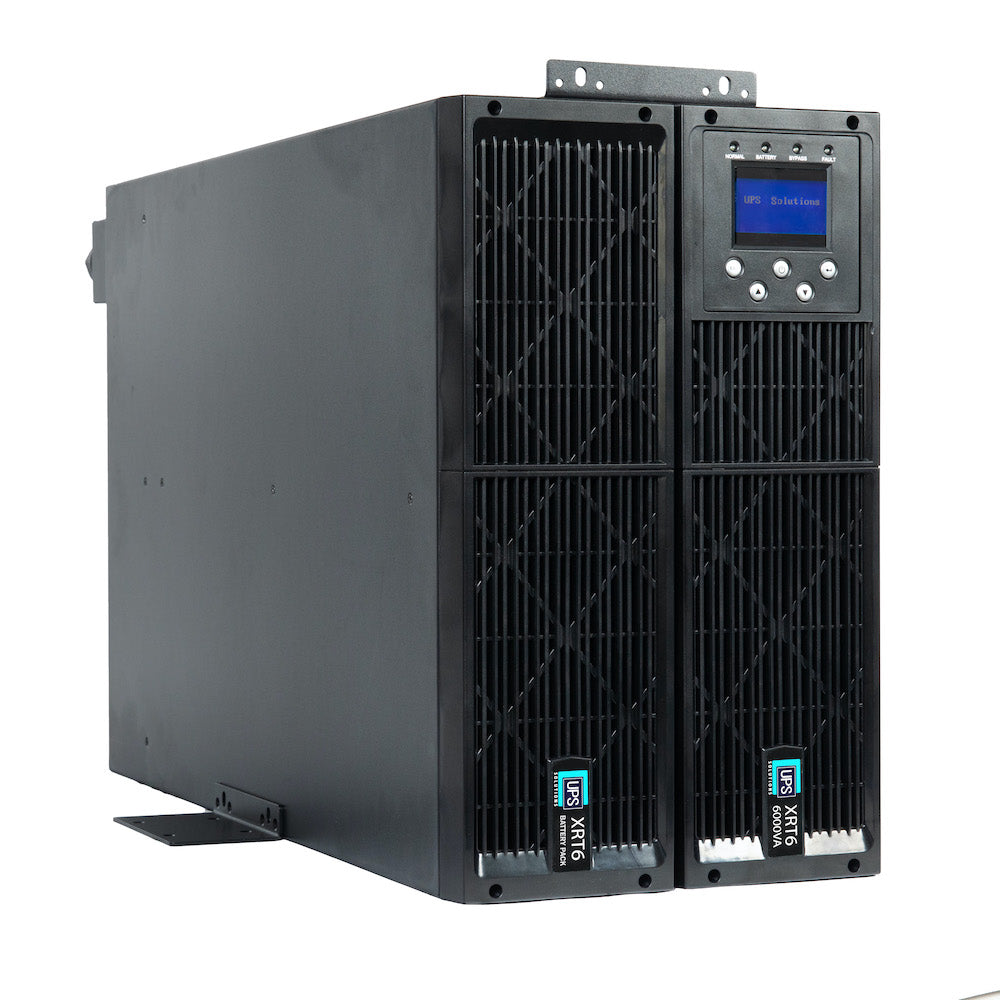

  • Form Factor: Rack / Tower Convertible (6U)
  • Warranty: 5 Years (UPS + Batteries)
  • Part Number: XRT6-6000L

FEATURES:

 Long-Life Batteries – 10-Year Design Life
 Reduced Cost – Minimises battery replacements and lowers lifetime ownership costs
 Fire Retardant – Up to 2 hours fireproof for enhanced safety
 Plug-and-Play Surge Protection – Extra defence for both UPS and connected equipment
 Zero Transfer Time – Seamless power delivery for critical loads

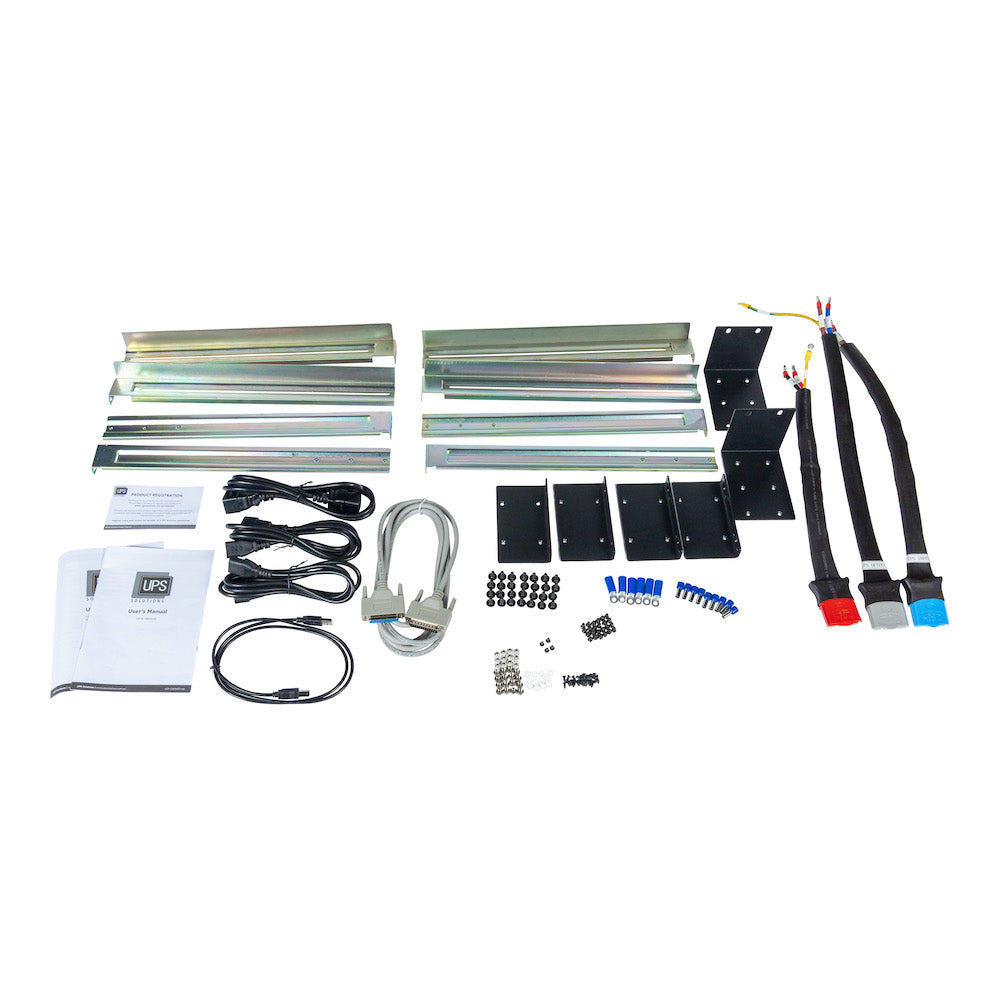

WHAT'S IN THE BOX?

 UPS Unit
 Surge Protection Device
 IEC and Power Cables
 Tower Stands
 Rackmount Rails
 Hardware, Software & Manuals
 Cables and Ties

LABOUR WARRANTY

Onsite fault response or repair within 100KM of CBD Metro after remote diagnosis.

Download Brochure

Specifications

Part Number
Part Number XRT6-6000L
General Features
UPS Topology Online Double Conversion
UPS Rating 6kVA / 5.4kW
Wiring Type Single Phase

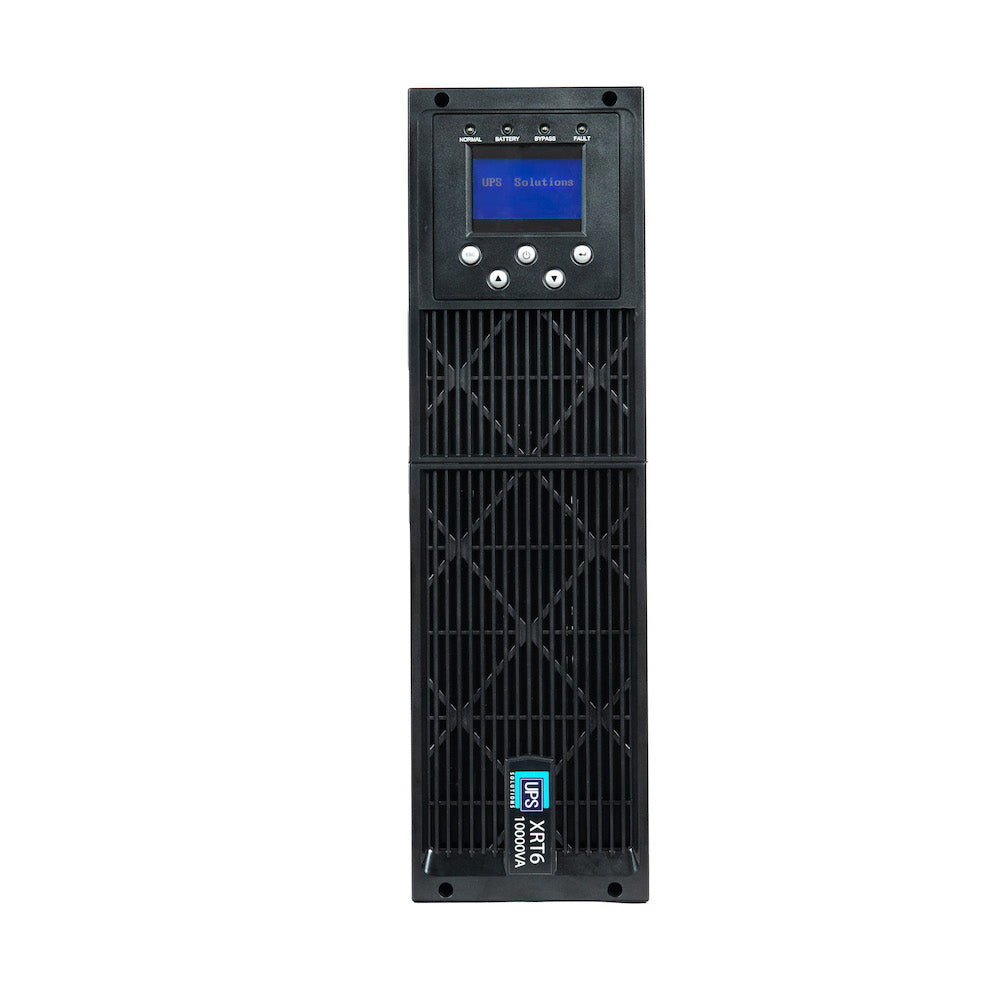

Form Factor Rack / Tower Convertible (6U)
Battery Type Lead-acid (10-year design life)
Communication Management SNMP Card (included), USB
UPS Technology Double-conversion Online
Warranty 5 Years (UPS + Batteries)
Electrical Specifications

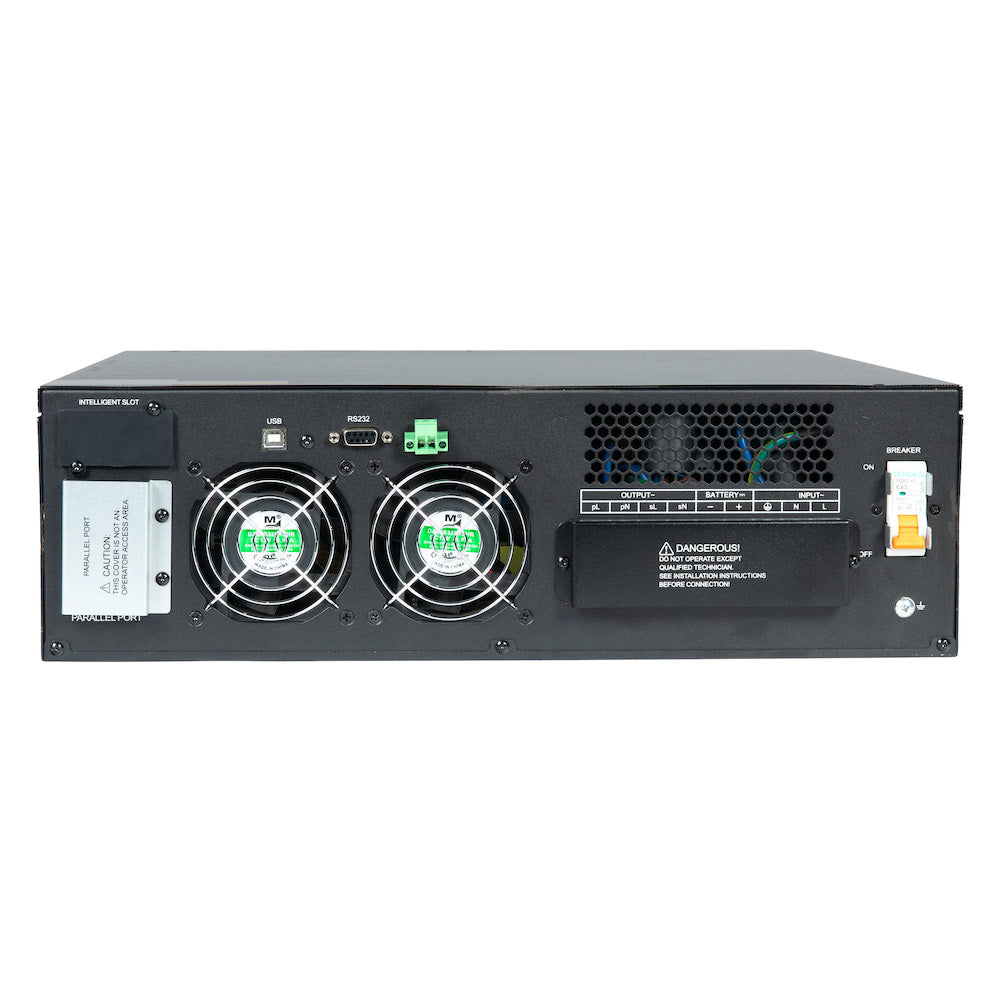

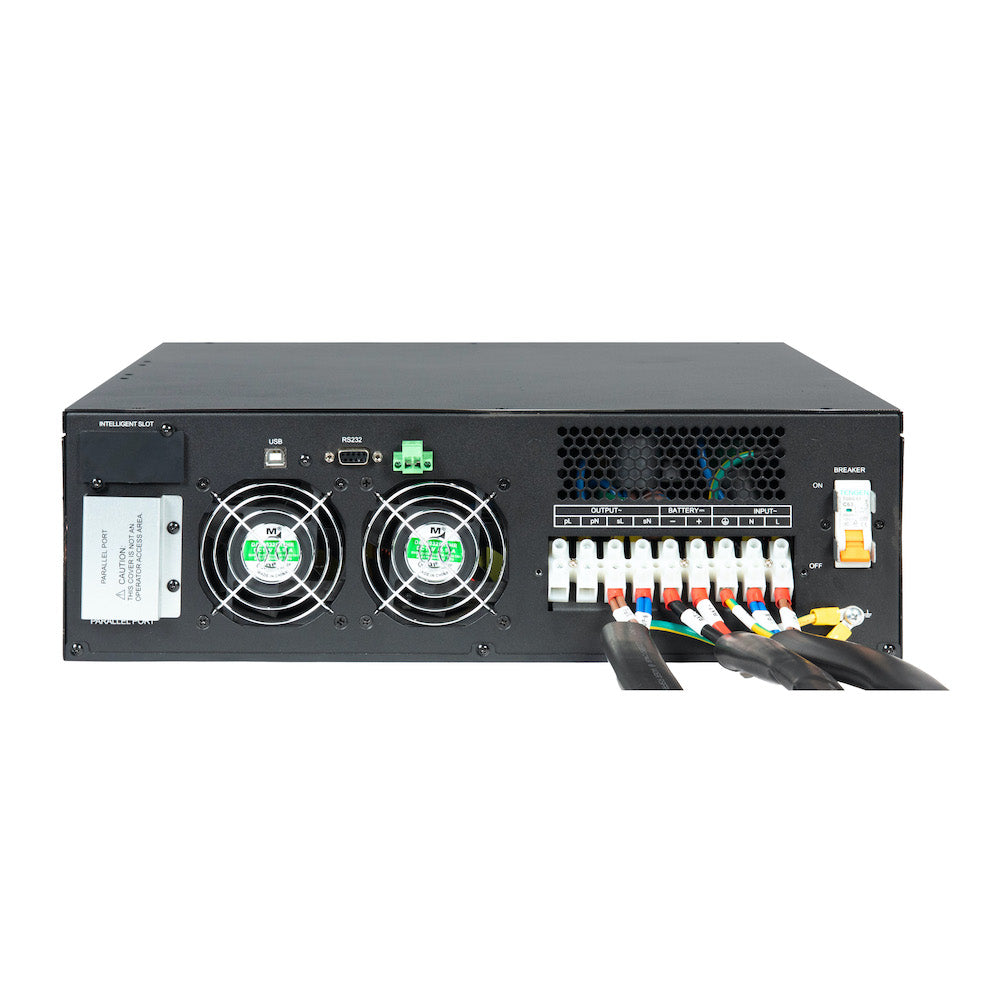

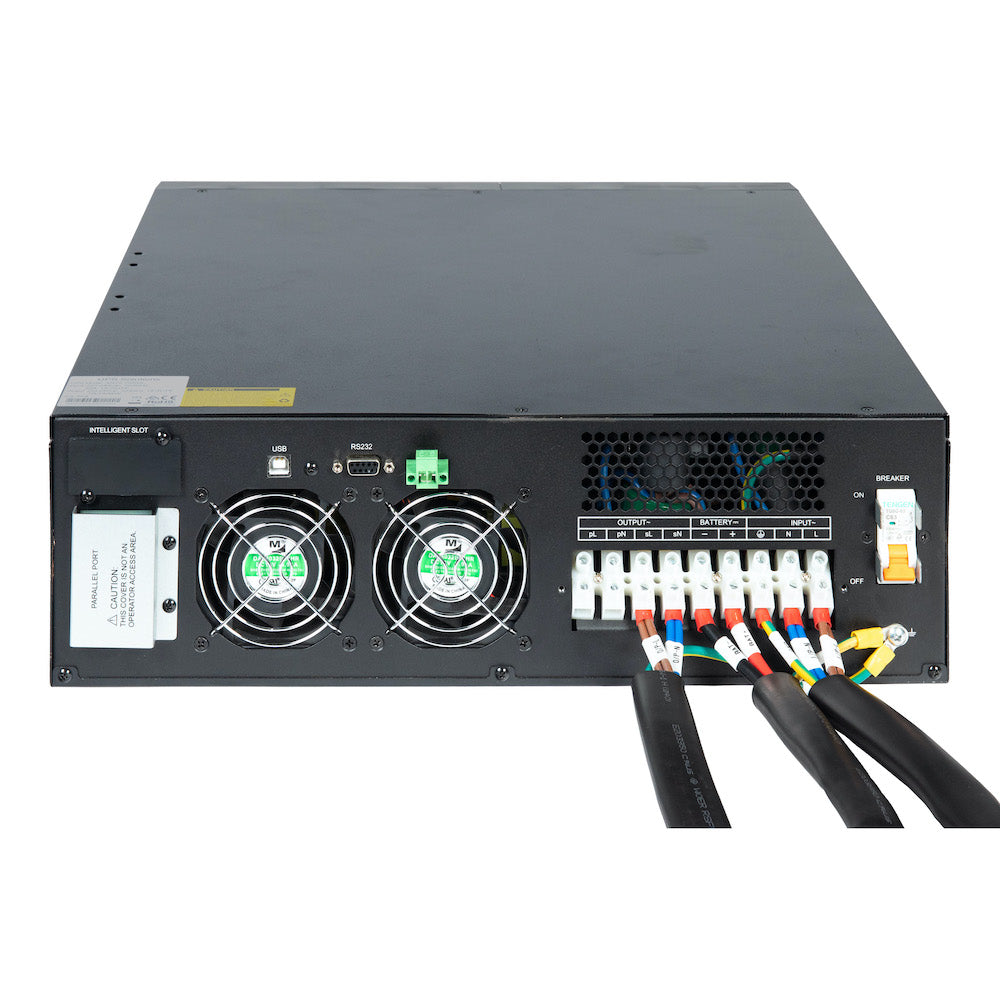

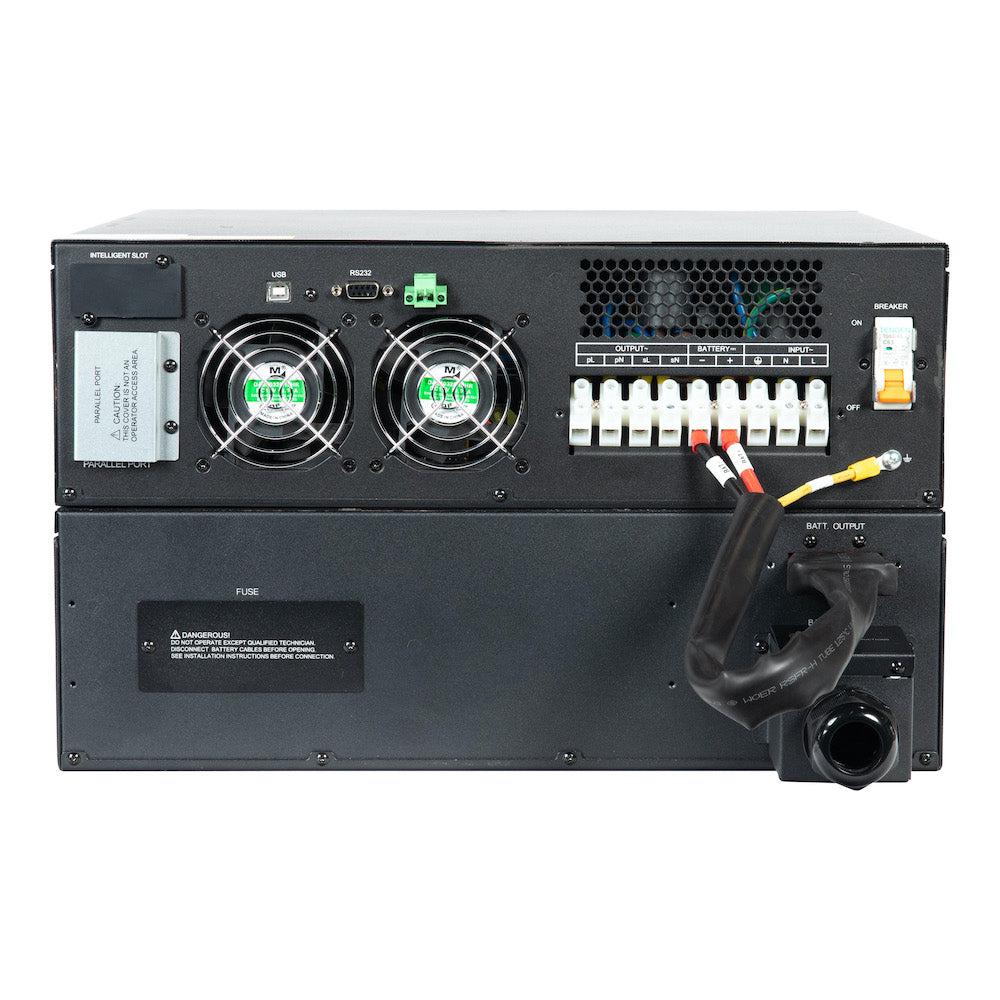

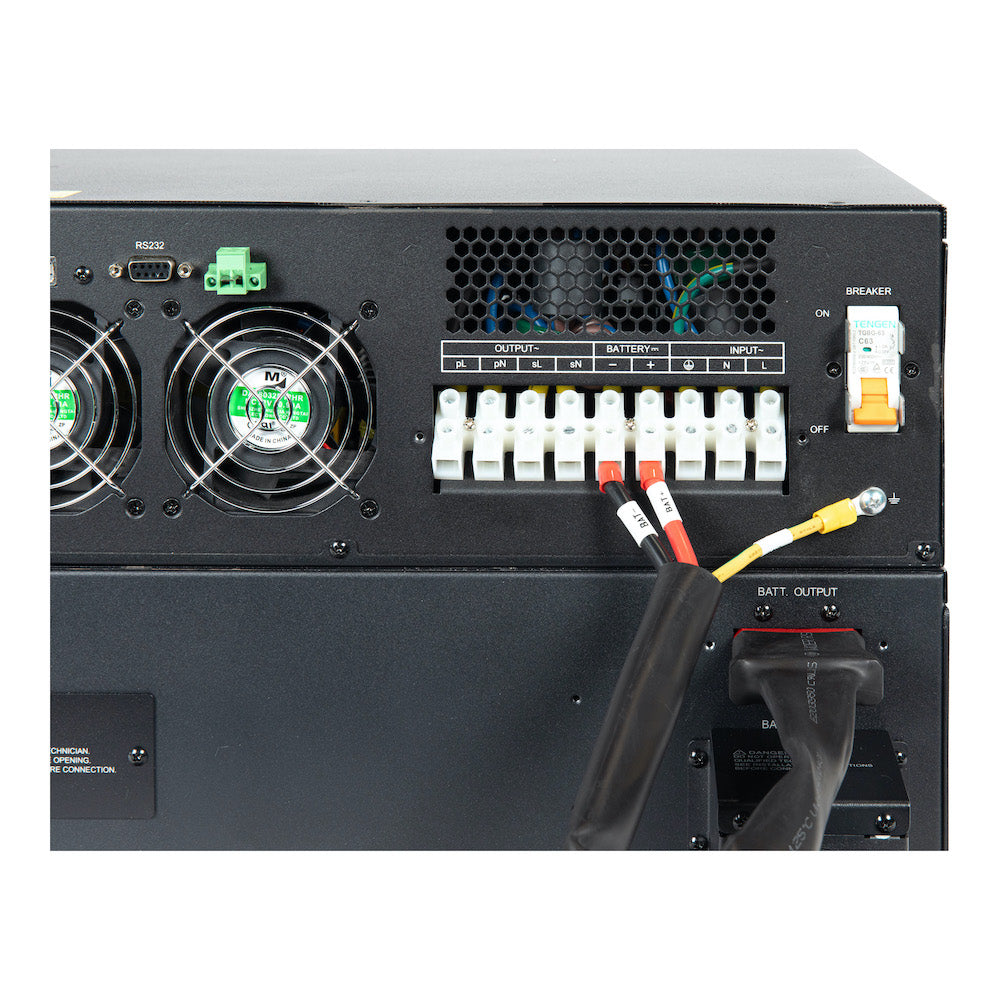

Input 32 Amp, Hardware Terminal Block

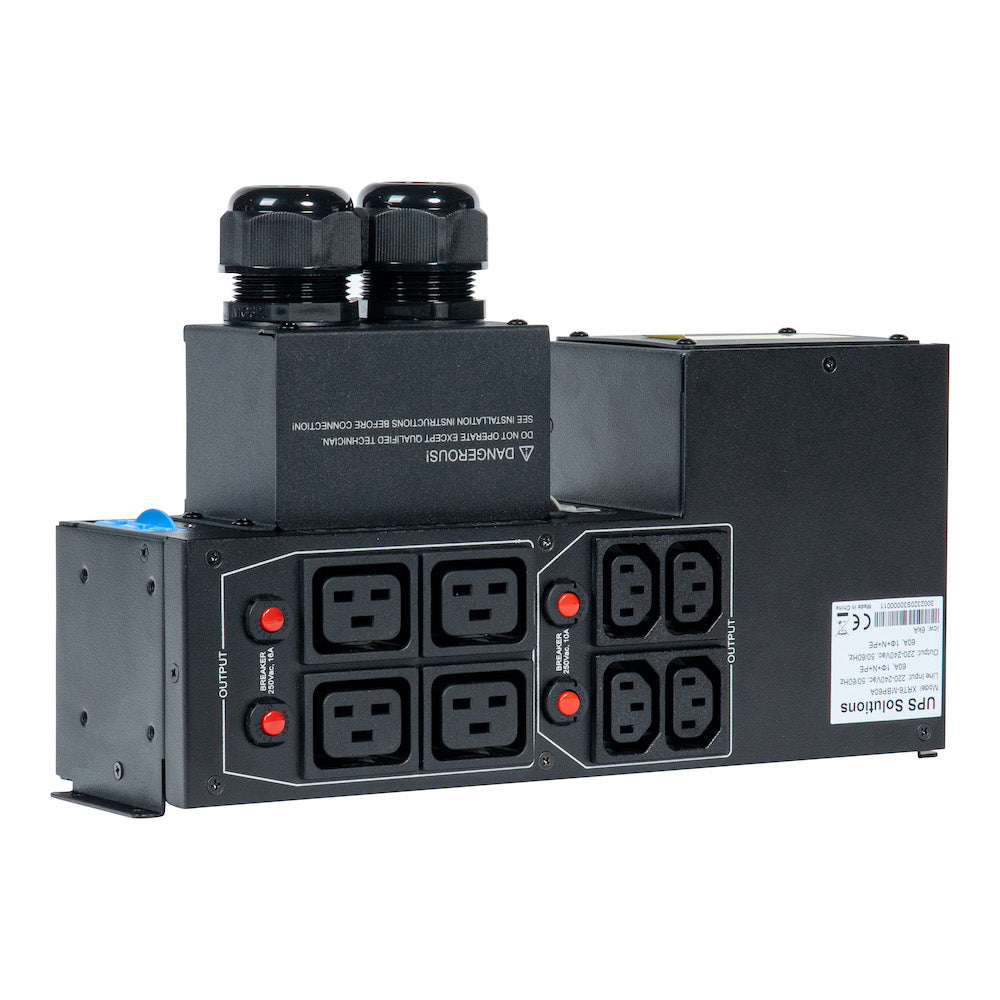

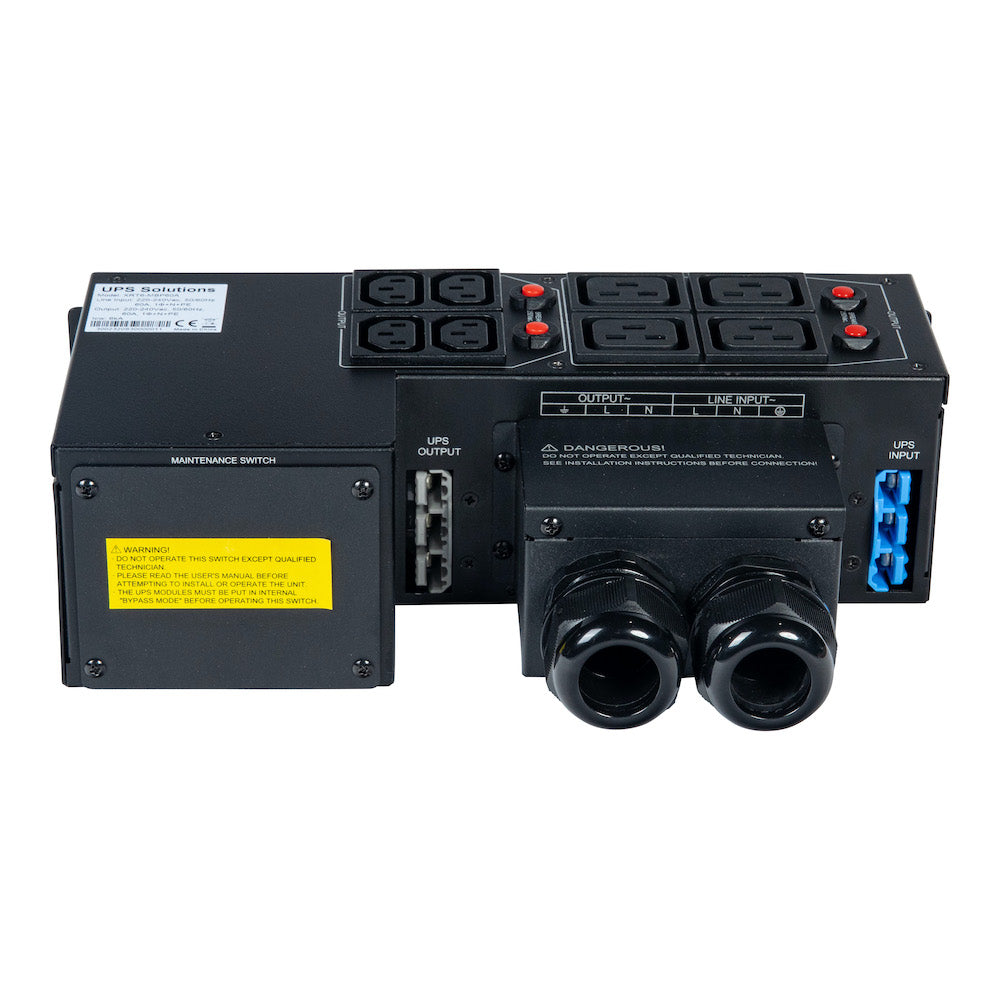

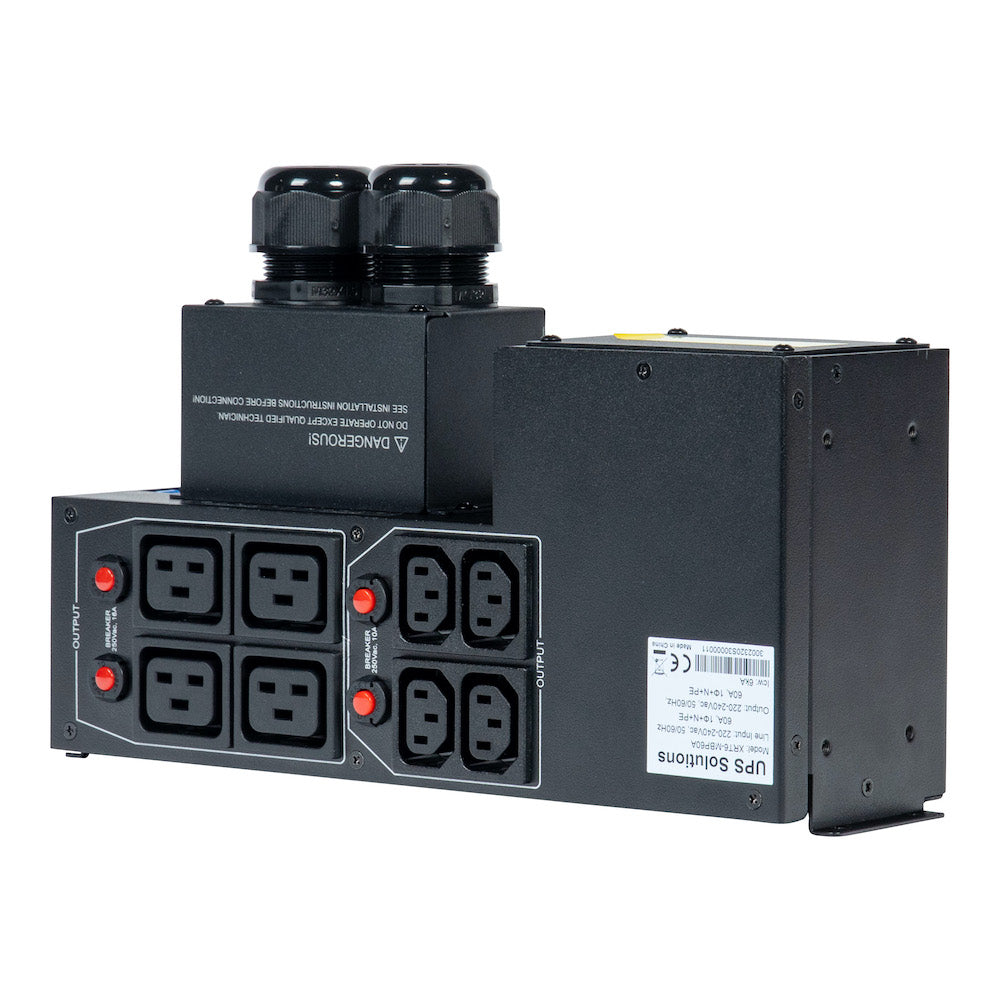

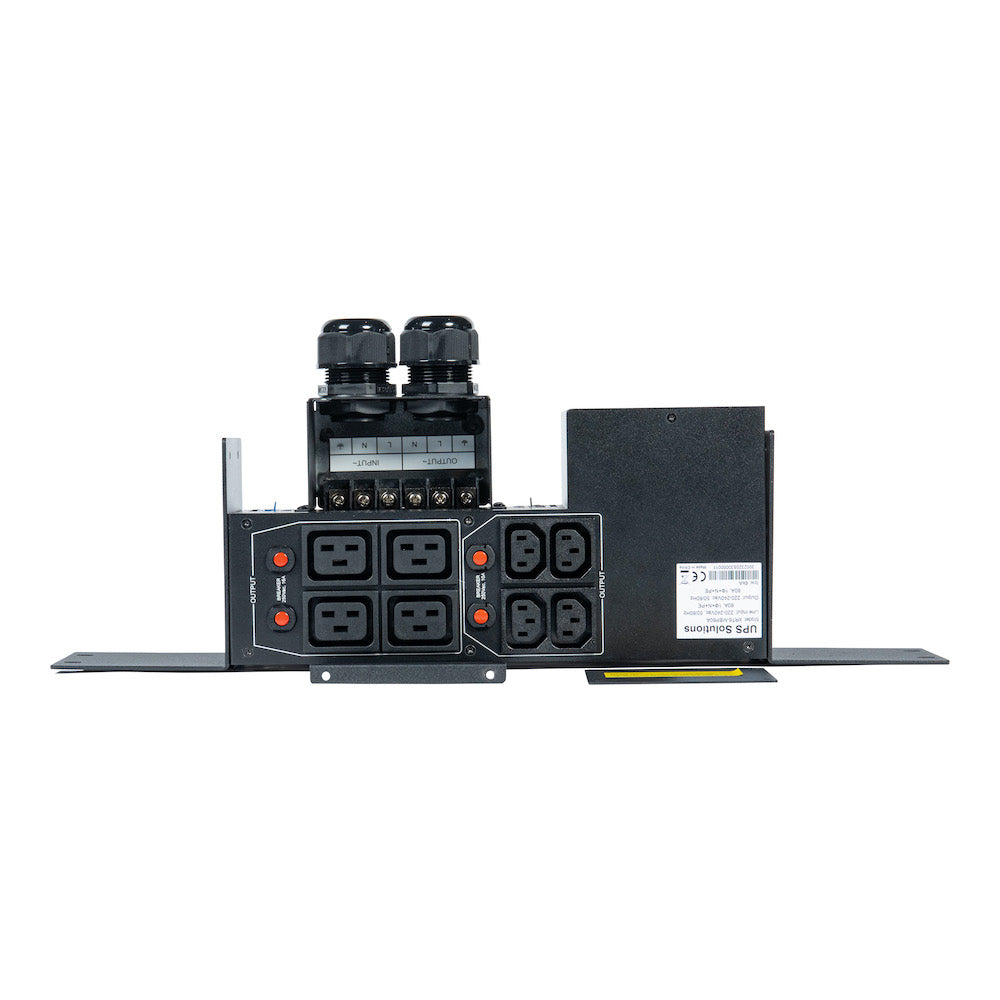

Output Terminal Block x1, 4 × IEC C13, 4 × IEC C19
Runtime Approx. 16 mins @ 50% load (extendable with EBMs)
Efficiency High-efficiency continuous operation
Protection Surge, blackout, brownout, sag, and noise interference
Power Protection Issues Protects against 10 out of 10 main power issues
Physical Specifications
UPS Dimensions (W×H×D) 440 × 135 × 490 mm (3U)

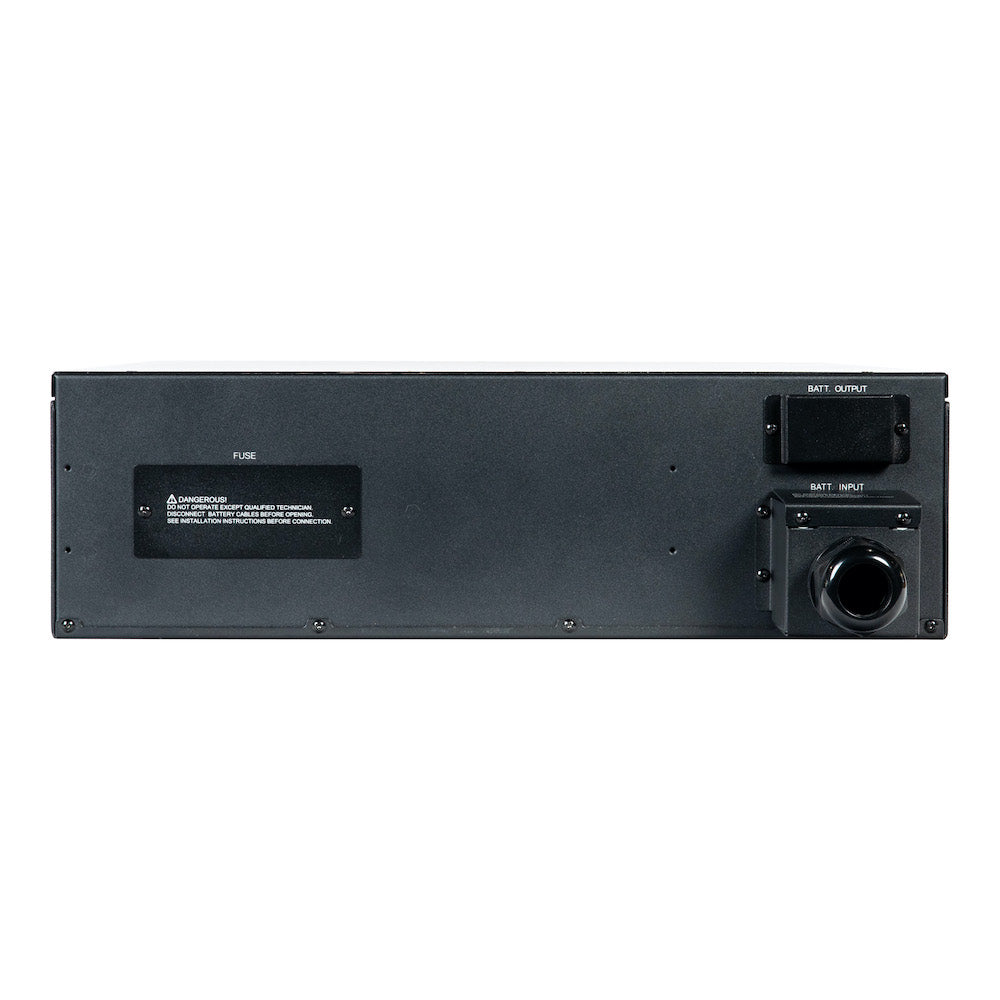

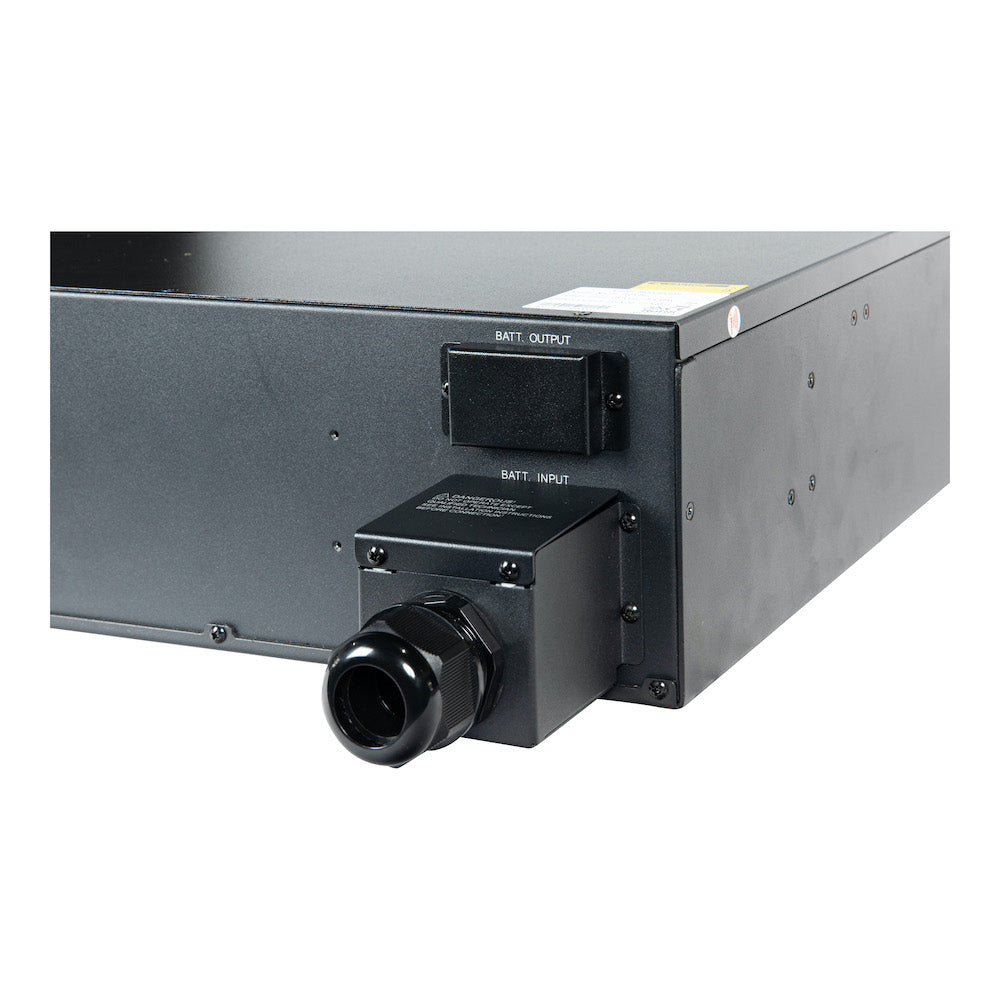

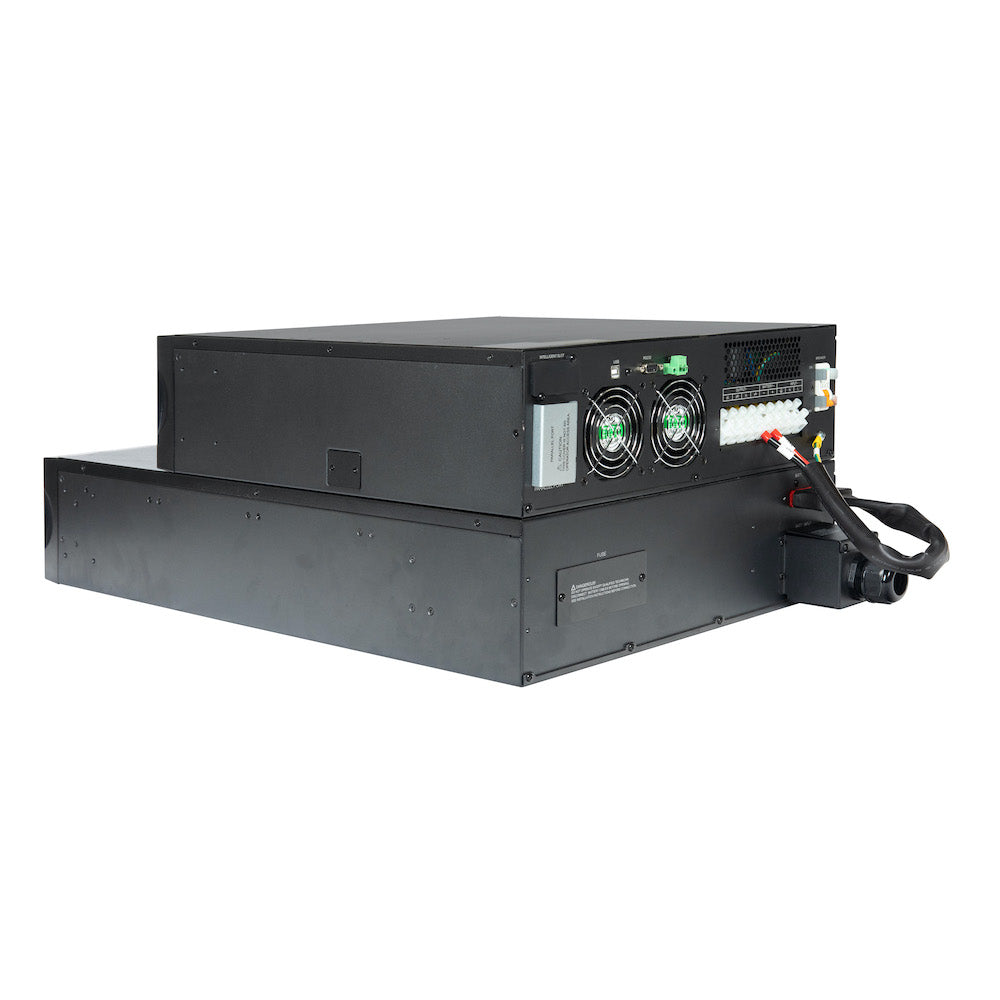

Battery Module Dimensions (W×H×D) 440 × 130 × 790 mm (3U)

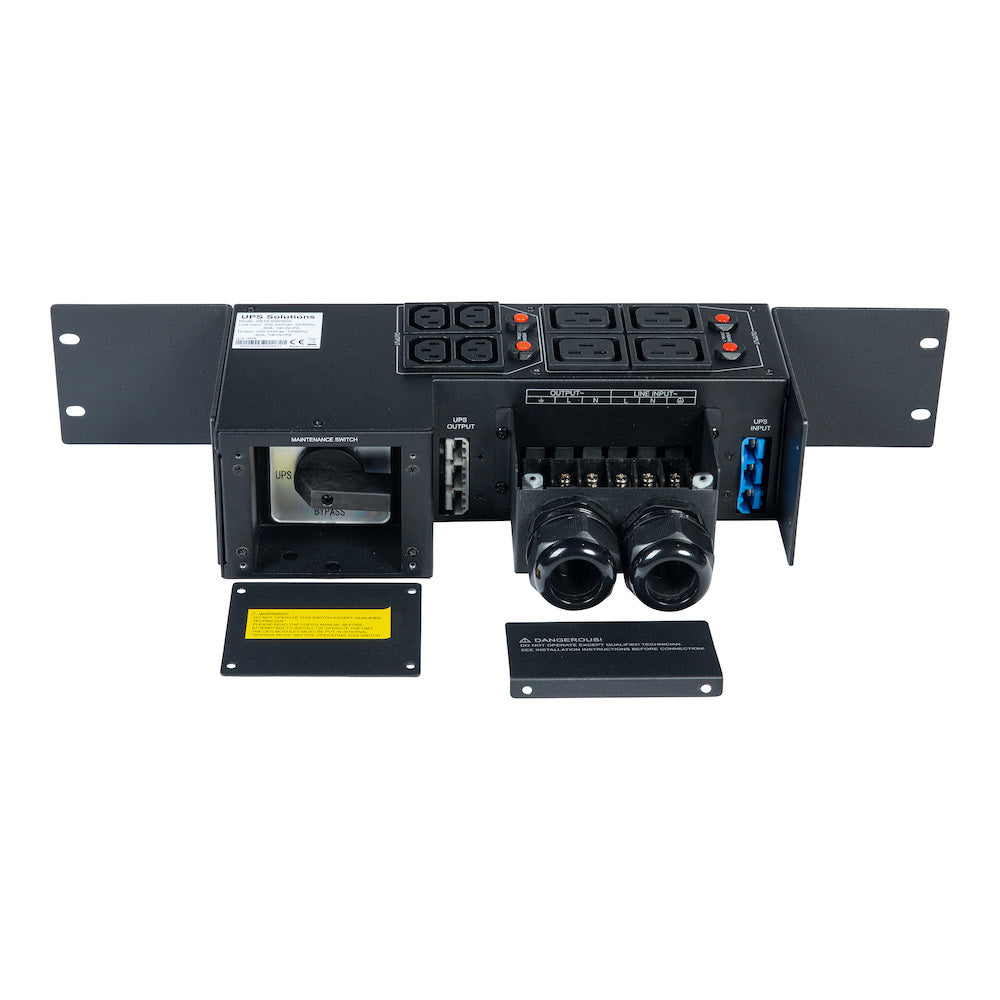

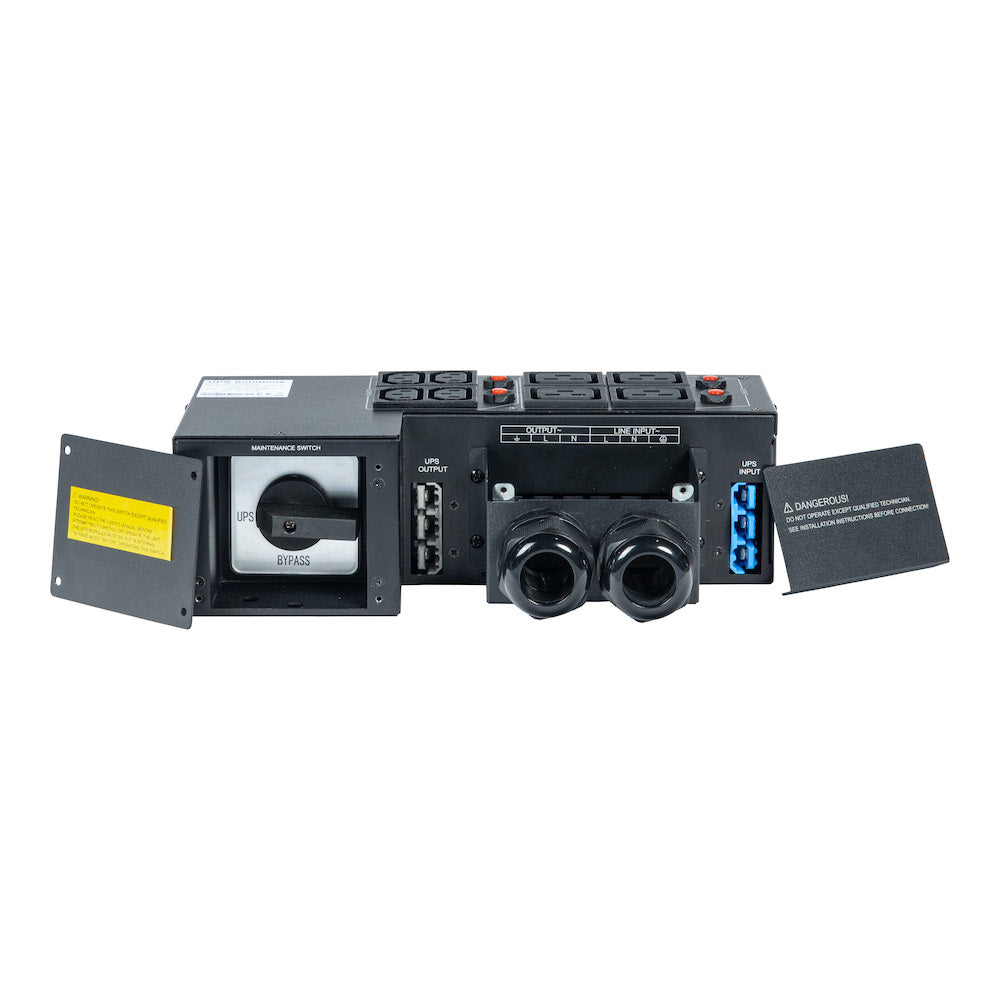

Installation Clearance (W×H×D) 440 × 265 × 900 mm (UPS + Battery + Bypass Panel + Cable Allowance)
Noise Level < 60 dB
Included in the Box
Included Item UPS Unit
Included Item External Surge Protection Device
Included Item IEC and Power Cables
Included Item Tower Stands
Included Item Rackmount Rails
Included Item Hardware, Software & Manuals
Included Item Cable Ties
Features & Benefits
Long Life Batteries 10-year design life for reduced maintenance
Cost Reduction Fewer battery replacements and lower lifetime cost
Fire Retardant Design Up to 2 hours fireproof for enhanced safety
Warranty & Support
Labour Warranty Onsite fault response or repair within 100KM of CBD Metro after remote diagnosis

Documents

UPS Solutions XRT6 Brochure pdf

Contact UPS Solutions

For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing sales@upss.com.au or calling 1300 555 992.
