Description
COMPLETE XRT6 PACKAGE
Includes 10-Year Design Life Battery, SNMP Network Card, Surge Protection Device + 5-Year Warranty.
UPS Solutions Deal: The above price includes a plug-n-play external Surge Protection Device (View Details) that provides extra surge protection to both the UPS and valuable connected devices, plus a 5 Year Warranty on the UPS and Batteries.

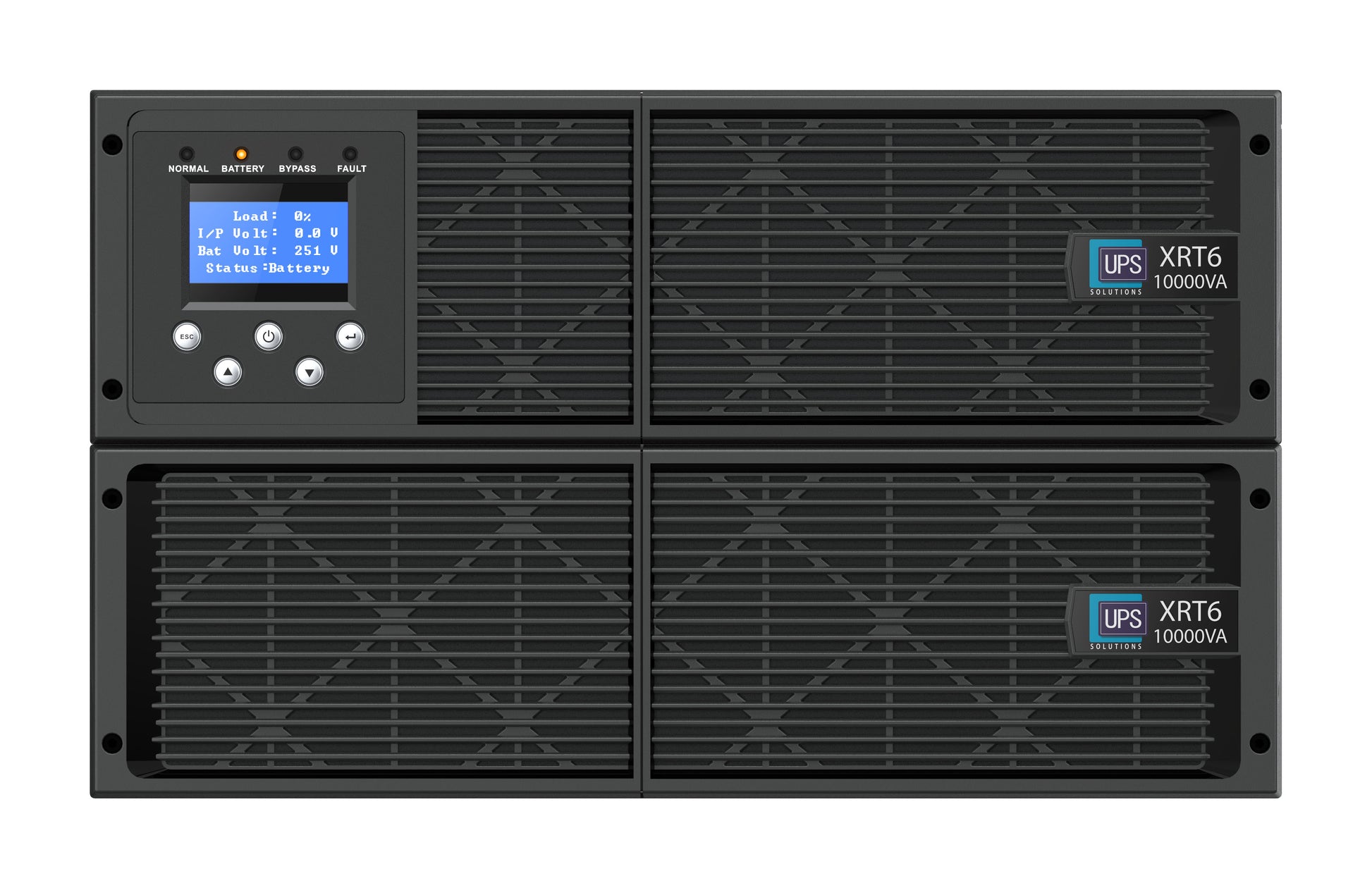

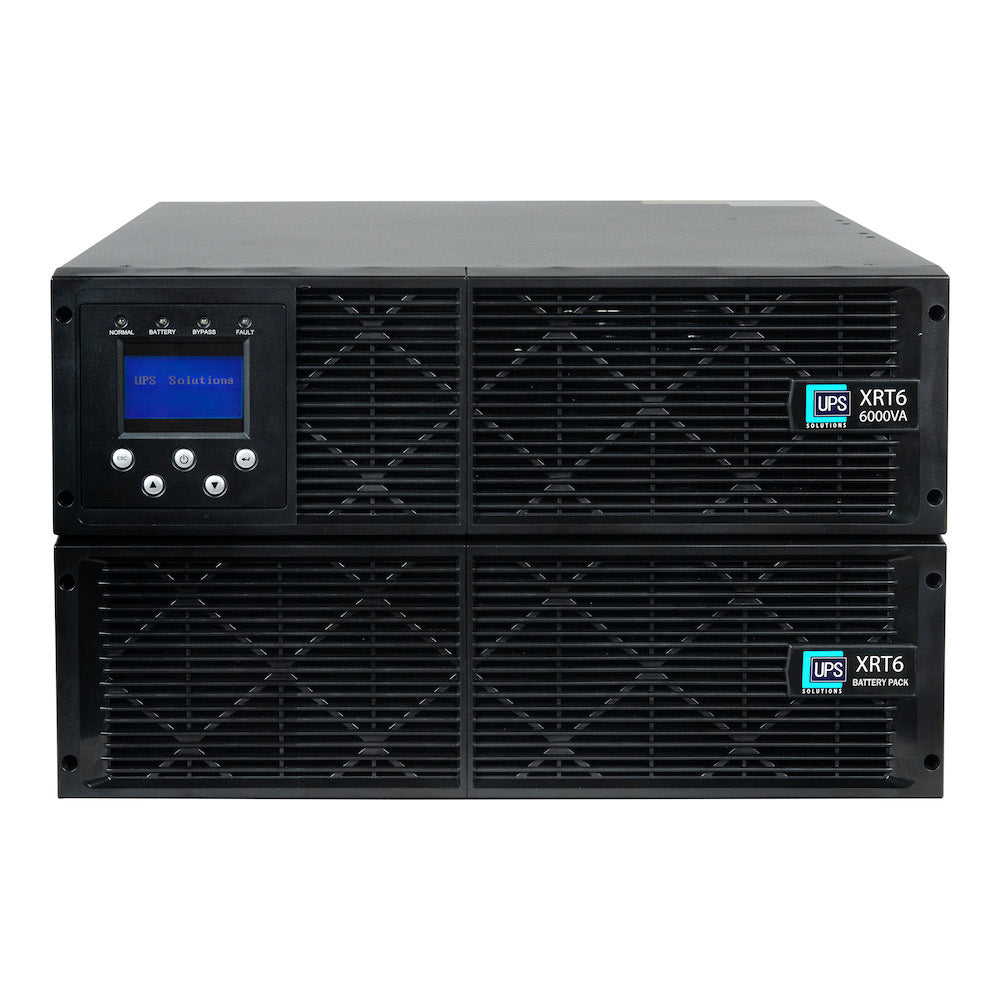

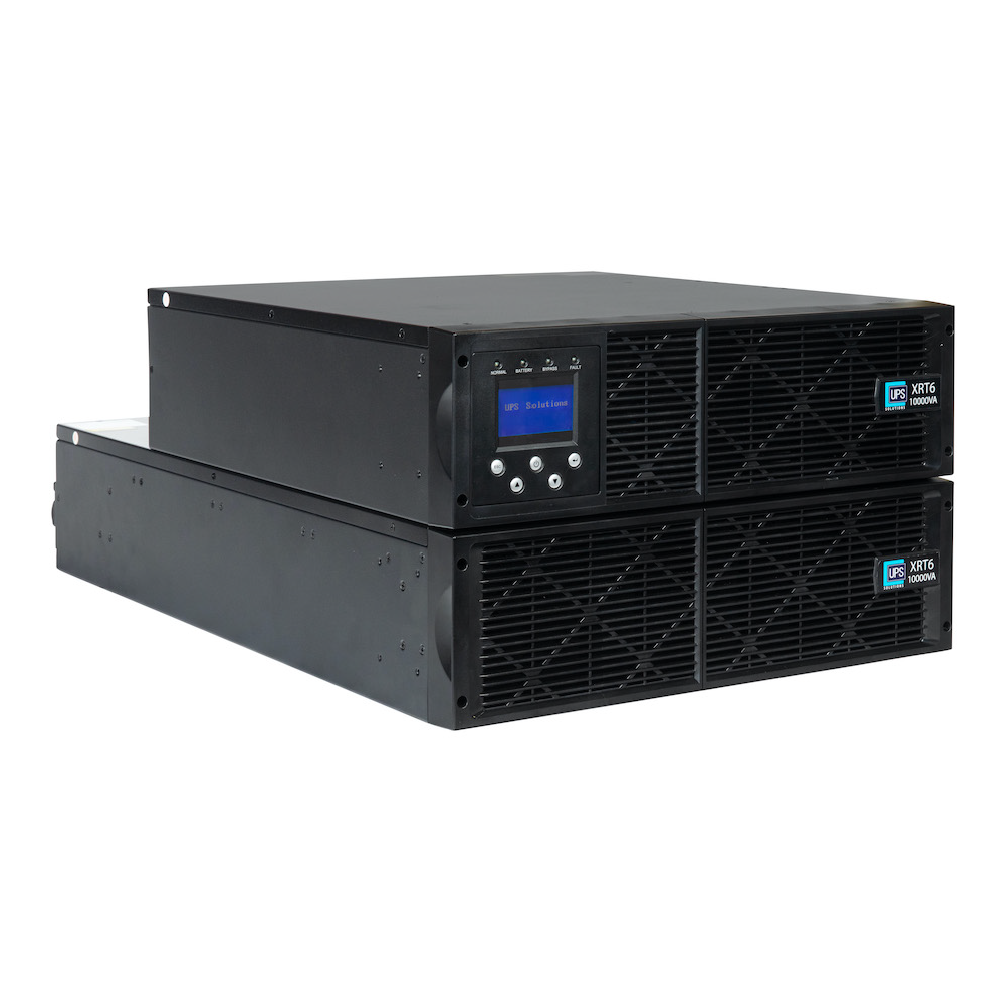

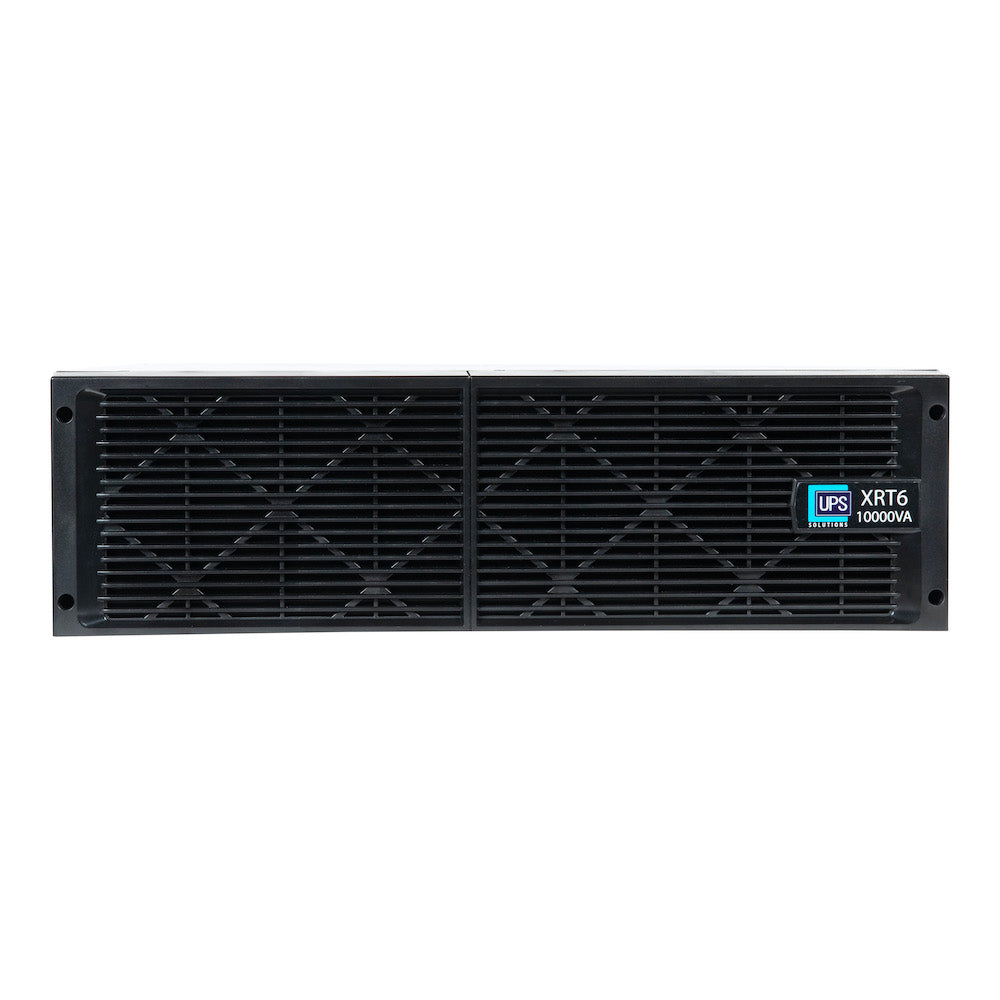

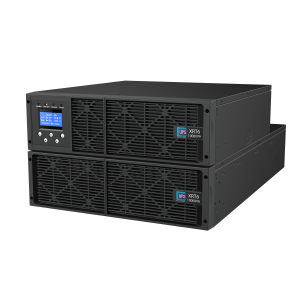

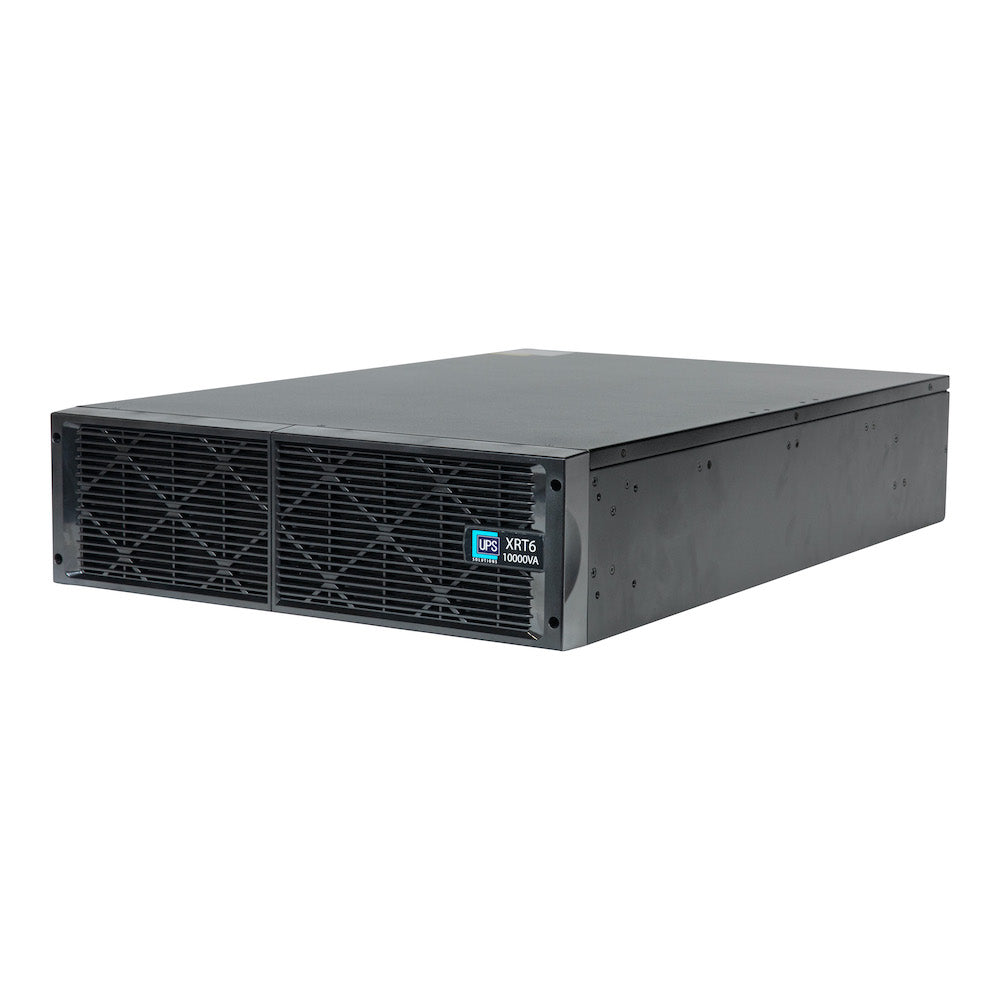

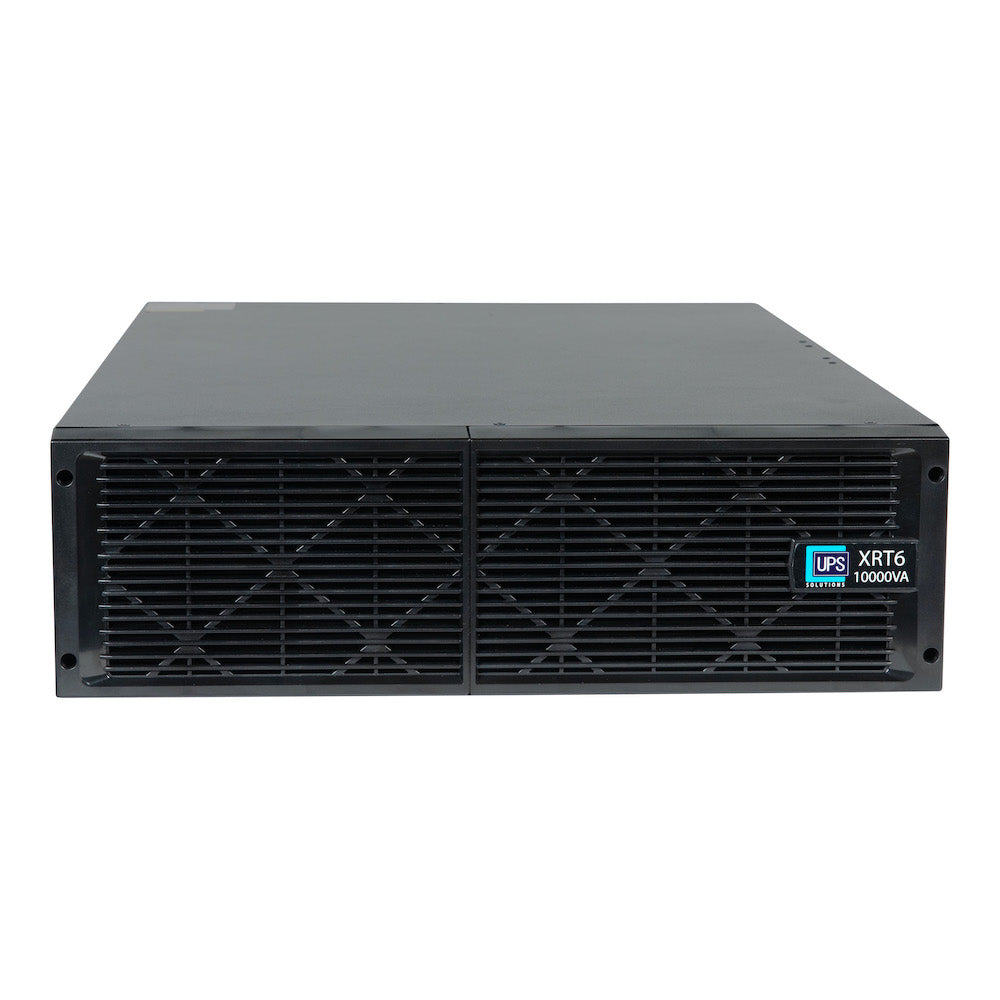

The XRT6 is a true on-line double-conversion UPS delivering continuous, high-quality 230 V AC power with zero transfer time. It protects against 10 out of 10 power issues — including blackouts, brownouts, sags, surges, and noise interference — ensuring uninterrupted performance for mission-critical systems. The XRT6 is the only UPS available in Australia with 10-year design-life batteries, setting a new benchmark for reliability and longevity.
Key Highlights:
- Capacity: 10 kVA / 9 kW
- Technology: Online Double-Conversion
- Battery Type: 10-Year Design-Life Lead Acid

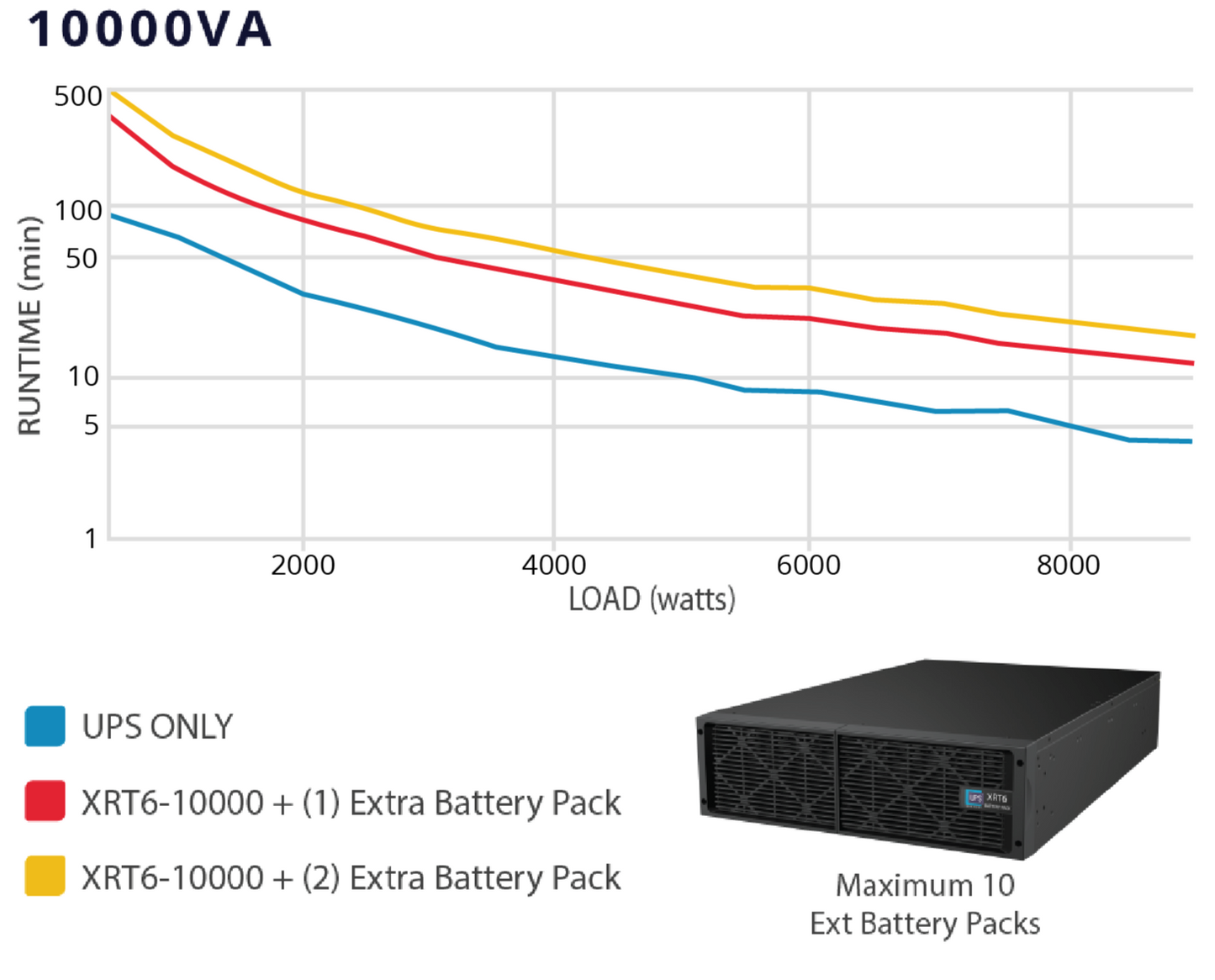

- Runtime: Approx. 16 mins @ 50 % load (View Runtime Chart)
- Communication: SNMP Card Included + USB

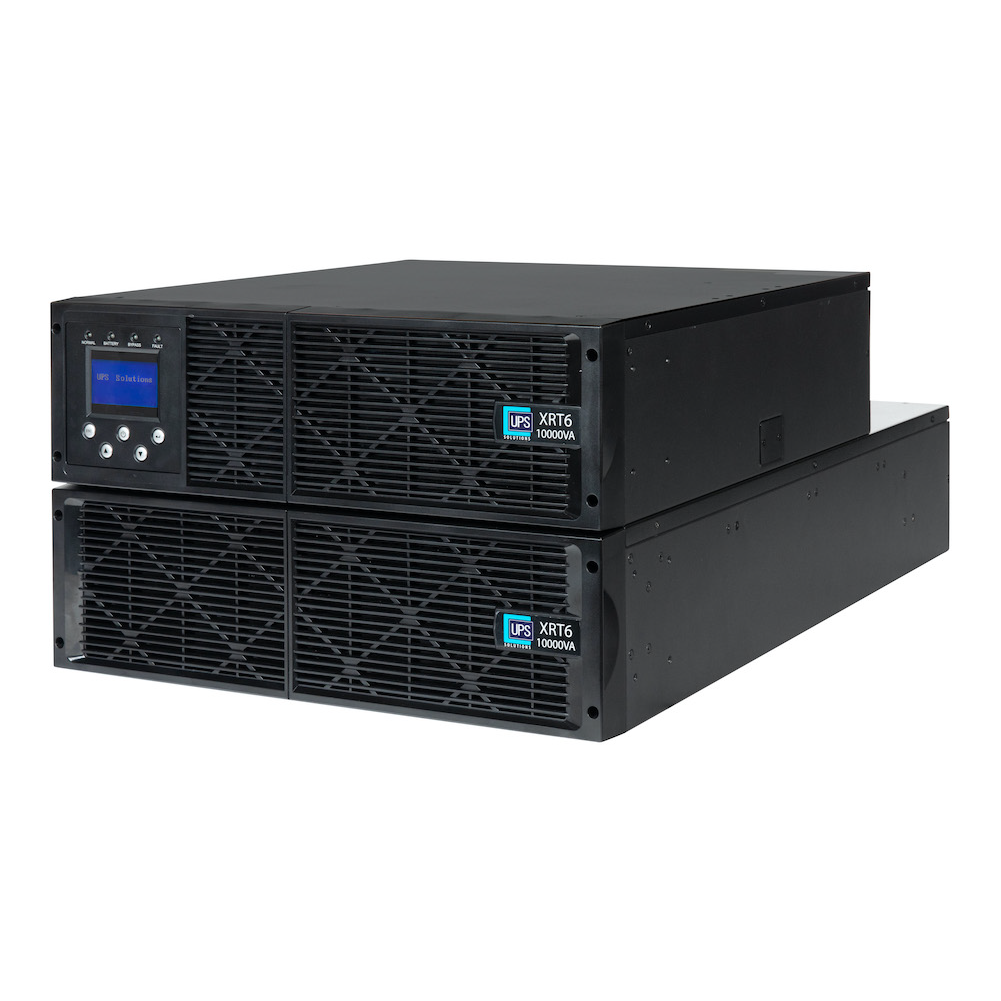

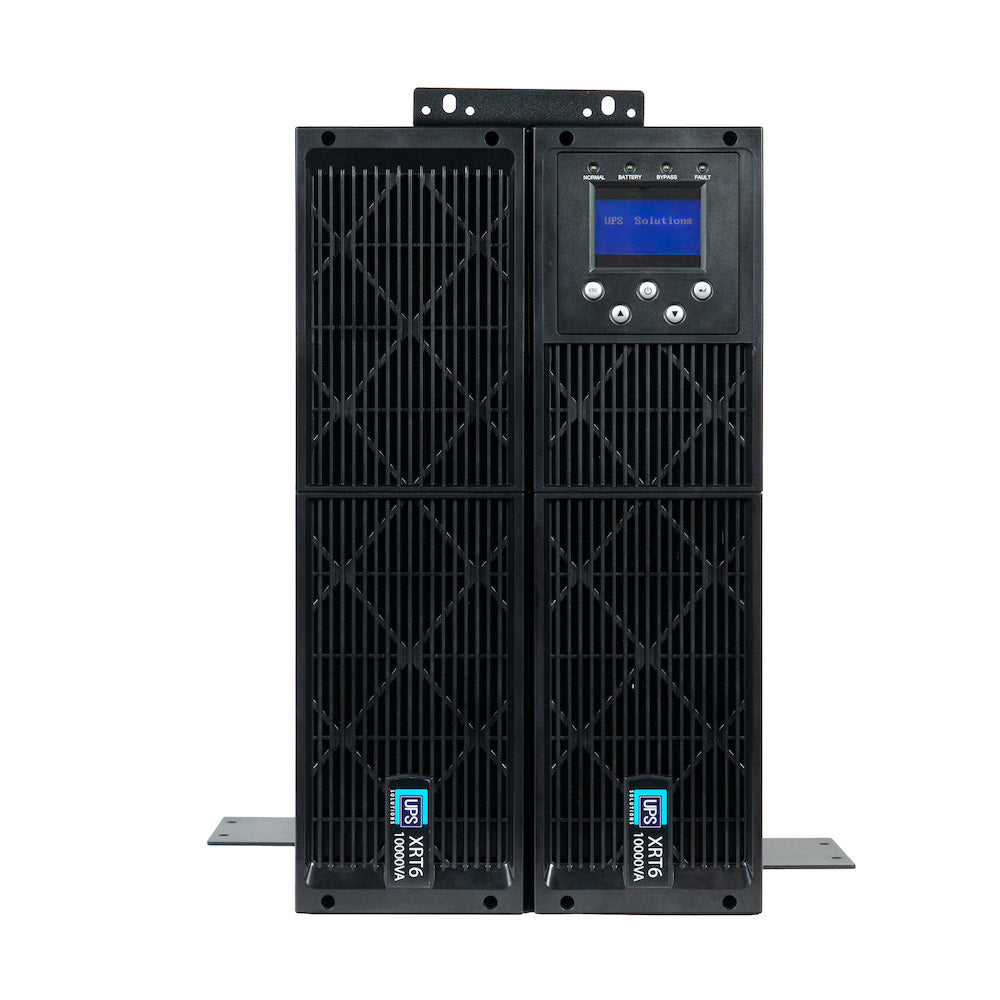

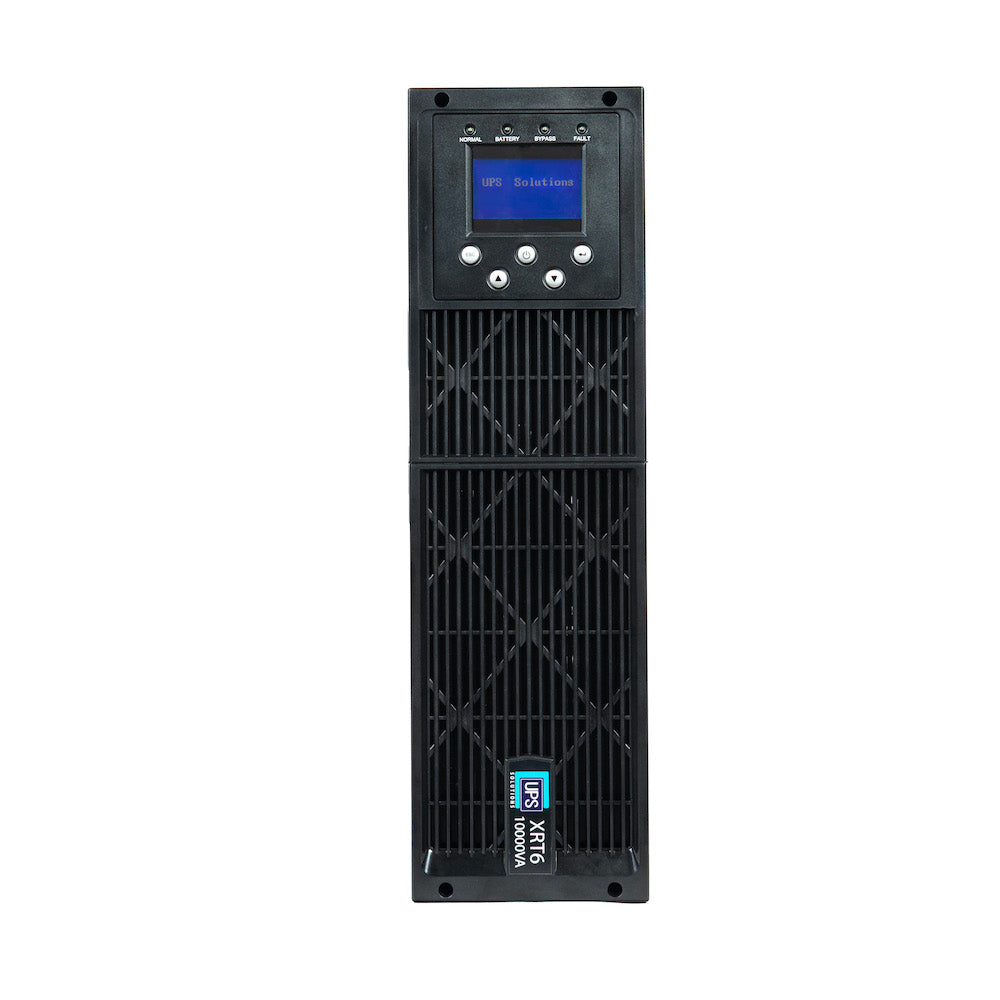

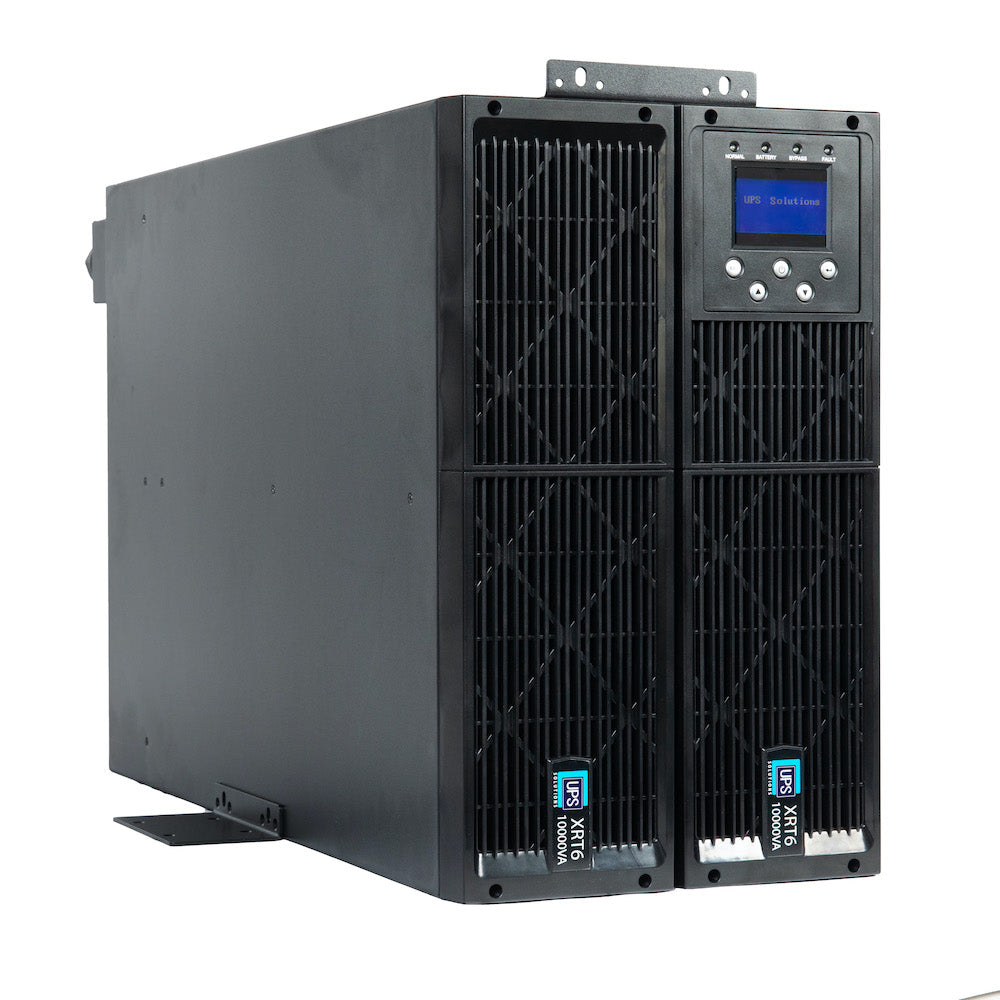

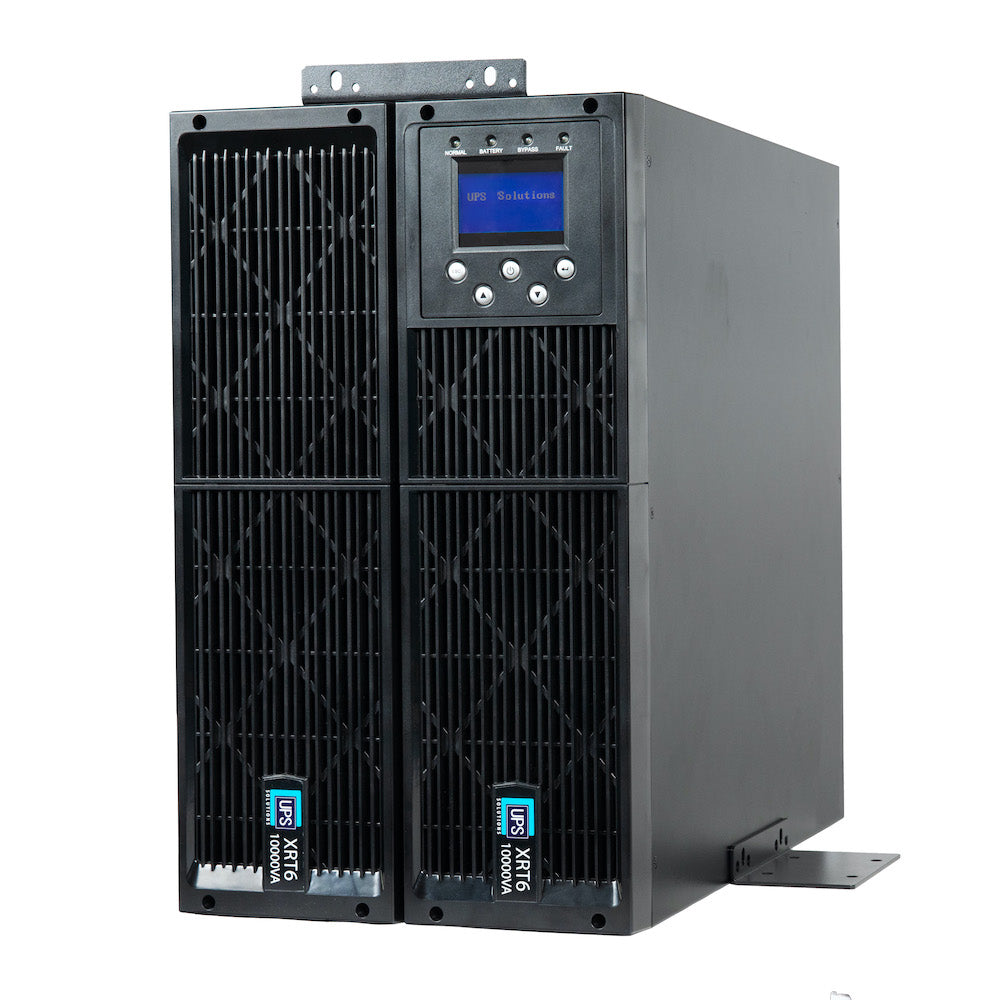

- Form Factor: Rack / Tower Convertible (3U)
- Warranty: 5 Years (UPS + Batteries)
- Part Number: XRT6-10000L
FEATURES:
• Long-Life Batteries – 10-Year Design Life
• Reduced Cost – Minimises battery replacements and lowers lifetime ownership costs
• Fire Retardant – Up to 2 hours fireproof for enhanced safety
• Plug-and-Play Surge Protection – Extra defence for both UPS and connected equipment
• Zero Transfer Time – Seamless power delivery for critical loads

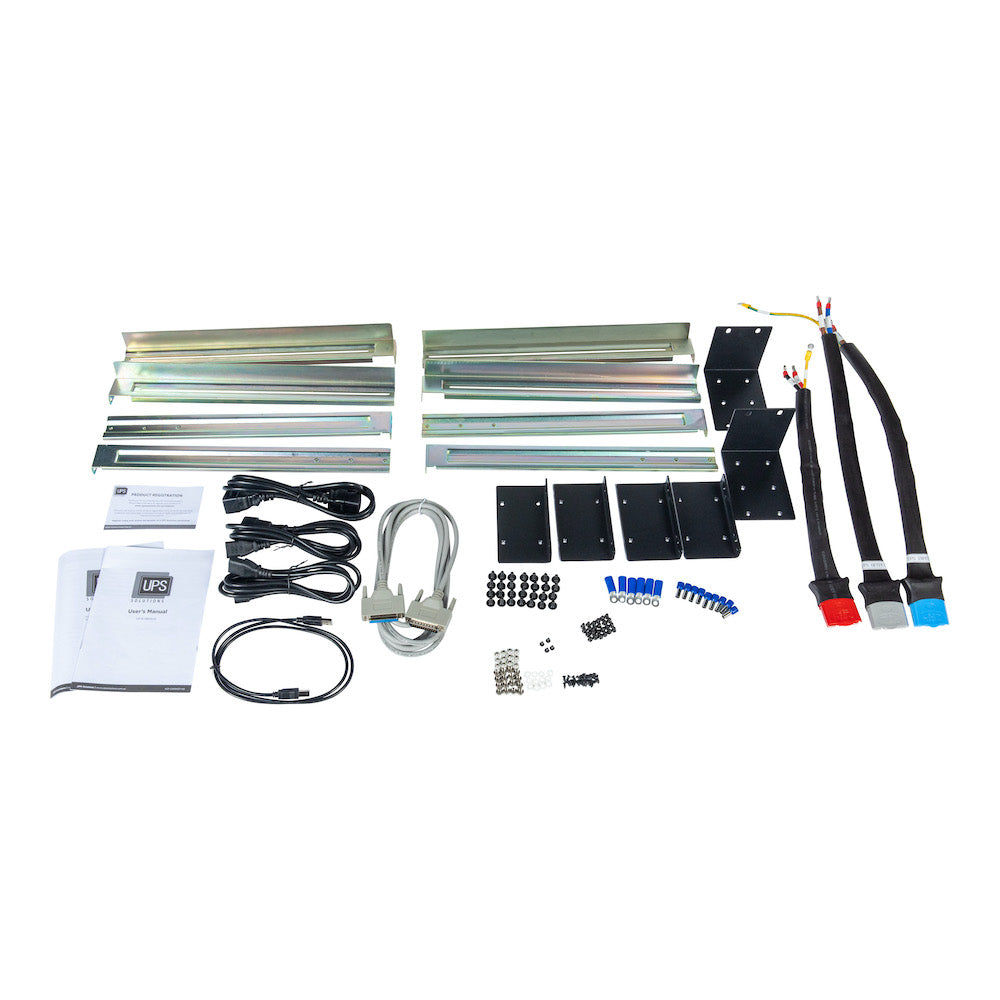

WHAT'S IN THE BOX?
✓ UPS Unit
✓ Surge Protection Device
✓ IEC and Power Cables
✓ Tower Stands
✓ Rackmount Rails
✓ Hardware, Software & Manuals
✓ Cables and Ties
LABOUR WARRANTY
Onsite fault response or repair within 100 km of CBD Metro after remote diagnosis.
Specifications
| Part Number | |
|---|---|
| Part Number | XRT6-10000L |
| General Features | |
| UPS Topology | Online Double Conversion |
| UPS Rating | 10kVA / 9kW |
| Wiring Type | Single Phase |
| Form Factor | Rack / Tower Convertible (3U) |
| Battery Type | Lead-acid (10-year design life) |

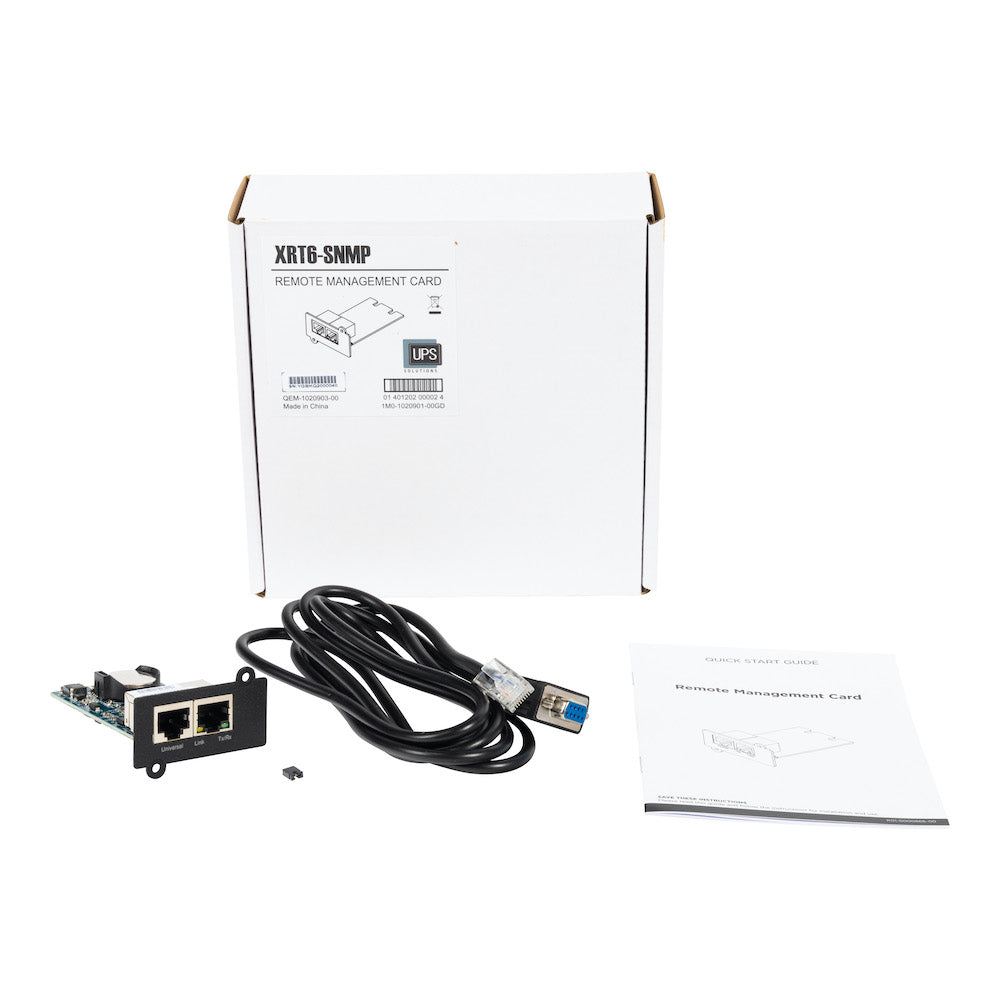

| Communication Management | SNMP Card (included), USB |
| UPS Technology | Double-conversion Online |
| Warranty | 5 Years (UPS + Batteries) |
| Electrical Specifications | |

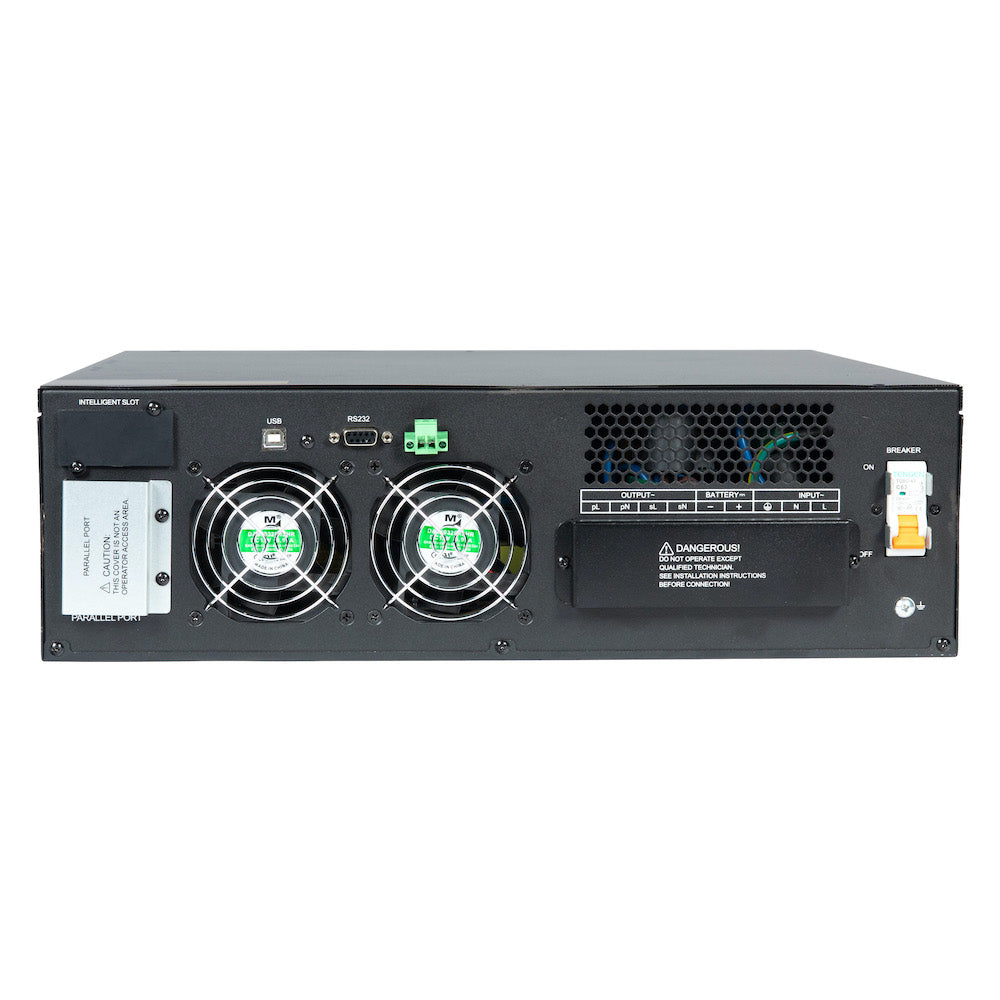

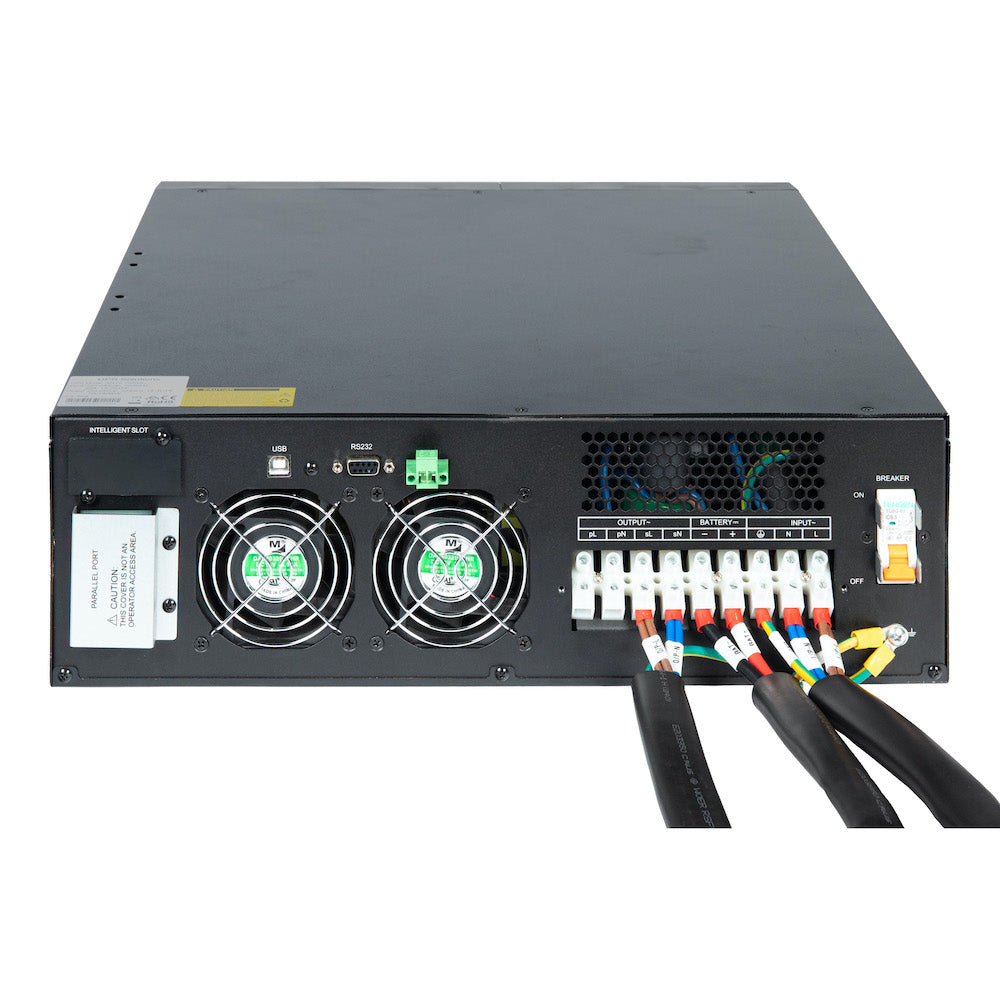

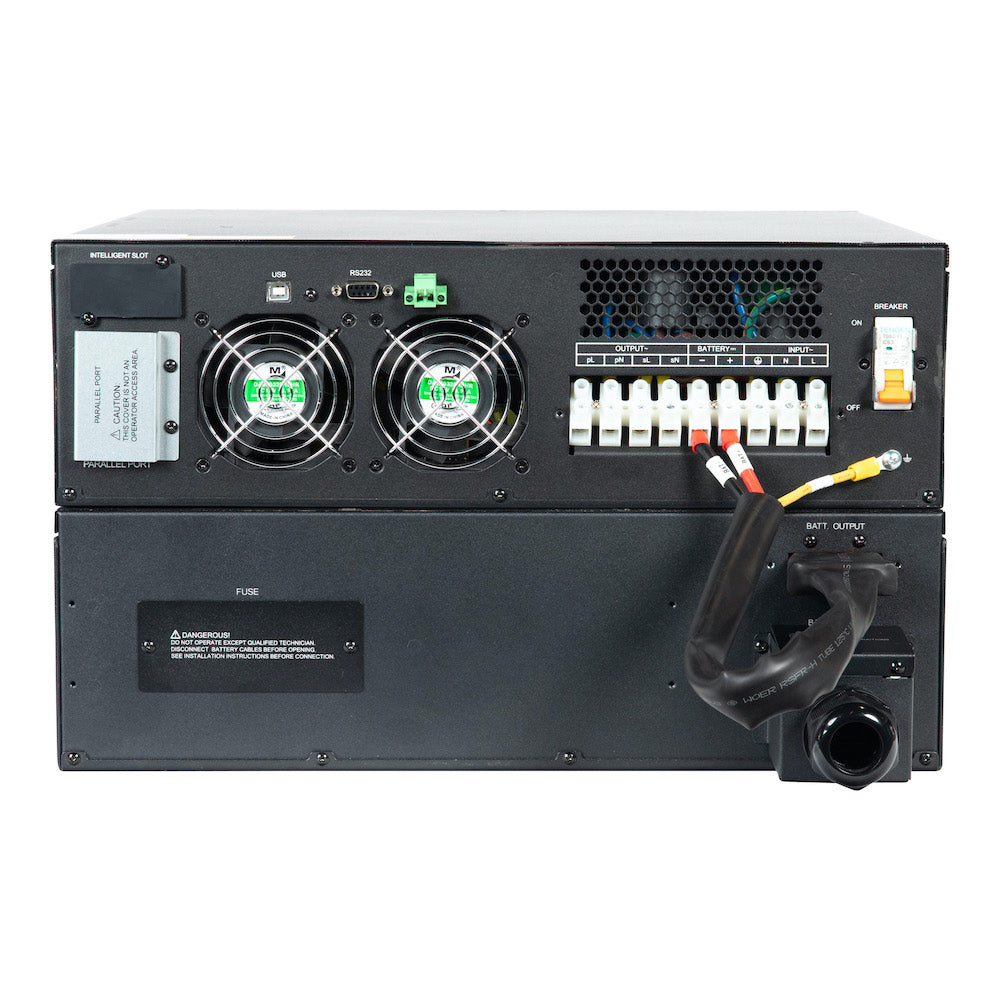

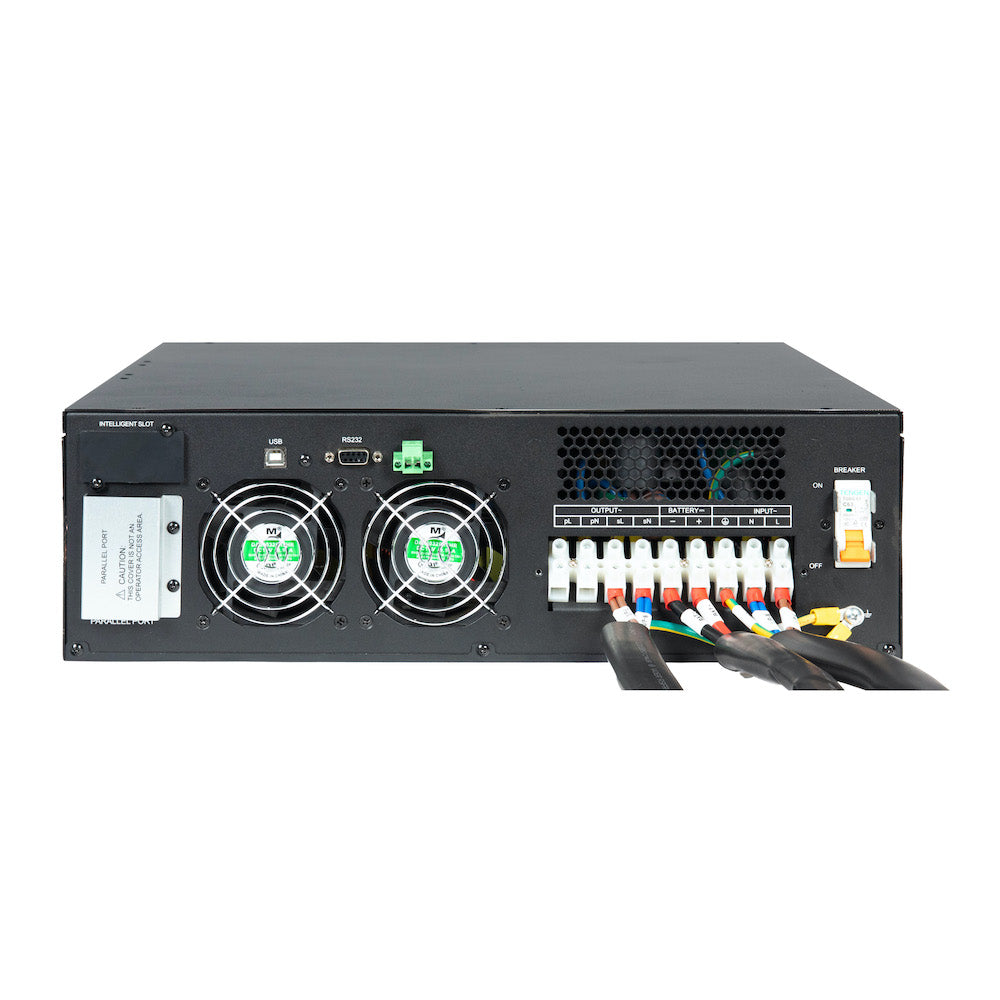

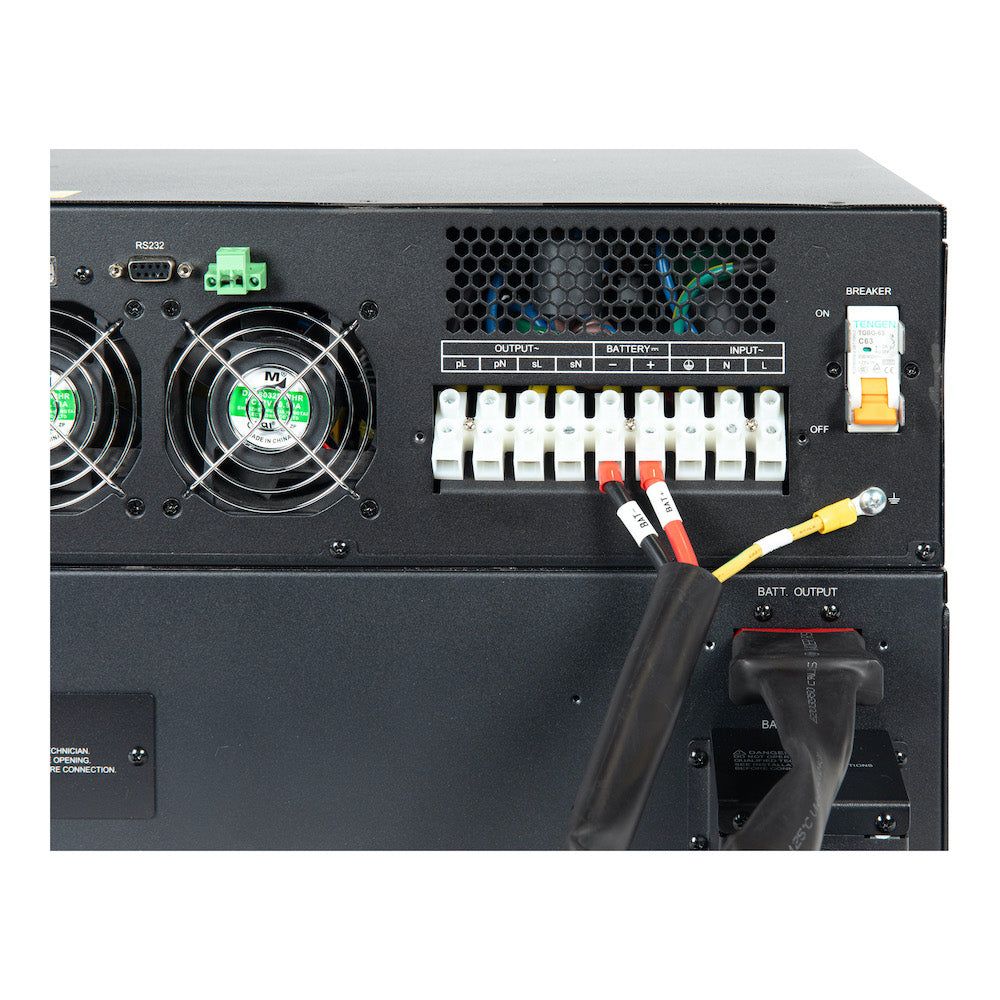

| Input | 63 Amp, Hardware Terminal Block |

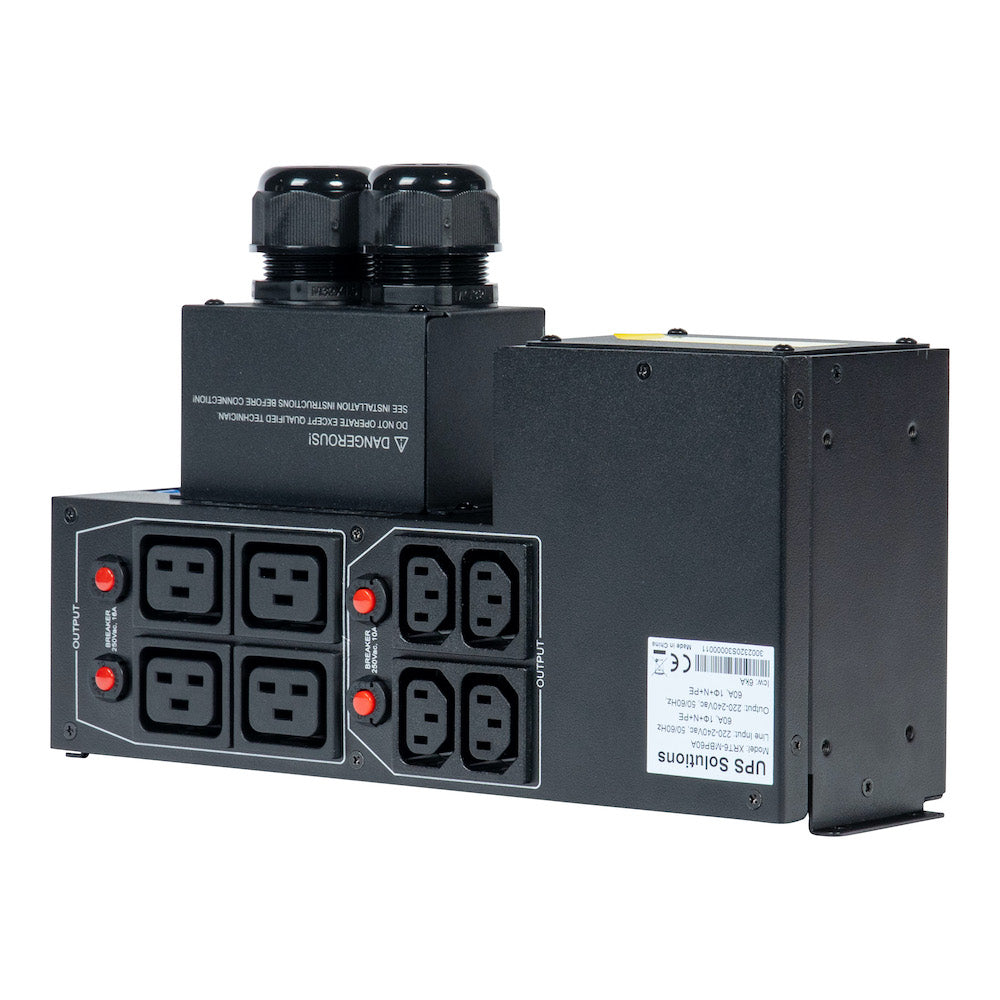

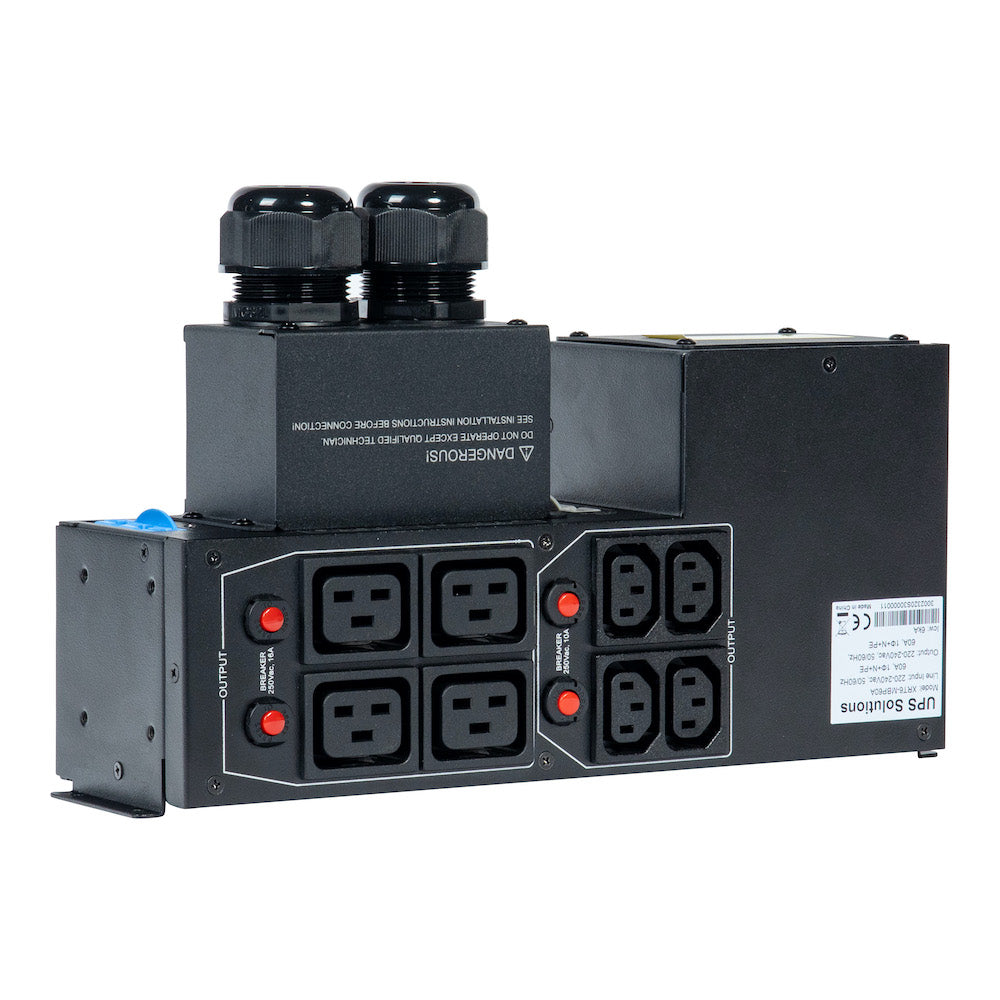

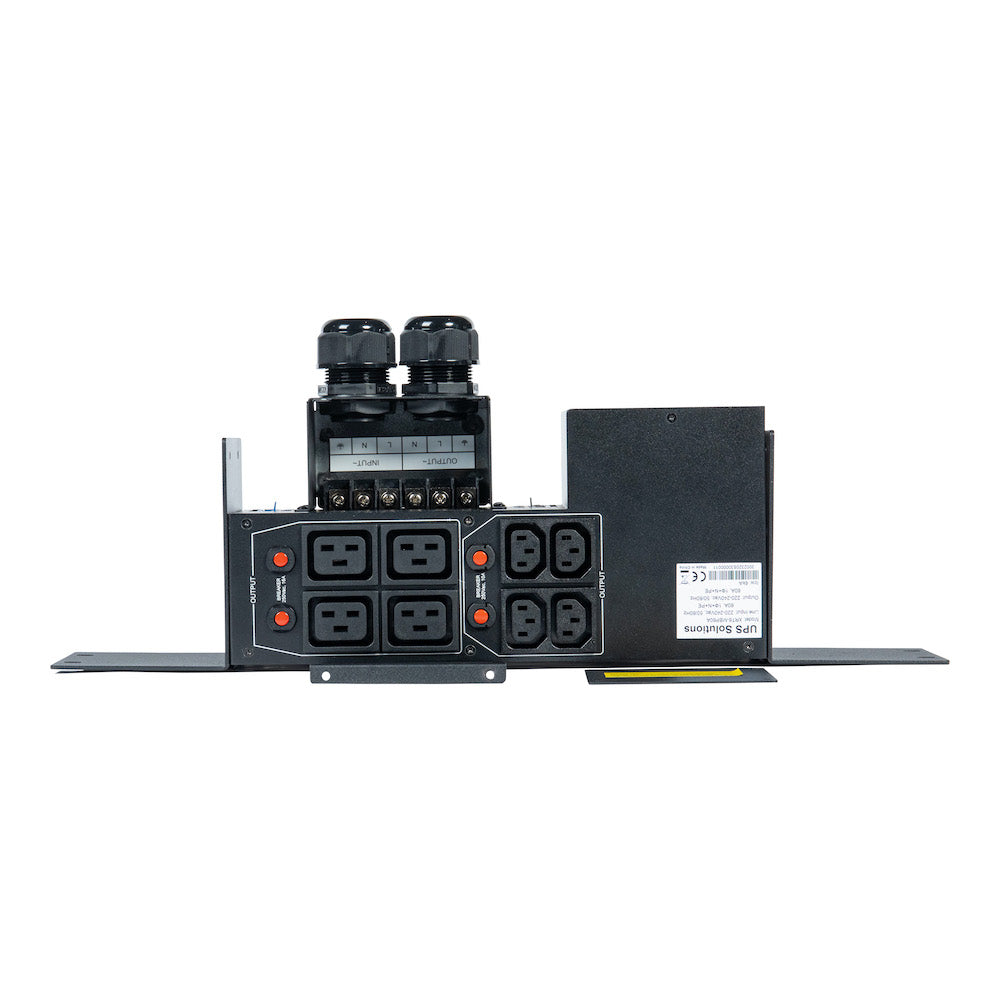

| Output | Terminal Block x1, IEC C13 x4, IEC C19 x4 |
| Runtime | Approx. 16 mins @ 50% load (extendable with EBMs) |
| Efficiency | High-efficiency continuous operation |
| Protection | Surge, blackout, brownout, sag, and noise interference |
| Power Protection Issues | Protects against 10 out of 10 main power issues |
| Physical Specifications | |
| UPS Dimensions (W×H×D) | 440 × 135 × 490 mm (3U) |

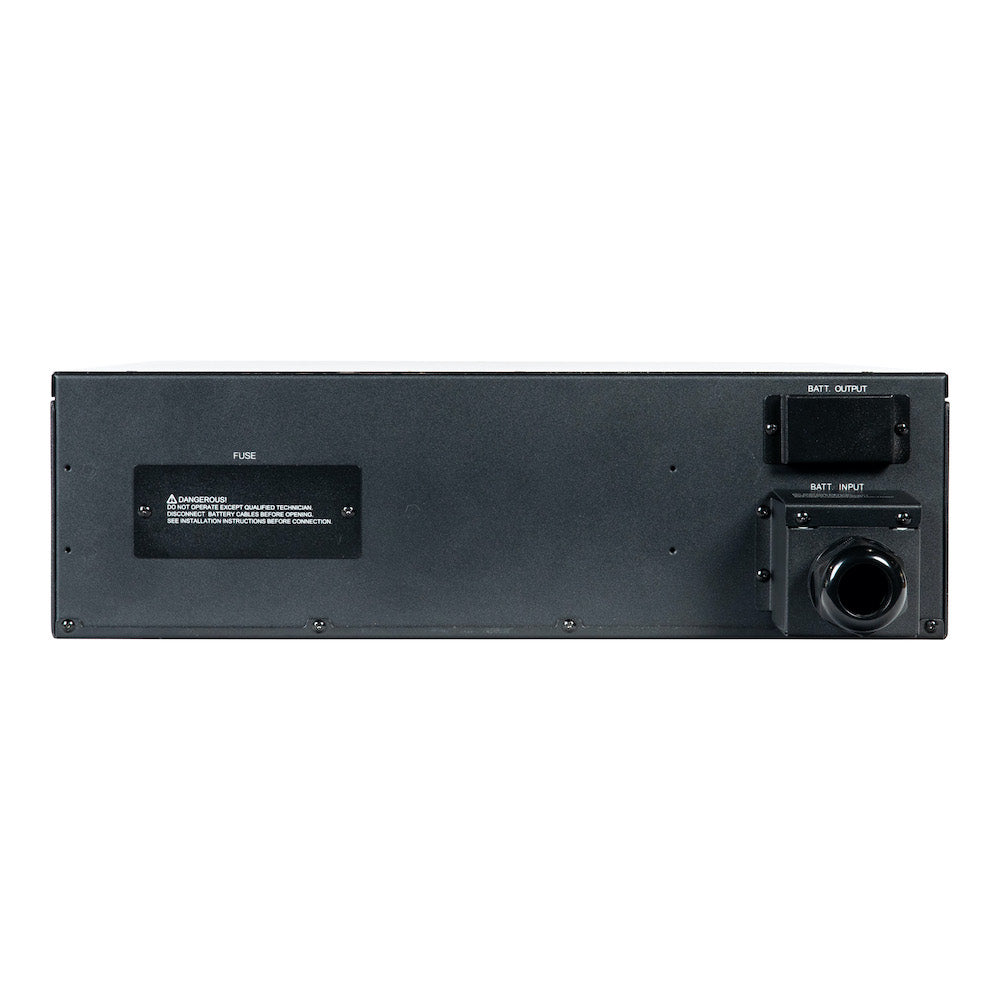

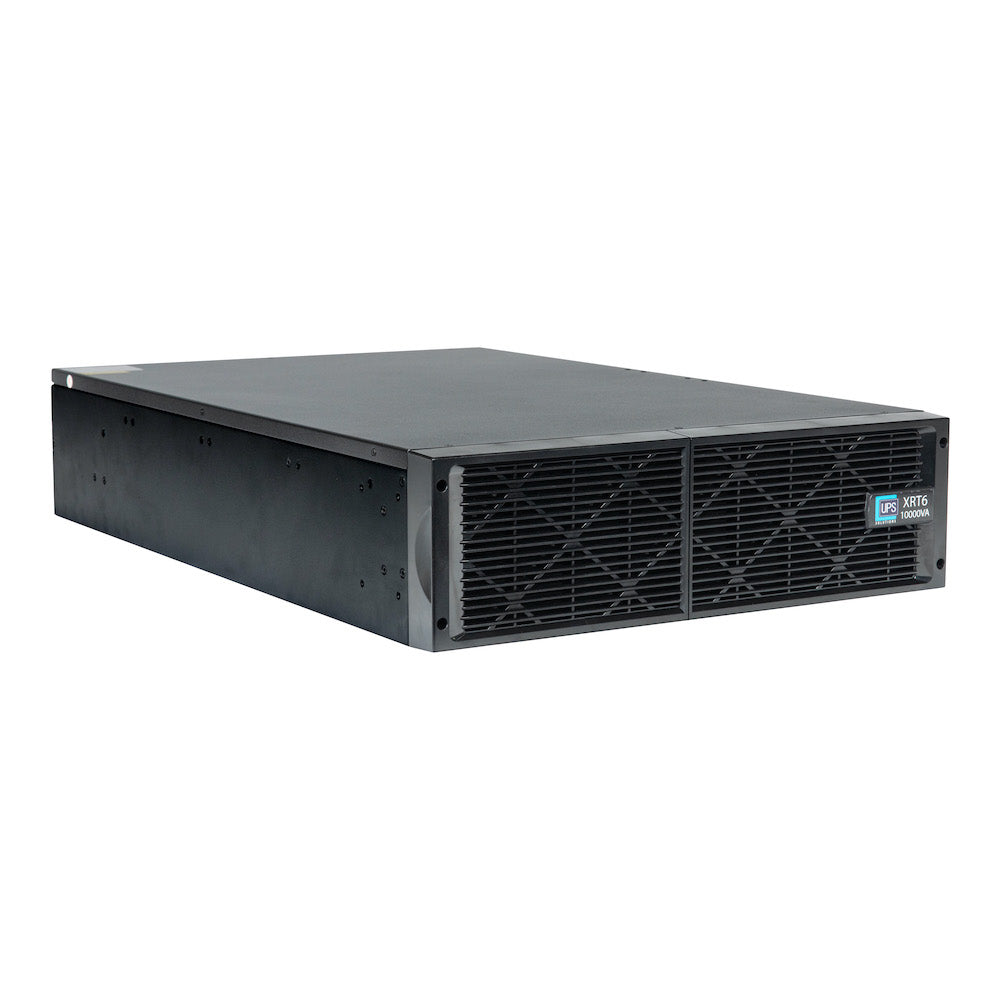

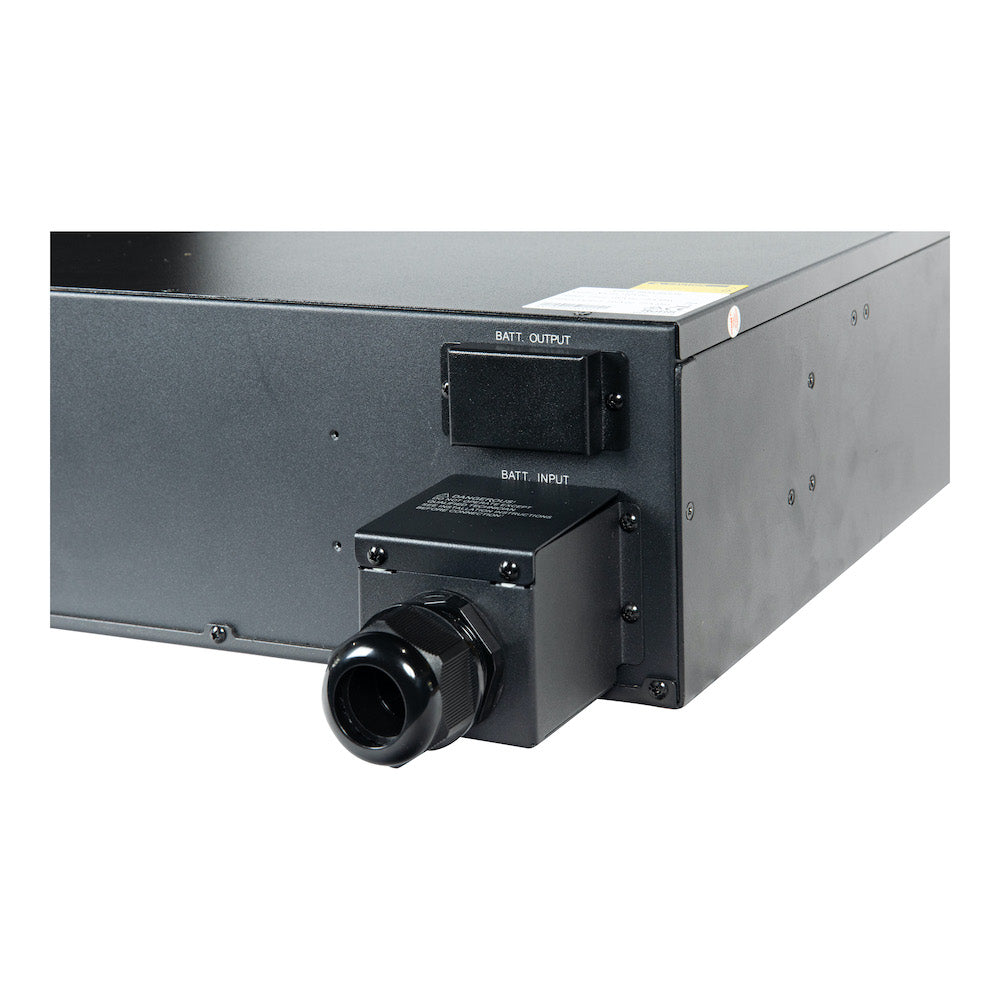

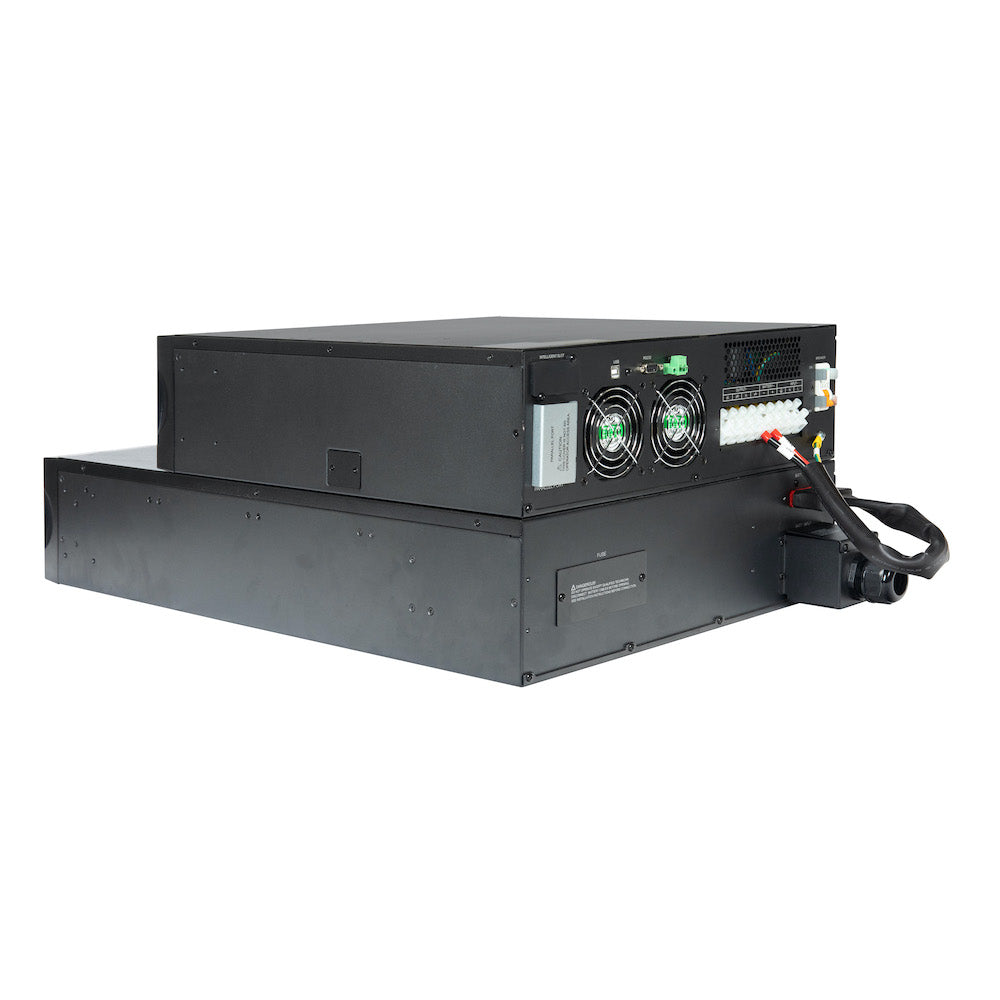

| Battery Module Dimensions (W×H×D) | 440 × 130 × 790 mm (3U) |

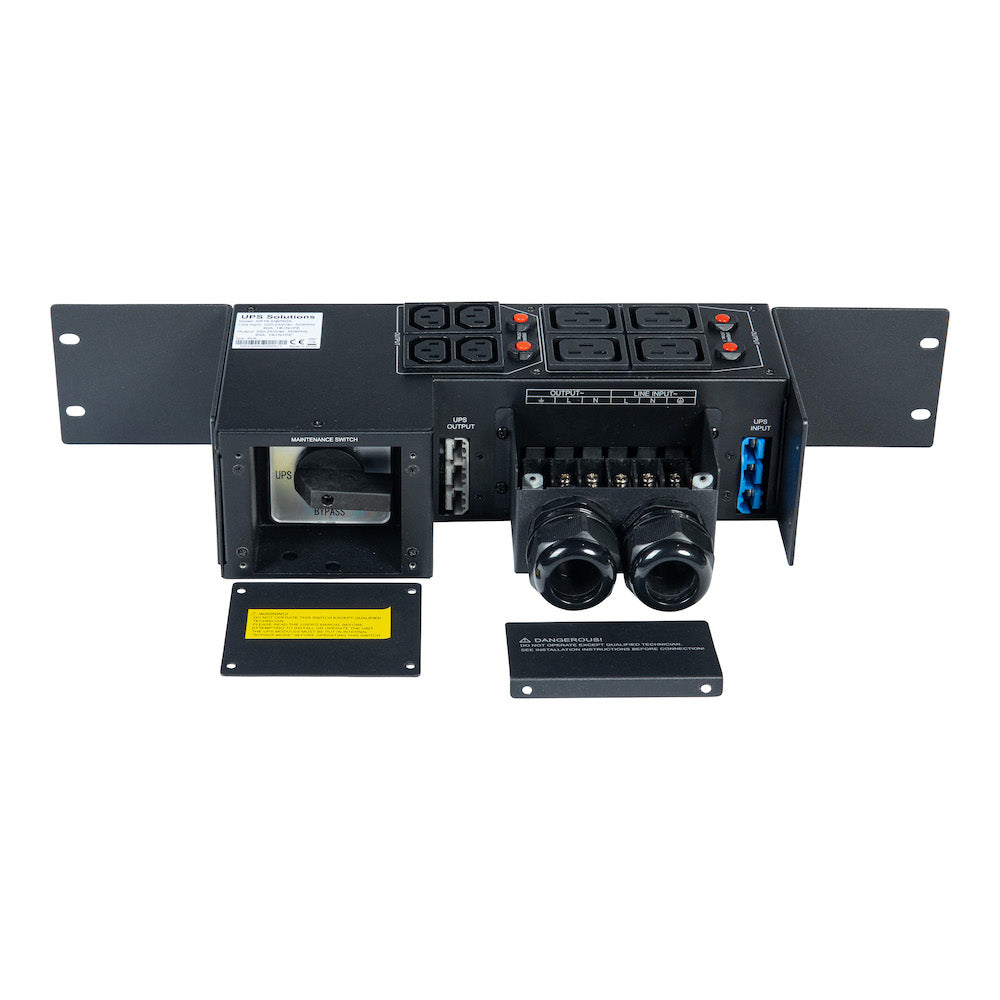

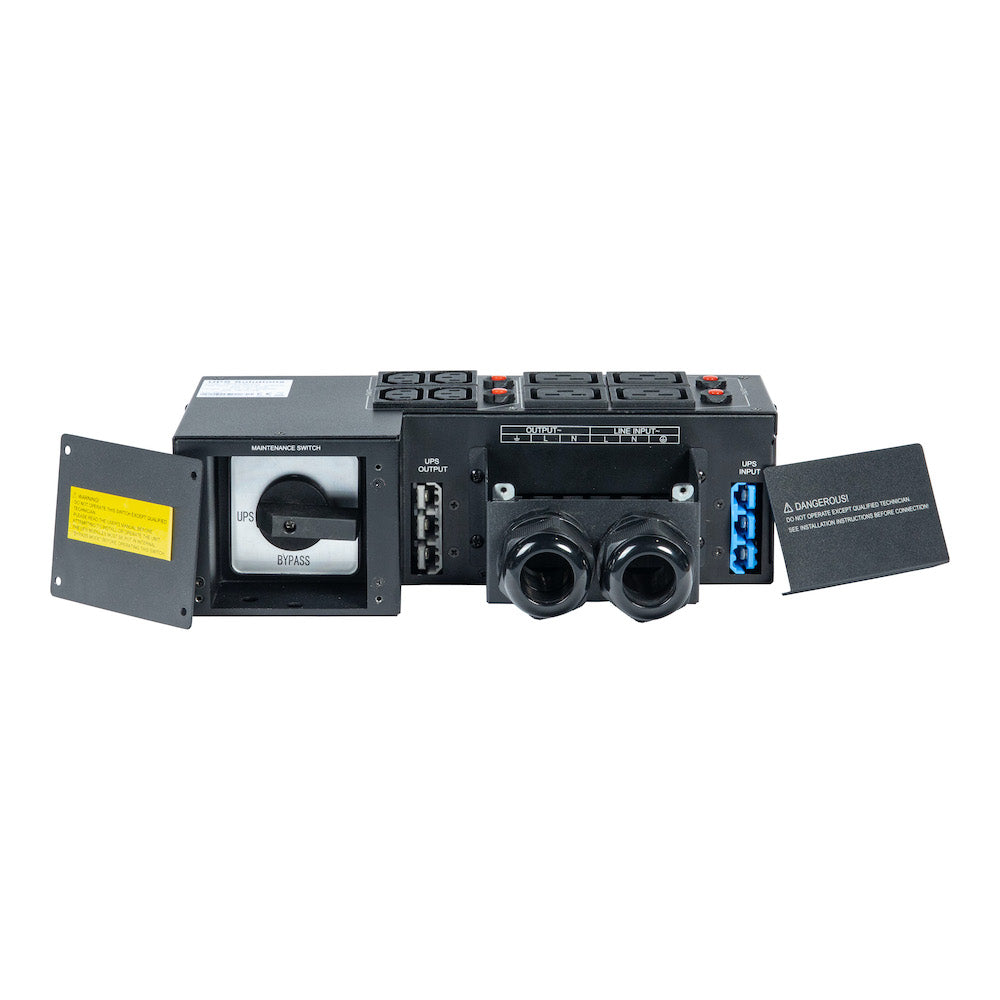

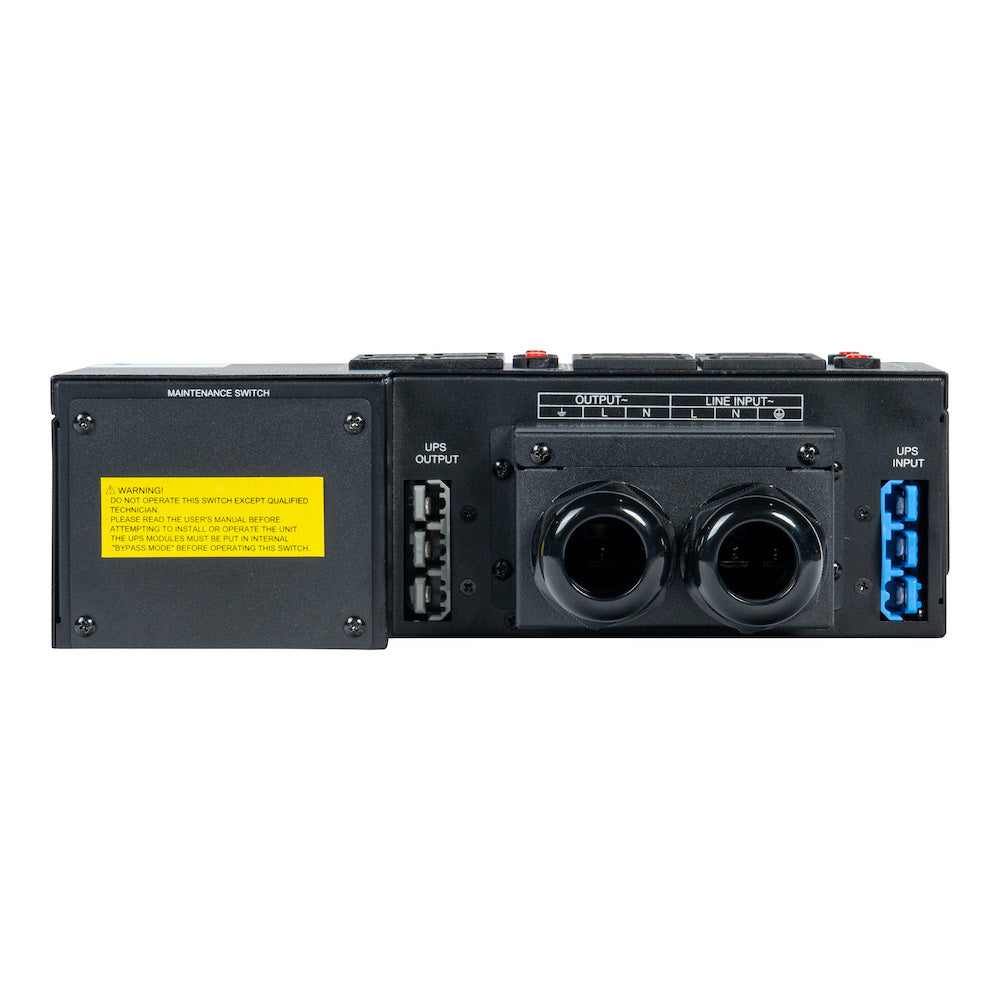

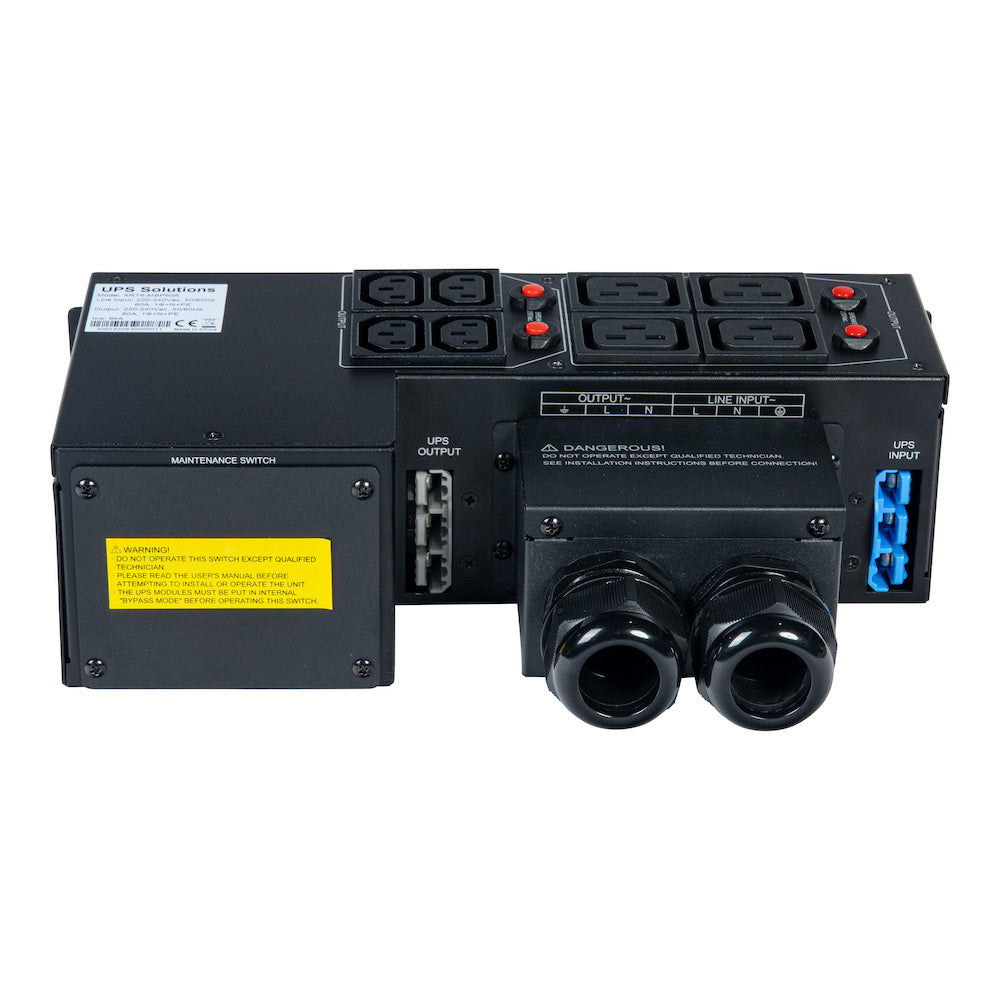

| Installation Clearance (W×H×D) | 440 × 265 × 900 mm (Including UPS + Battery + Bypass Panel + Cable Allowance) |
| Noise Level | < 60 dB |
| Cooling | Intelligent fan-controlled |
| Included in the Box | |
| Included Item | UPS Unit |
| Included Item | External Surge Protection Device |
| Included Item | IEC and Power Cables |
| Included Item | Tower Stands |
| Included Item | Rackmount Rails |
| Included Item | Hardware, Software & Manuals |
| Included Item | Cable Ties |
| Features & Benefits | |
| Long Life Batteries | 10-year design life for reduced maintenance |
| Cost Reduction | Fewer battery replacements and lower lifetime cost |
| Fire Retardant Design | Up to 2 hours fireproof for enhanced safety |
| Warranty & Support | |
| Labour Warranty | Onsite fault response or repair within 100 km of CBD metro areas after remote diagnosis |
