UPS Solutions Bypass Panel UPS-MBP2
UPS Solutions Bypass Panel UPS-MBP2
Couldn't load pickup availability
Description

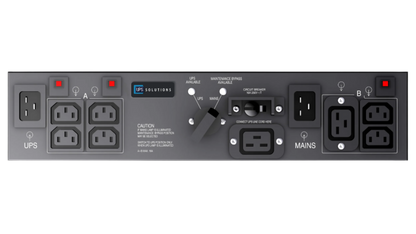

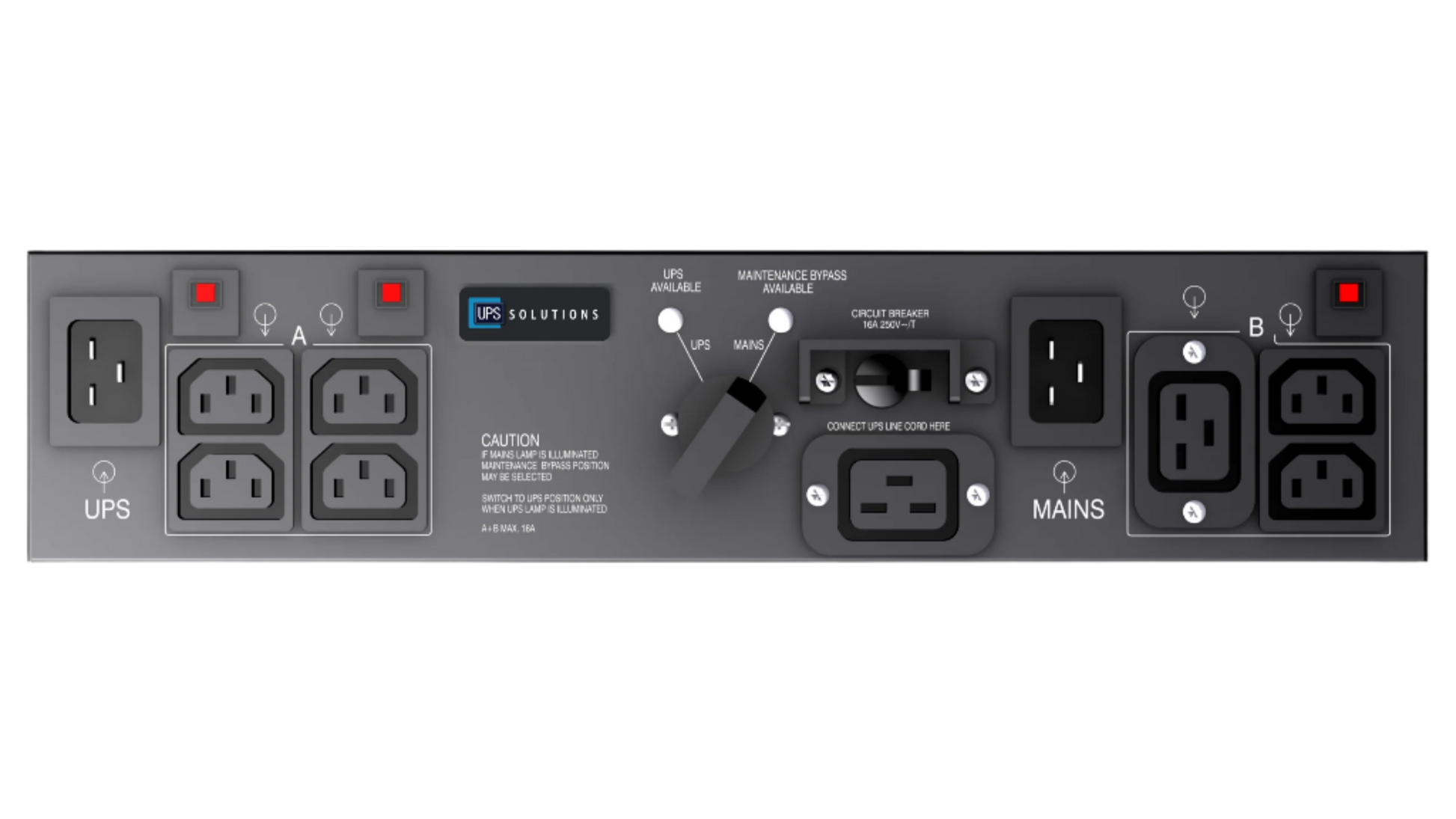

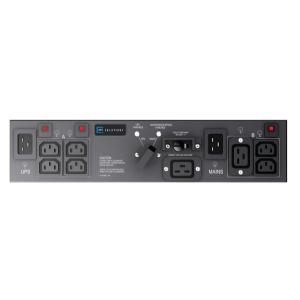

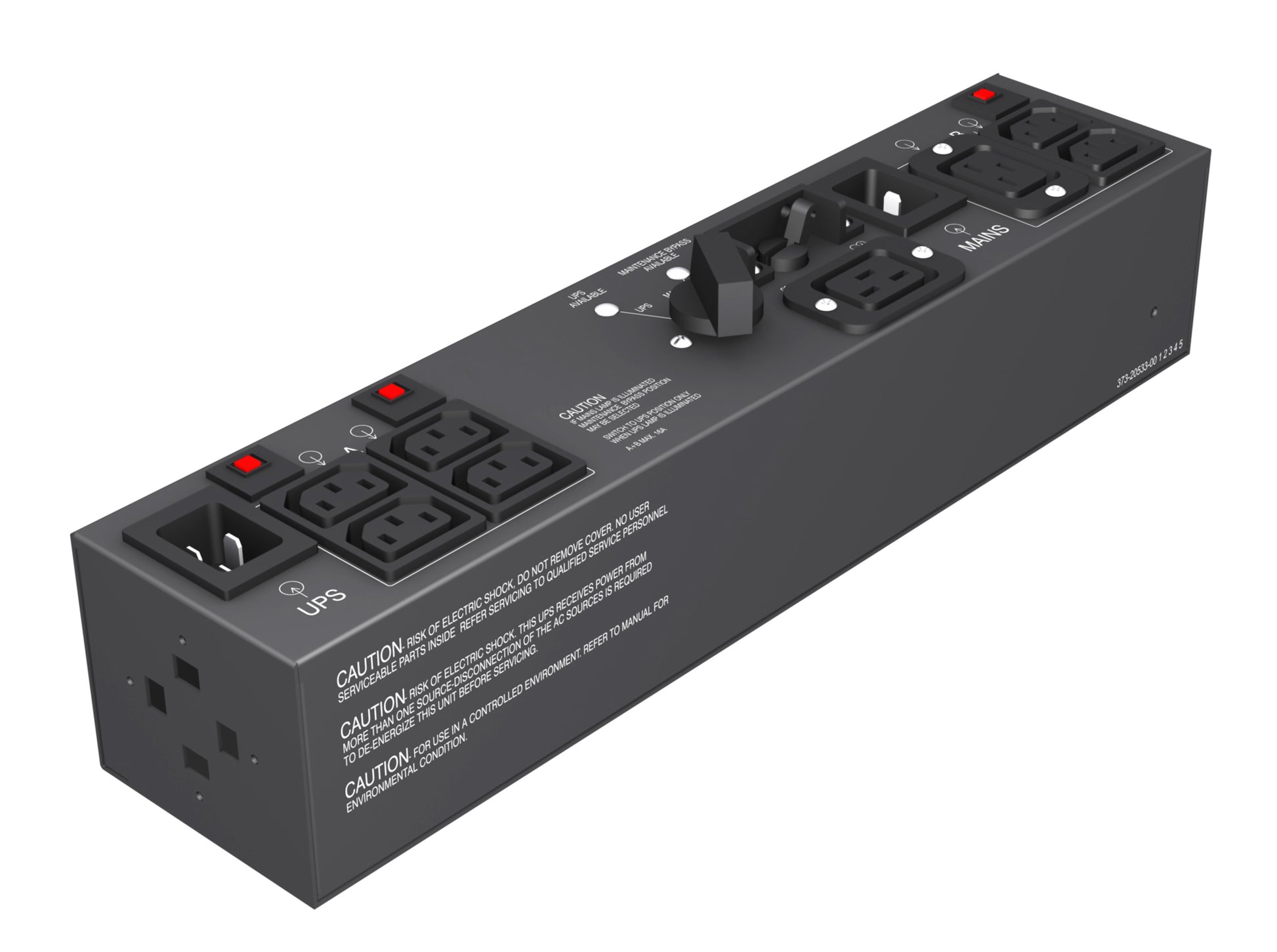

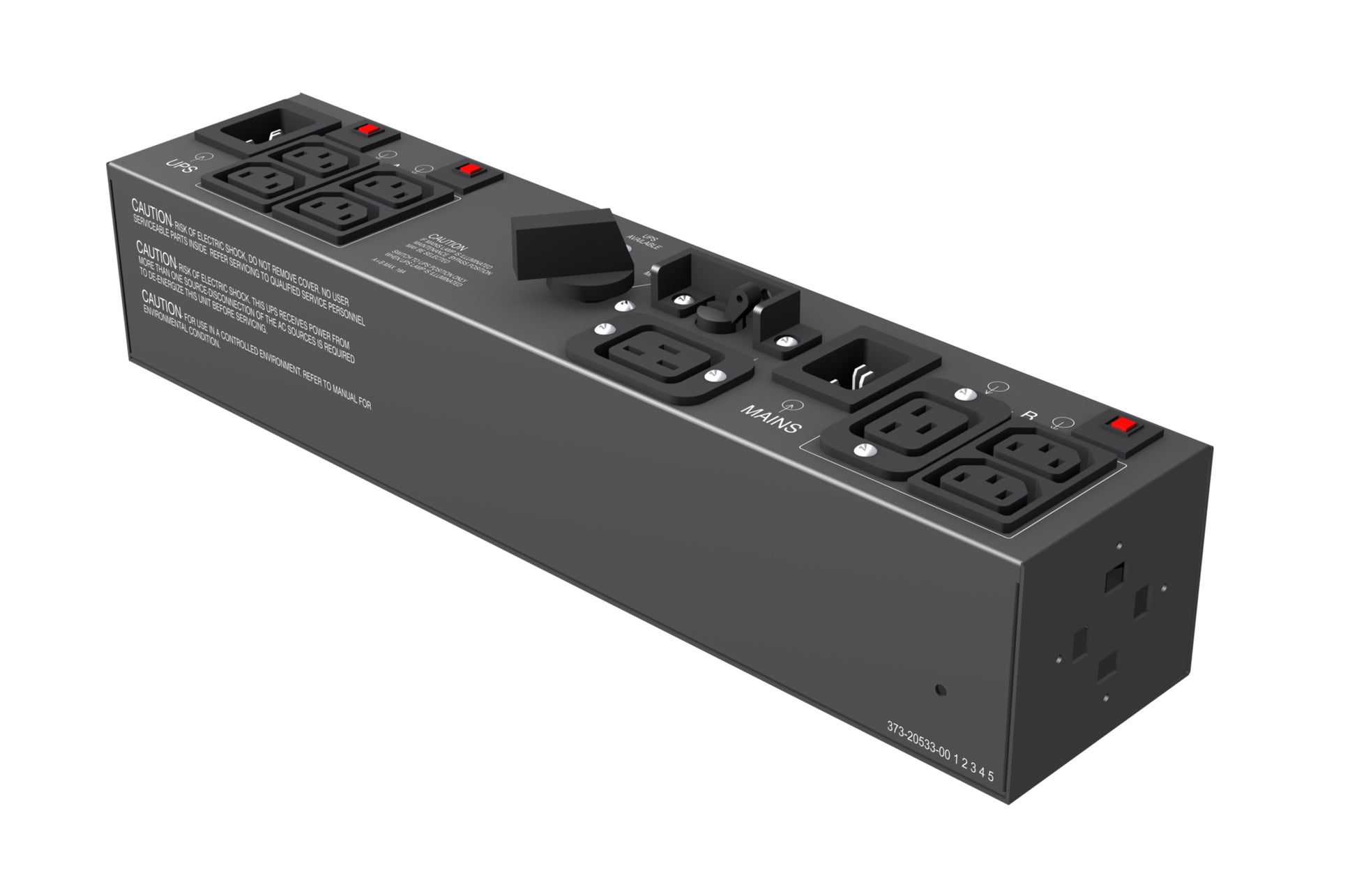

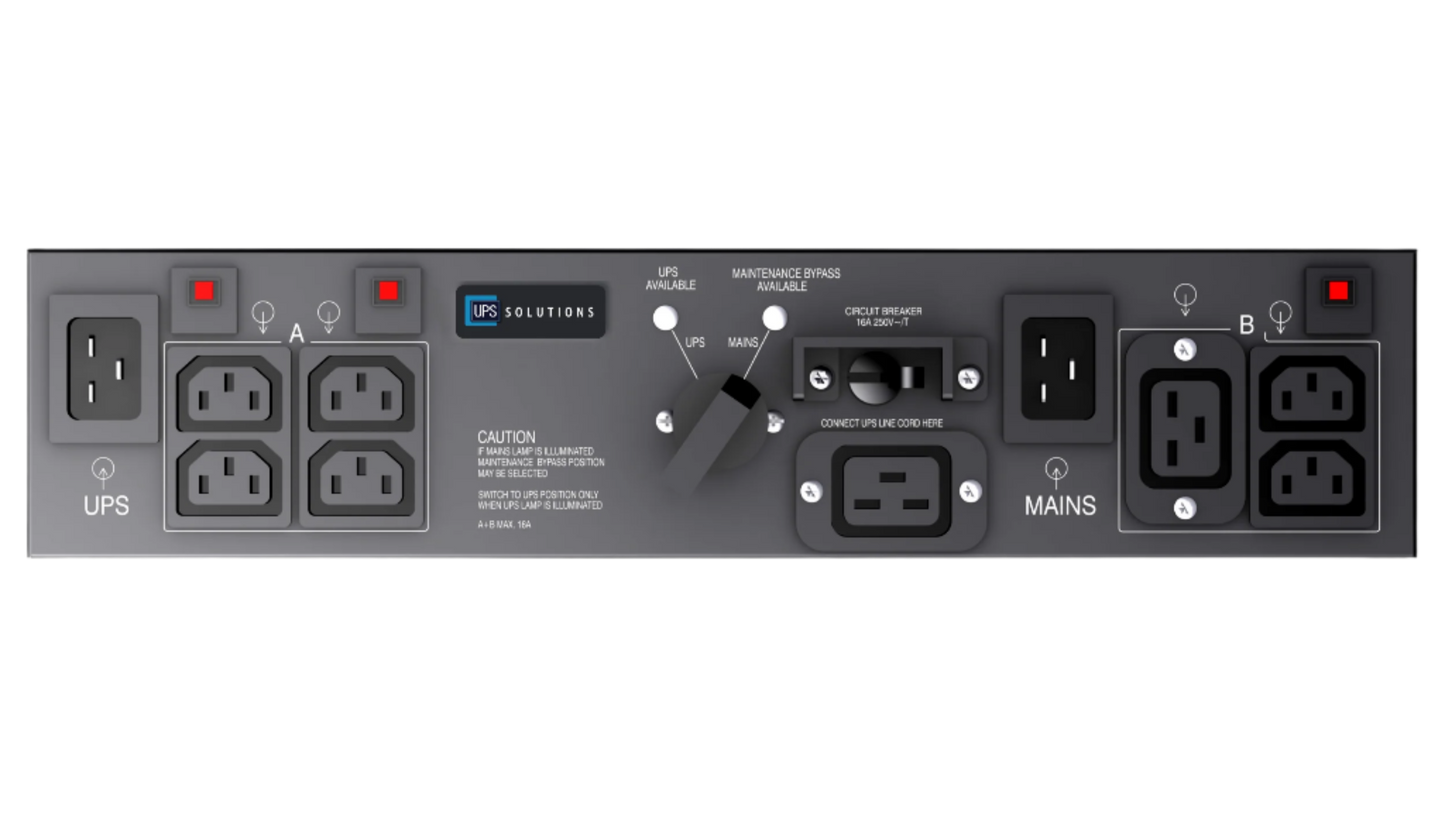

UPS-MBP2 Maintenance Bypass Panel
Ensure continuous power delivery during UPS servicing with the UPS Solutions UPS-MBP2 Bypass Panel. Designed for both commercial and industrial applications, this compact, 19” rack-mountable unit allows seamless transfer between UPS and mains power using a robust rotary switch. With fast switching (<6ms) and LED indicators for real-time status, the UPS-MBP2 provides a reliable and user-friendly solution for uninterrupted power during UPS maintenance.
Ideal for server rooms, network racks, and mission-critical environments, this maintenance bypass panel ensures your systems stay online—even when your UPS is offline.
Part Number: UPS-MBP2
Specifications
| Part Number | |
|---|---|
| Part Number | UPS-MBP2 |
| General Features | |
| Function | UPS Maintenance Bypass Panel |
| Form Factor | 19" Rack Mountable |
| Operation Modes | UPS Mode and MAINS Mode |
| Rotary Switch | Rapid transfer between UPS and MAINS |
| LED Indicators | MAINS (Orange), UPS (Green) |
| Electrical Specifications | |
| Transfer Time | <6 ms |
| Electrical Rating | See Model Label on MicroPDU |
| Operational Specifications | |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 0 to 95% non-condensing |
| Physical Specifications | |
| Dimensions | 88 x 77 x 394 mm |
| Weight | 4.5 kg |
| Certifications | |
| Standards | CE, EN 60950, ISTA Procedure 1A |
Documents

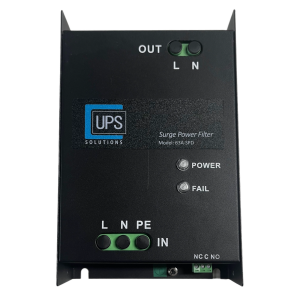

UPS Solutions Surge Protection
