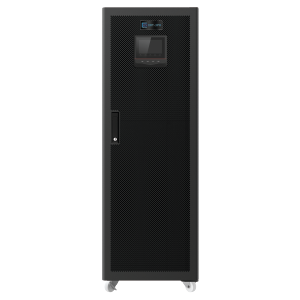

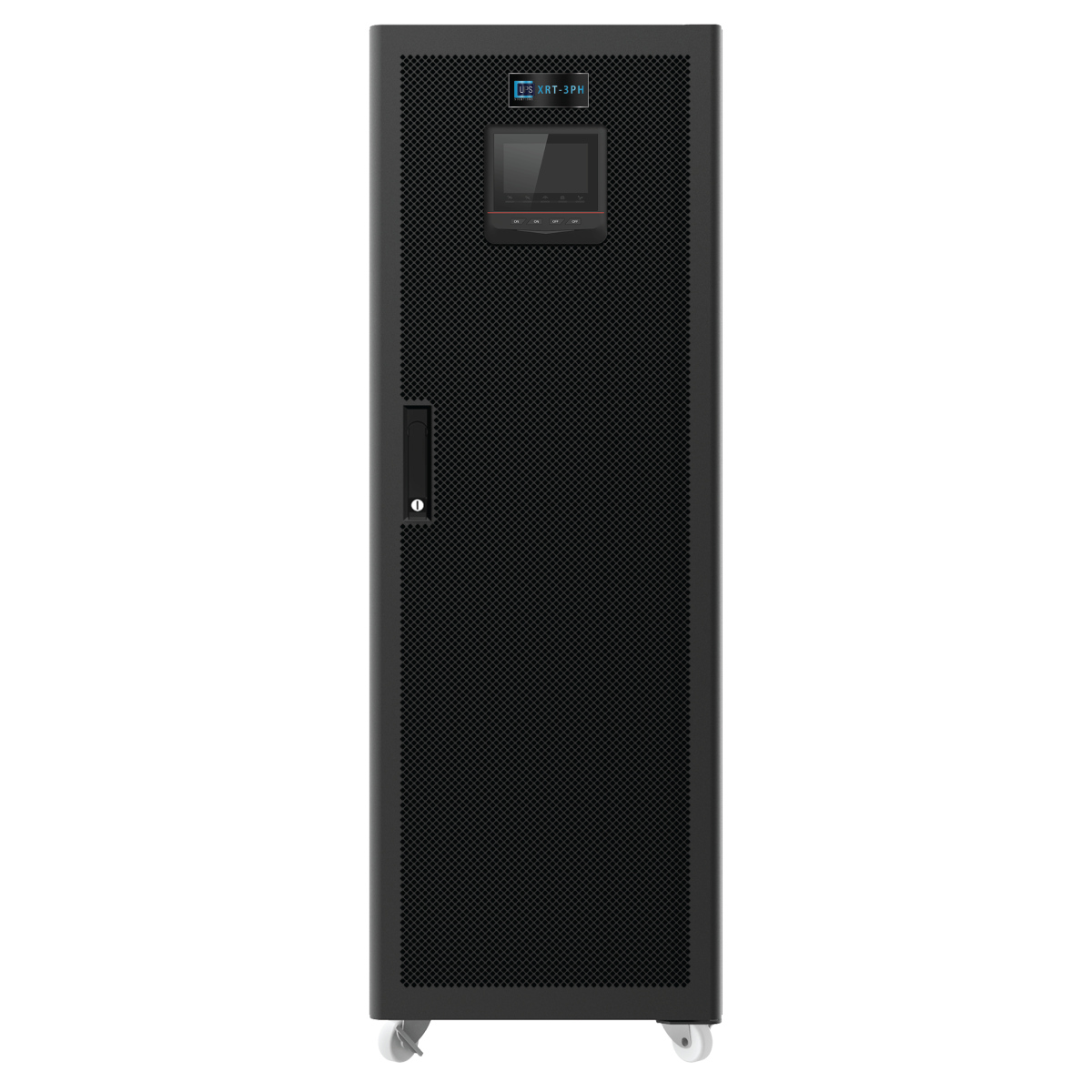

UPS Solutions 90kVA/90kW 3:3/3:1/1:1 Phase Online UPS System XRT-3PH-90KVA


Designed for critical power applications in large server rooms and data centres, the XRT 3-Phase 90KVA model delivers robust and reliable power supply with advanced technology.

This UPS system is tailored to meet the demands of high-capacity environments, ensuring continuous power and optimal efficiency.

Input Specifications:
Voltage (Vac): 380/400/415 (138~485 L-L)
Frequency (Hz): 40~70
Power Factor: ≥0.99
Phase: 3φ4W+PE
THDi: <3% at full linear load

Bypass Specifications:
Bypass Voltage (Vac): 380/400/415
Voltage Range: -20% (-10%/-15%/-30% selectable)/+15% (10%/20%/25% selectable)
Overload: ≤130%: long run; 130%< load ≤150%: 5min; 150%< load ≤200%: 1s; 200%< load ≤300%: 100ms; >300%: OUTPUT immediately.

Output Specifications:
Capacity (kW): 90
Power Factor: 1 (0.5 leading to 0.5 lagging)
Voltage (Vac): 380/400/415±1%
Frequency (Hz): 50/60±0.1% (Battery mode)
Phase: 3φ4W+PE
Three Phase Difference: ≤1%
THDv: <1% at linear load, <4% at non-linear load
Transfer Time (ms): 0
AC-AC Efficiency: up to 96.5%
Overload: 101-105% Long run, 106-110% load for 60 minutes, 111%-125% load for 10 minutes, 126%-150% load for 1 minute, over 150% load transfer to bypass

Battery Specifications:
Battery Voltage (Vdc): To be determined based on model specifics
Battery Type: External
Charging Current (A): To be determined based on model specifics

General Specifications:
Communication Interface: RS232, RS485, MODBUS, dry contact (BMS, SNMP, expend dry contact card are optional in slot)
Display: Likely 7" Touch screen+LED+LED bar (to be confirmed)
Alarm: AC input abnormal, low battery, overload, failure
Protection: Output short-circuit, overload, over-temperature, battery low voltage, output over/low voltage
Noise (dB): <70
Altitude(m): 0-2000 no derate. 2000-3000 m derate power by 1 % per each 100 m increase
IP: IP20
Working Temperature (°C): 0 ~ 40 no derate, 40~50 auto derate.
Relative Humidity: 0 ~ 95%, no condensation
Dimension (W×D×H)(mm): To be determined based on model specifics
Weight (kg): To be determined based on model specifics

Key Features:
• High-efficiency double-conversion topology for reliable power supply
• Suitable for high-demand data centre environments
• Advanced protection features to ensure system integrity
• User-friendly interface for easy management and monitoring
• Scalable battery solutions to meet varying runtime requirements
• Comprehensive communication interfaces for system integration
• Robust design capable of withstanding challenging operating conditions

Service and Support:
• Full manufacturer warranty and technical support
• Professional installation services available
• Access to a dedicated team for customer support and service
