Vertiv

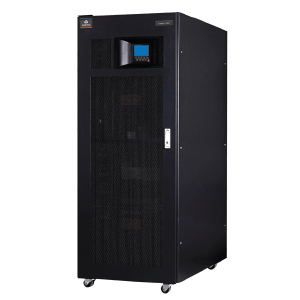

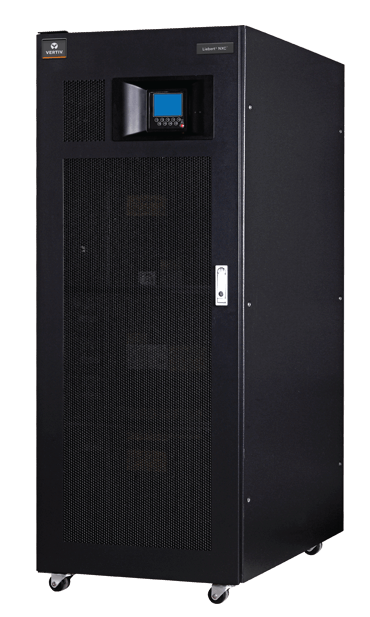

Liebert NXC 30KVA/27KW 400V 3 Phase w/1 Battery string EMER30KVA

Liebert NXC 30KVA/27KW 400V 3 Phase w/1 Battery string EMER30KVA

Shipping calculated upon quotation.
kVA
Topology
Wiring Type
View full details

Description

30000VA/27000W

Input: 63A Breaker 3-Pole - Hardwired Input/Output - 16mm-2 Output: Hardwire 3-phase in / out
Batteries: 2 string of 38 x 34AH batteries
Communication Management: USB / Voltage-free contact ports / Intellislot (for Dry Contact / SNMP Card / Modbus Card / RS485 Card) Software: SiteMonitor
Warranty: 1 years repair or replace - Additional warranty and maintenance services available
UPS Topology: Online Double Conversion
Runtime: Extended Runtime
Form Factor: Tower Only
Wiring Type: Three Phase Input / Output
Dimensions: 1600 x 600 x 850 (mm)
Part Number: EMER30KVA

Vertiv UPS Accessories

View All

Contact UPS Solutions

For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing sales@upss.com.au or calling 1300 555 992.
