Vertiv

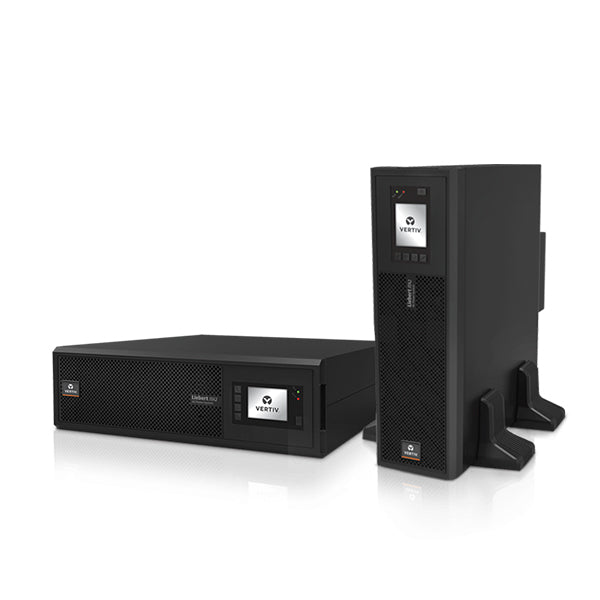

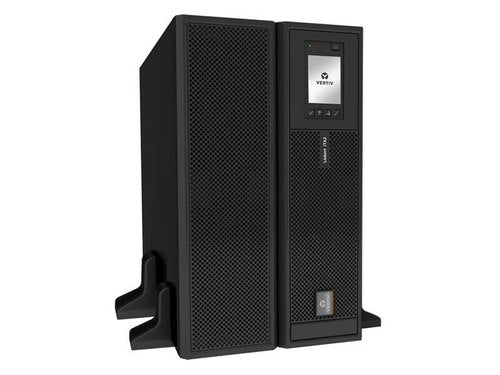

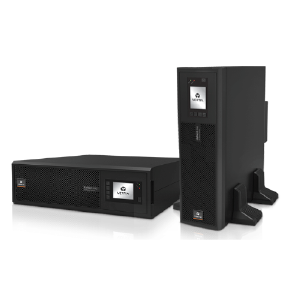

Liebert ITA2 20KVA/20KW UPS 400V LCD long backup model (included IS-UNITY-DP SNMP/Web Card, connection cable & mounting rail kits). Batteries & Commissioning excluded
Liebert ITA2 20KVA/20KW UPS 400V LCD long backup model (included IS-UNITY-DP SNMP/Web Card, connection cable & mounting rail kits). Batteries & Commissioning excluded
Couldn't load pickup availability
Description
20000VA/20000W
Input: 380/400/415VAC – Three Phase 35Amp 3-Pole Hardwire 6mm Output: 220/230/240VAC (1-Phase), 380/400/415VAC (3-Phase)

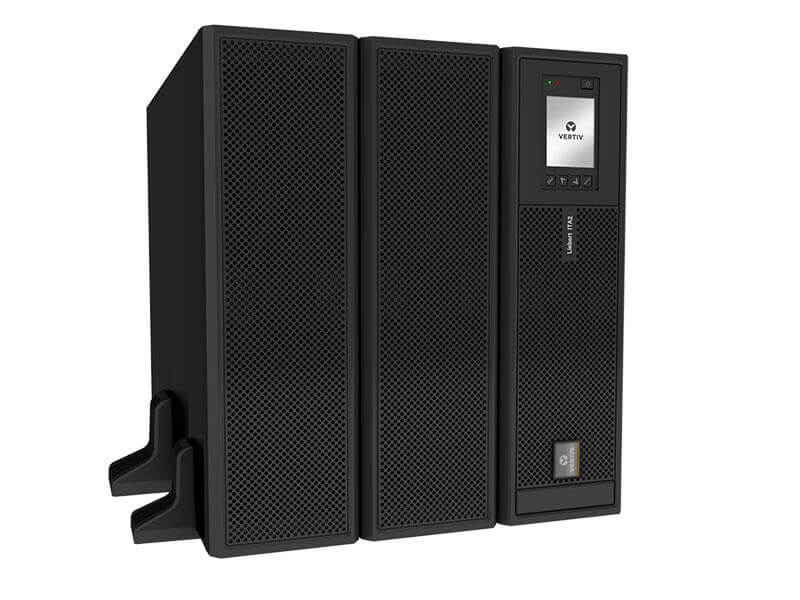

Batteries: External Battery Cabinet: Minimum required 1 x ITA-BCI0020K01 ( built-in battery module of 16 block X 12V X 9AH)
Communication Management: USB / Intellislot (Dry Contact / SNMP Card / Modbus Card / RS485 Card) Software: SiteMonitor
Warranty: 2 years repair or replace
UPS Topology: Online Double Conversion
Runtime: Extended Runtime
Form Factor: Rack/Tower
Wiring Type: Single Phase
Dimensions: 130 (3U) x 430 x 500 (mm)
Part Number: 01202683
Features:
Operating Temperature: 0-50°C
Storage Temperature: -15-50°C
Dust Proof
Moisture Proof
High-Temperature Proof
High Durability
High Altitude Certified
Seismic Certified
Storage Relative Humidity: 0 to 95% non-condensing
Noise at 3ft/1m from unit (dBA): <58
Vertiv UPS Accessories
Contact UPS Solutions
For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing sales@upss.com.au or calling 1300 555 992.
