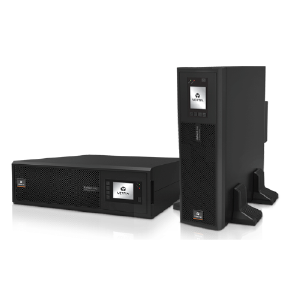

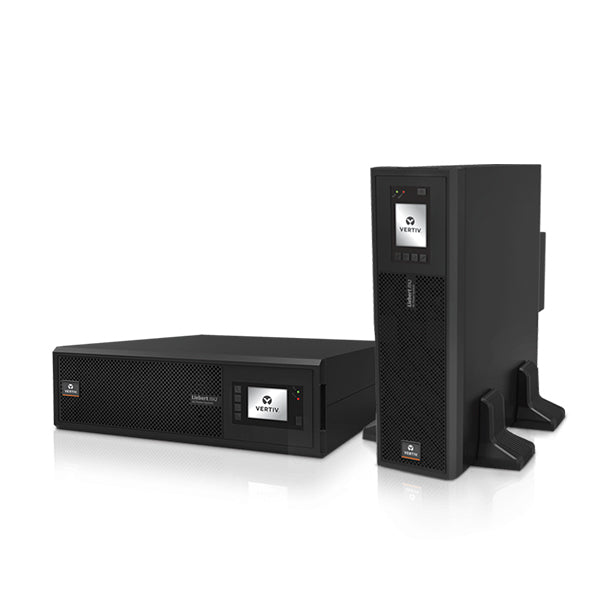

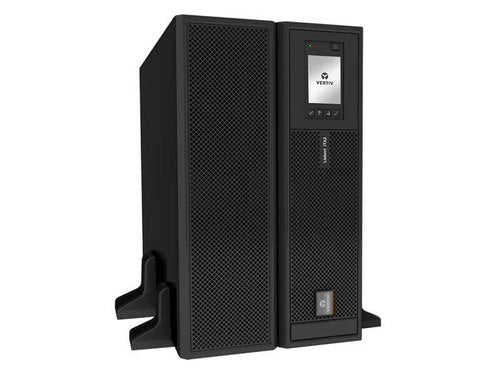

Vertiv Liebert ITA2 10kVA/10kW UPS 230V LCD standard backup model (Batteries & Commissioning excluded) '01201803

Vertiv Liebert ITA2 10kVA/10kW UPS 230V LCD standard backup model (Batteries & Commissioning excluded) '01201803

Shipping calculated upon quotation.
kVA
Topology
Wiring Type
View full details

Description

10000VA/10000W

Input: 220/230/240 (1-phase) Output: Hardwire Single-phase, 220/230/240VAC

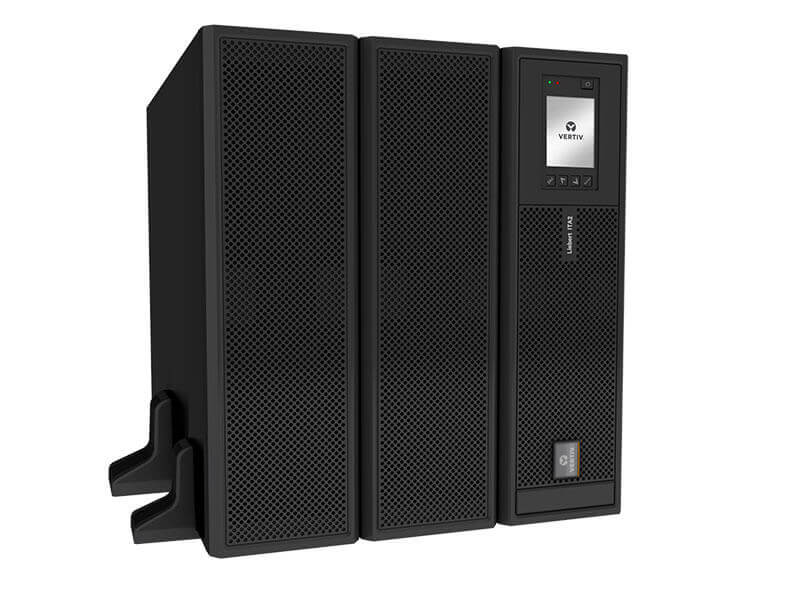

Batteries: External Battery Cabinet: Minimum required 1 x ITA-BCI0020K01 ( built-in battery module of 16 block X 12V X 9AH)
Communication Management: USB / Intellislot (Dry Contact / SNMP Card / Modbus Card / RS485 Card) Software: SiteMonitor
Warranty: 2 years repair or replace
UPS Topology: Online Double Conversion
Runtime: Extended Runtime
Form Factor: Rack/Tower
Wiring Type: Single Phase
Dimensions: 85 (2U) x 430 x 500 (mm)
Part Number: 01201803

Features:
Operating Temperature: 0-50°C
Storage Temperature: -15-50°C
Dust Proof
Moisture Proof
High-Temperature Proof
High Durability
High Altitude Certified
Seismic Certified
Storage Relative Humidity: 0 to 95% non-condensing
Noise at 3ft/1m from unit (dBA): <58

Contact UPS Solutions

For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing sales@upss.com.au or calling 1300 555 992.
