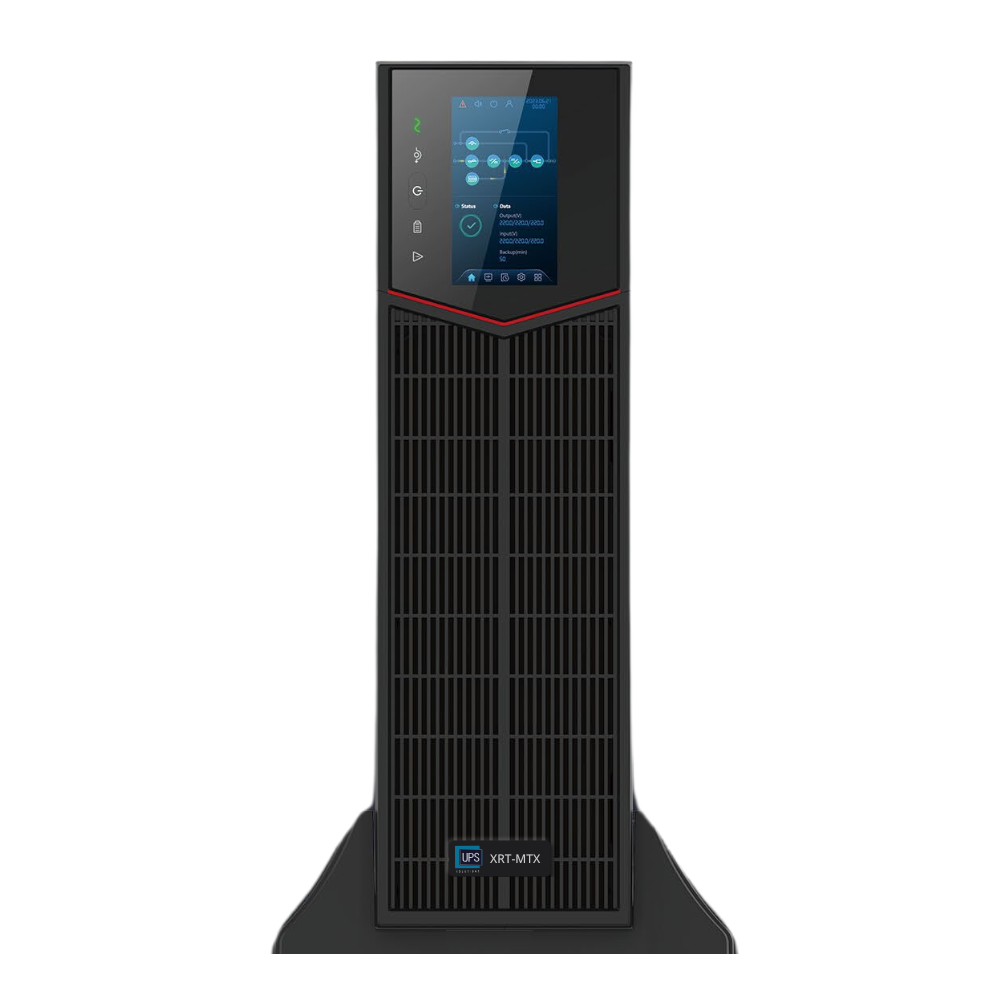

UPS Solutions Matrix 10kVA Online UPS System XRT-MTX-10KVA
UPS Solutions Matrix 10kVA Online UPS System XRT-MTX-10KVA
Couldn't load pickup availability
Description
10kVA/10kW
1:1/3:1/3:3 Configuration
High-efficiency 10kVA rack/tower UPS with intelligent management, flexible 1:1/3:1/3:3 configuration, and hot-swappable batteries for critical IT and commercial environments.
Key Features:
Capacity: 10kVA / 10kW

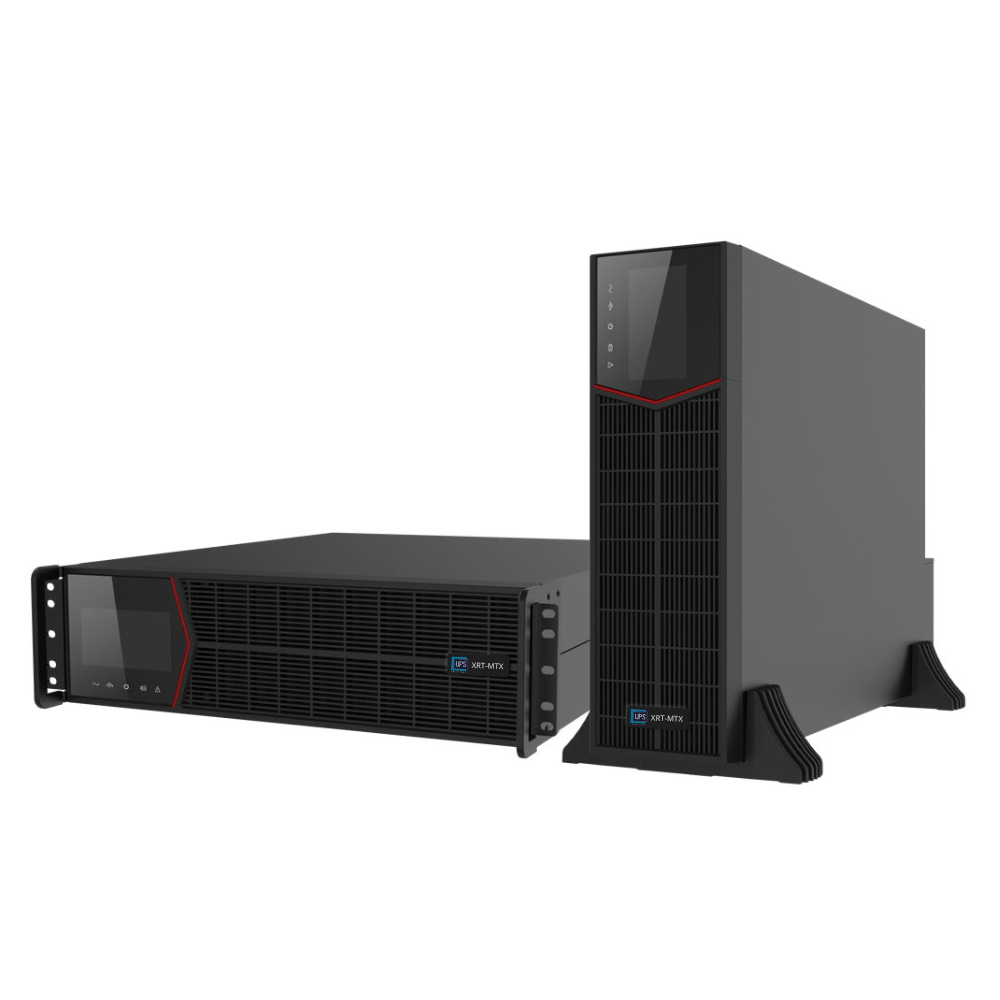

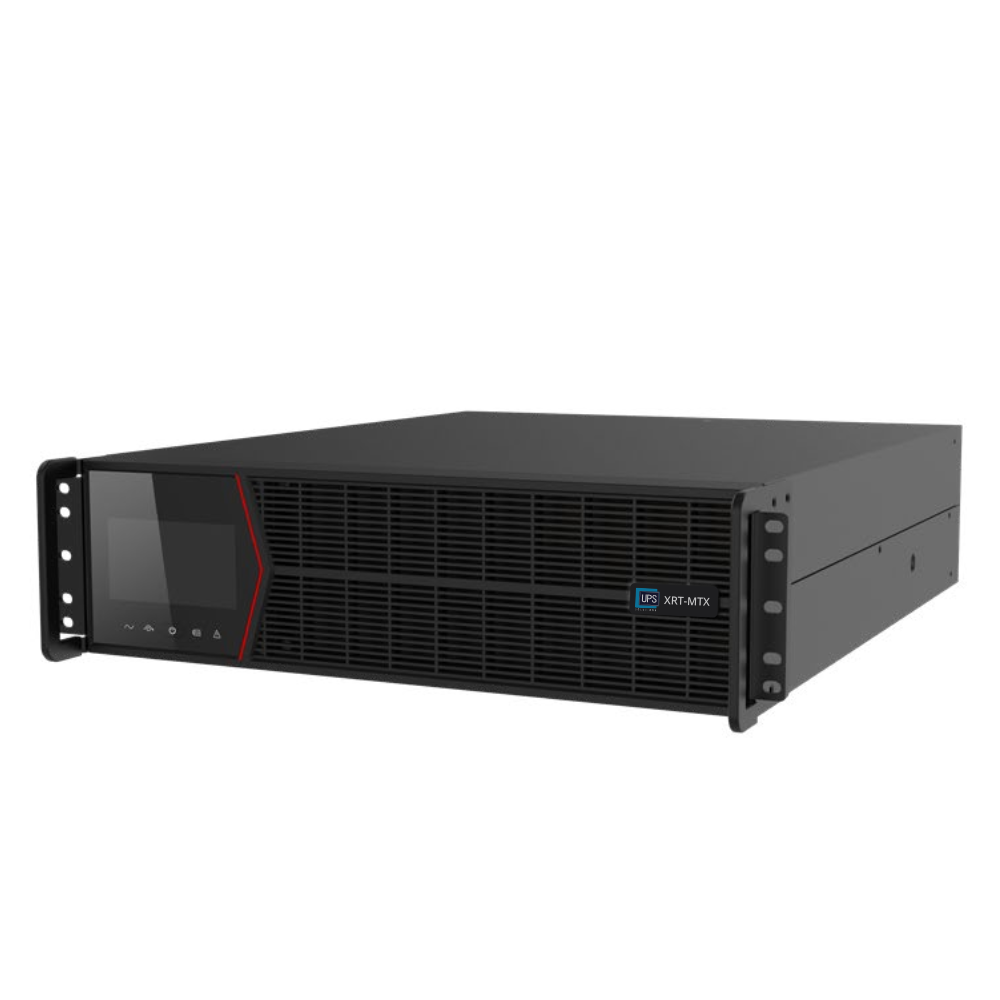

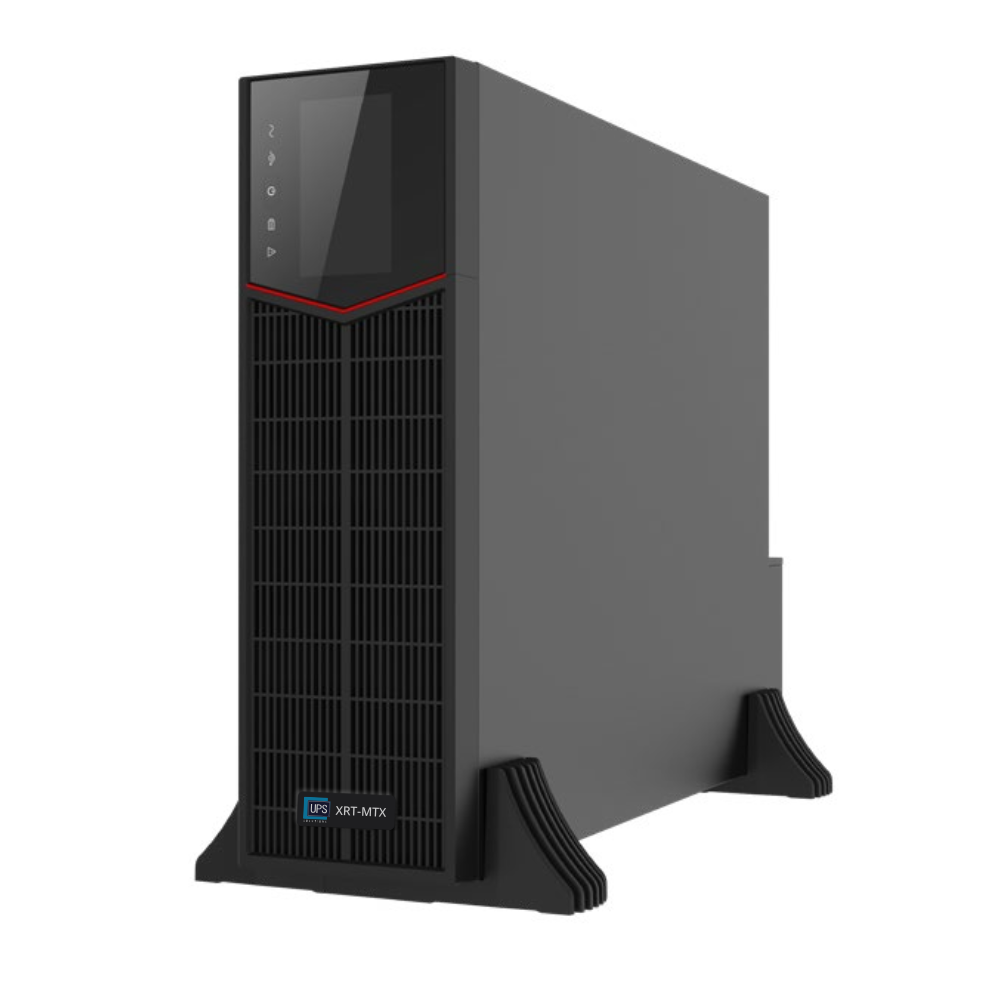

Design: Compact 3U Rack/Tower convertible
Efficiency: Up to 96% AC/AC, ECO mode up to 99%
Input Range: 121–268V (single/three-phase adaptable)
Output Power Factor: 1.0 (kVA = kW)
Battery: Hot-swappable, ±192V (±96–240V adjustable)

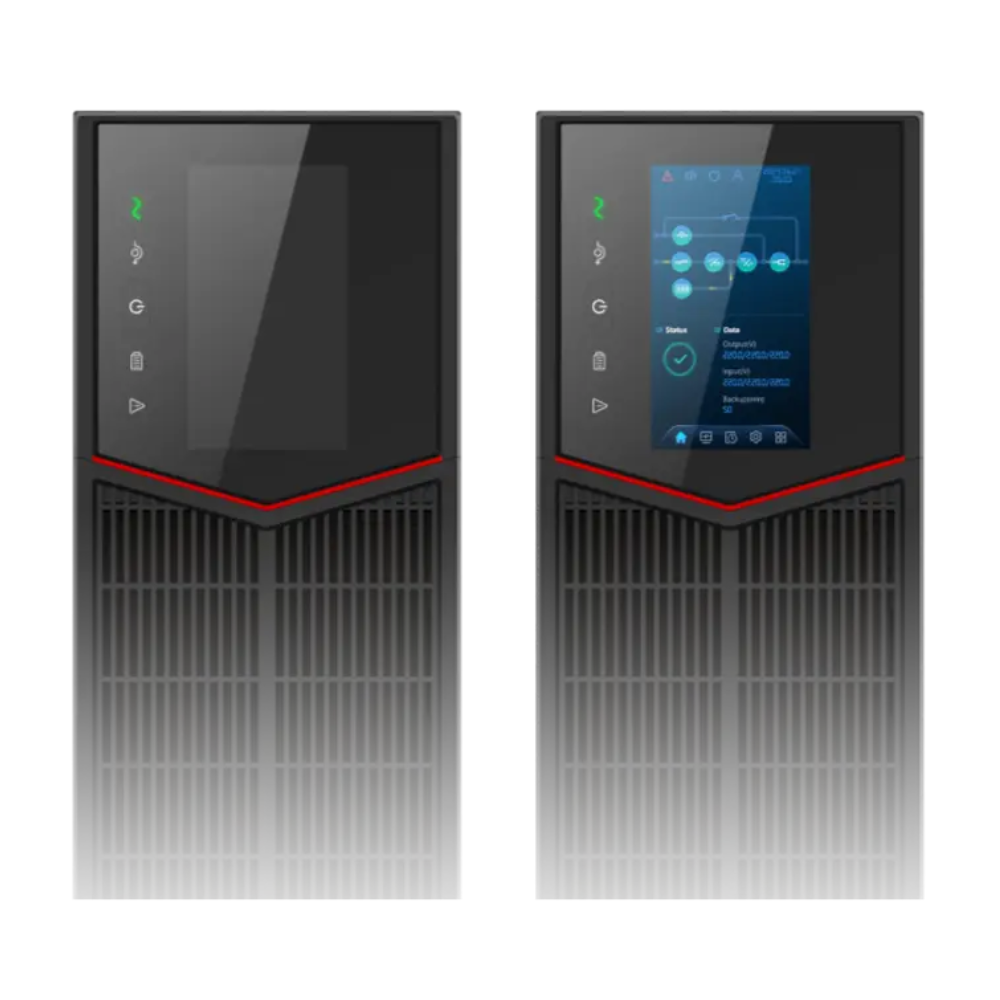

Interface: 4.3” colour touchscreen with auto-rotate
Protection: Overload, surge, lightning, short-circuit, backfeed, and over-temperature
Communication: RS232 & EPO (SNMP & Modbus optional)
Operating Temp: –5°C to 40°C (up to 50°C with derating)
Weight: 17.5 kg (UPS module)
Dimensions (W×D×H): 438 × 535 × 130 mm (3U)
Specifications
| Part Number | |
|---|---|
| Part Number | XRT-MTX-10KVA |
| General Features | |
| Unity Power Factor | kW = kVA |
| Phase | 1:1 / 3:1 / 3:3 |
| Form Factor | Rack/Tower Convertible (3U) |
| UPS Topology | Online Double Conversion |
| Touchscreen | 4.3” colour touchscreen with auto-rotate |
| Electrical Specifications | |
| Input Voltage Range | 121–268V (single/three-phase adaptable) |
| Frequency | 40–70 Hz |
| Power Factor | ≥0.99 |
| THDi at Full Linear Load | <3% |
| Dual Main Input | Yes (separate or single utility & bypass) |
| Batteries | Hot-swappable, ±192V (±96–240V adjustable) |
| Output Capacity | 10 kW |
| AC/AC Efficiency (Max) | 96% |
| ECO Mode Efficiency | Up to 99% |
| Output Voltage | 190/200/208V (L-L) or 380/400/415V (L-L) |
| Output Frequency (Battery Mode) | 50/60 ±0.1 Hz |
| THDv | ≤2% (linear load), ≤4% (non-linear load) |
| Overload Capability | 105–110% for 60 min; 110–130% for 10 min; 130–155% for 1 min; >155% for 200 ms |
| Operational Specifications | |
| EPO | Remote and Local |
| Cold Start | Yes |
| Communication Management | RS232 + EPO (SNMP, Modbus & dry contact optional in slot) |

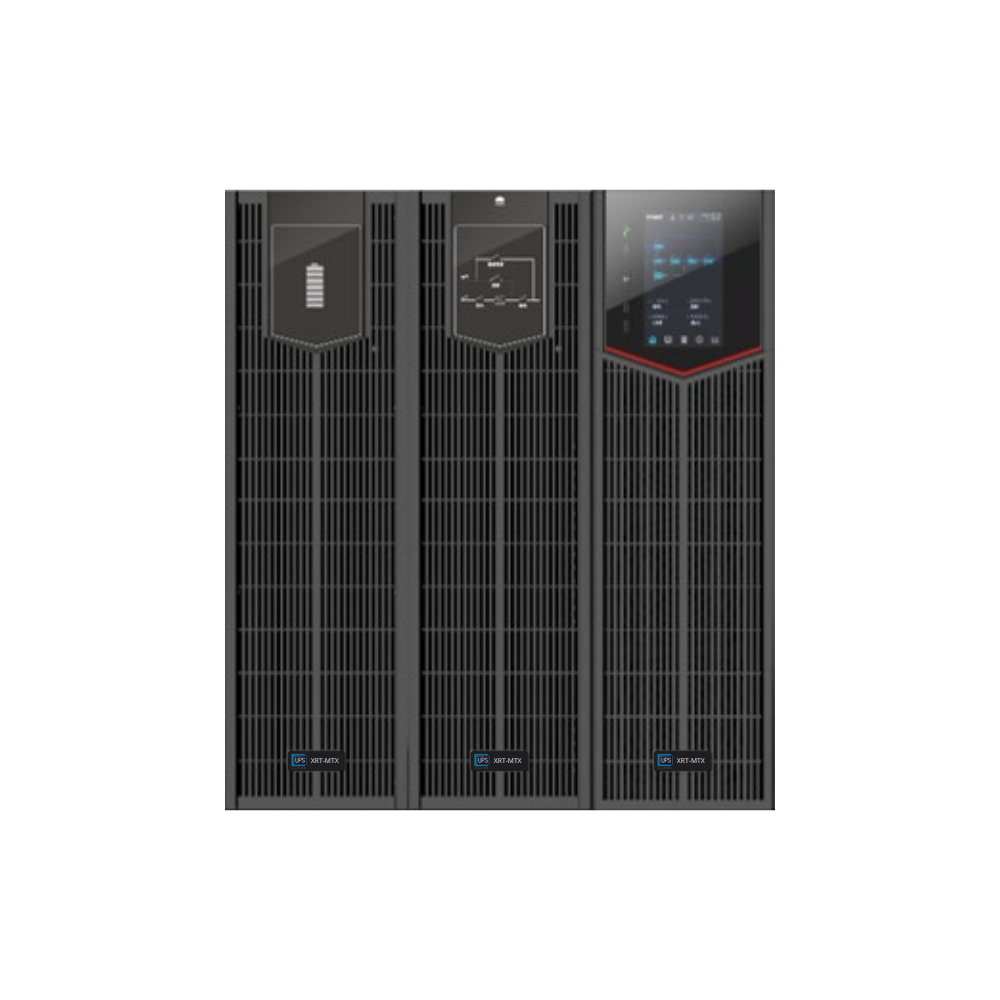

| UPS Runtime | Extended Runtime (hot-swappable battery packs) |
| Smart Functions | Self-load test, smart generator mode, input phase sequence correction |
| Physical Specifications | |
| Dimensions (W×D×H) | 438 × 535 × 130 mm (3U) |
| Weight | 17.5 kg (UPS module only) |
| Noise | <60 dB |
| Working Temperature | -5 ~ 40 °C (up to 50 °C with derating) |
| Relative Humidity | 0 ~ 95%, no condensation |
Documents
XRT6 UPS Systems
Contact UPS Solutions
For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing sales@upss.com.au or calling 1300 555 992.
