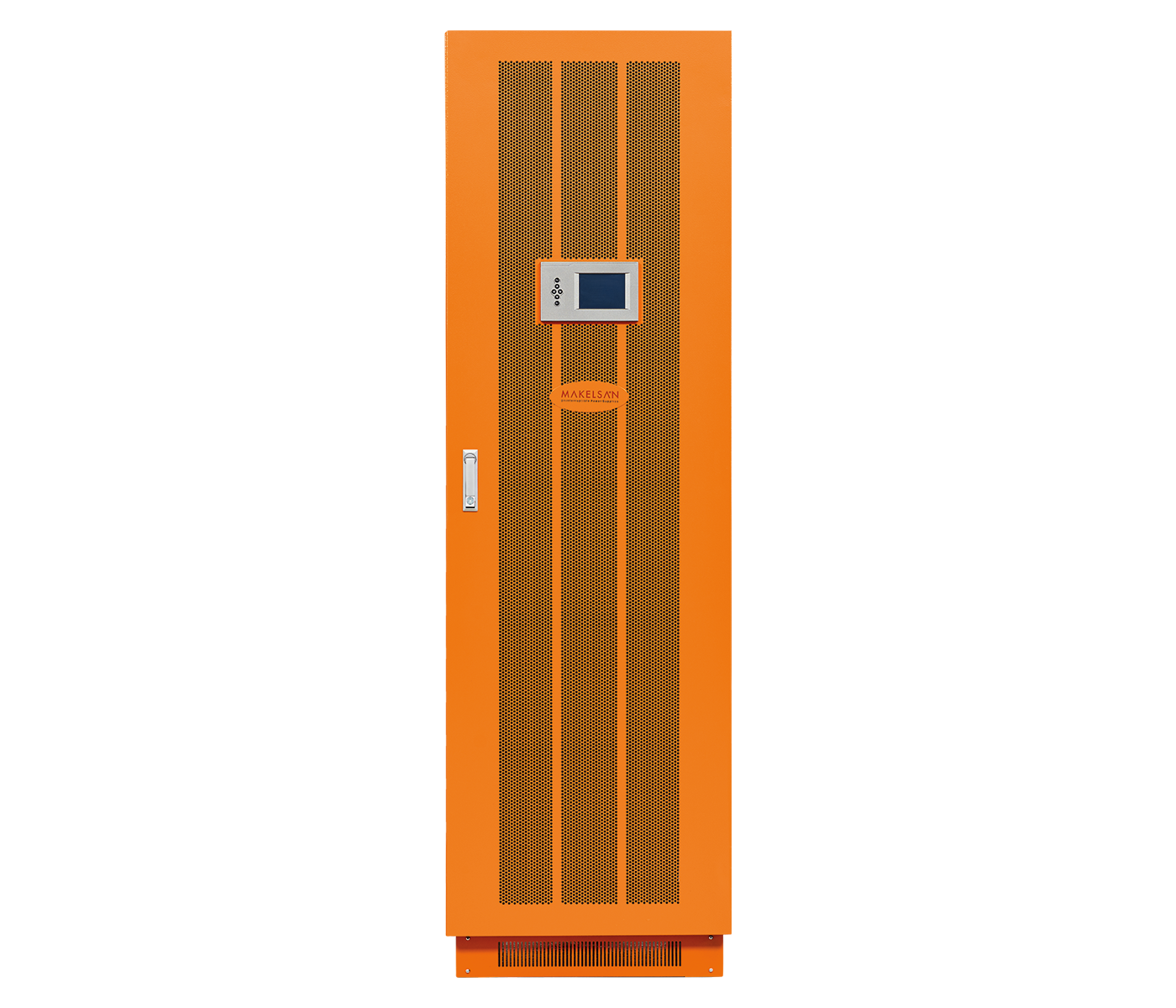

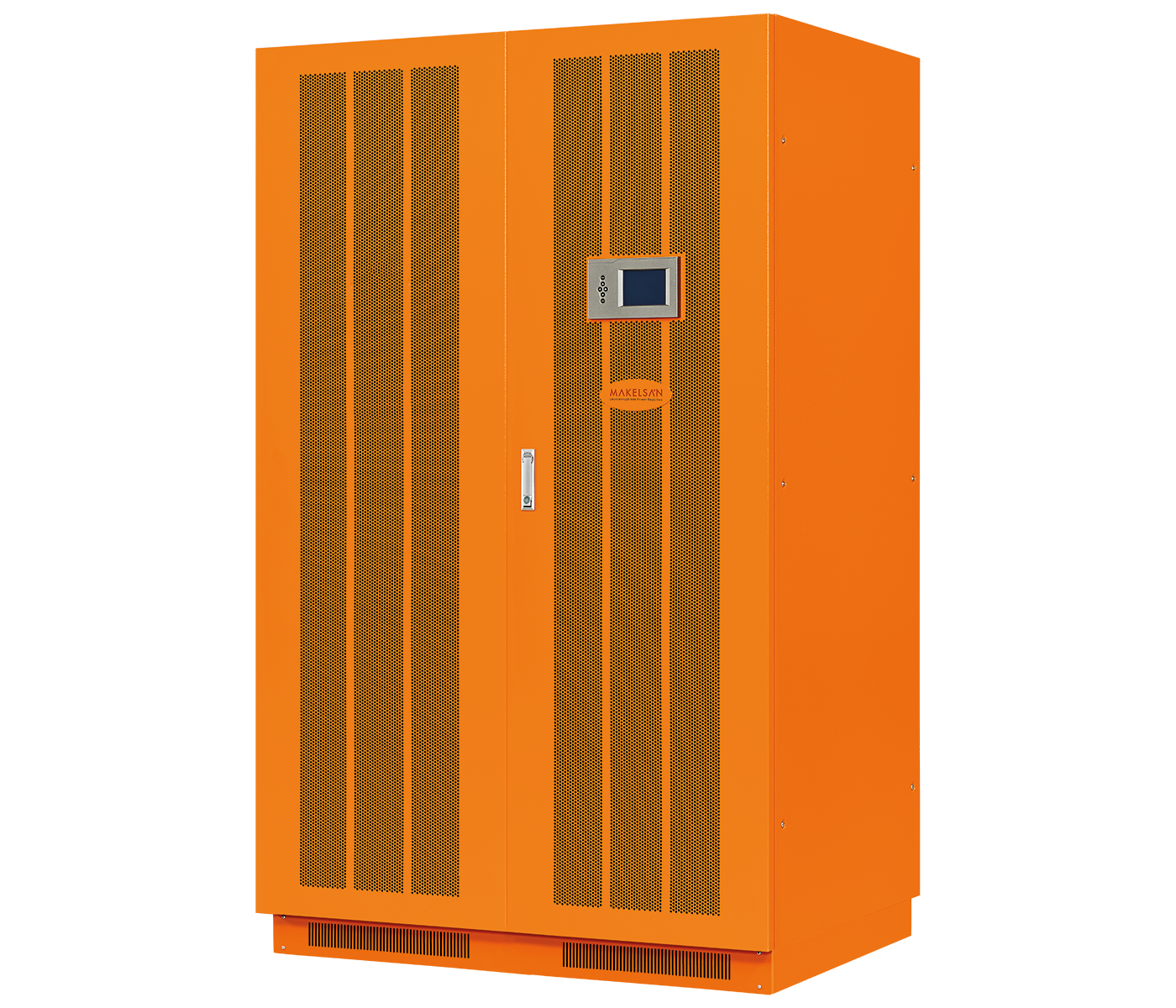

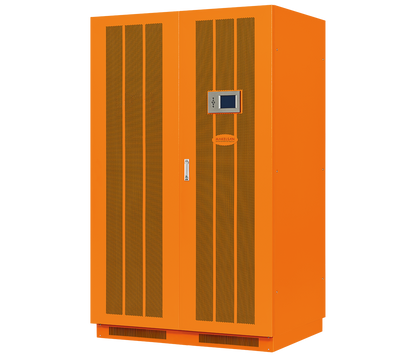

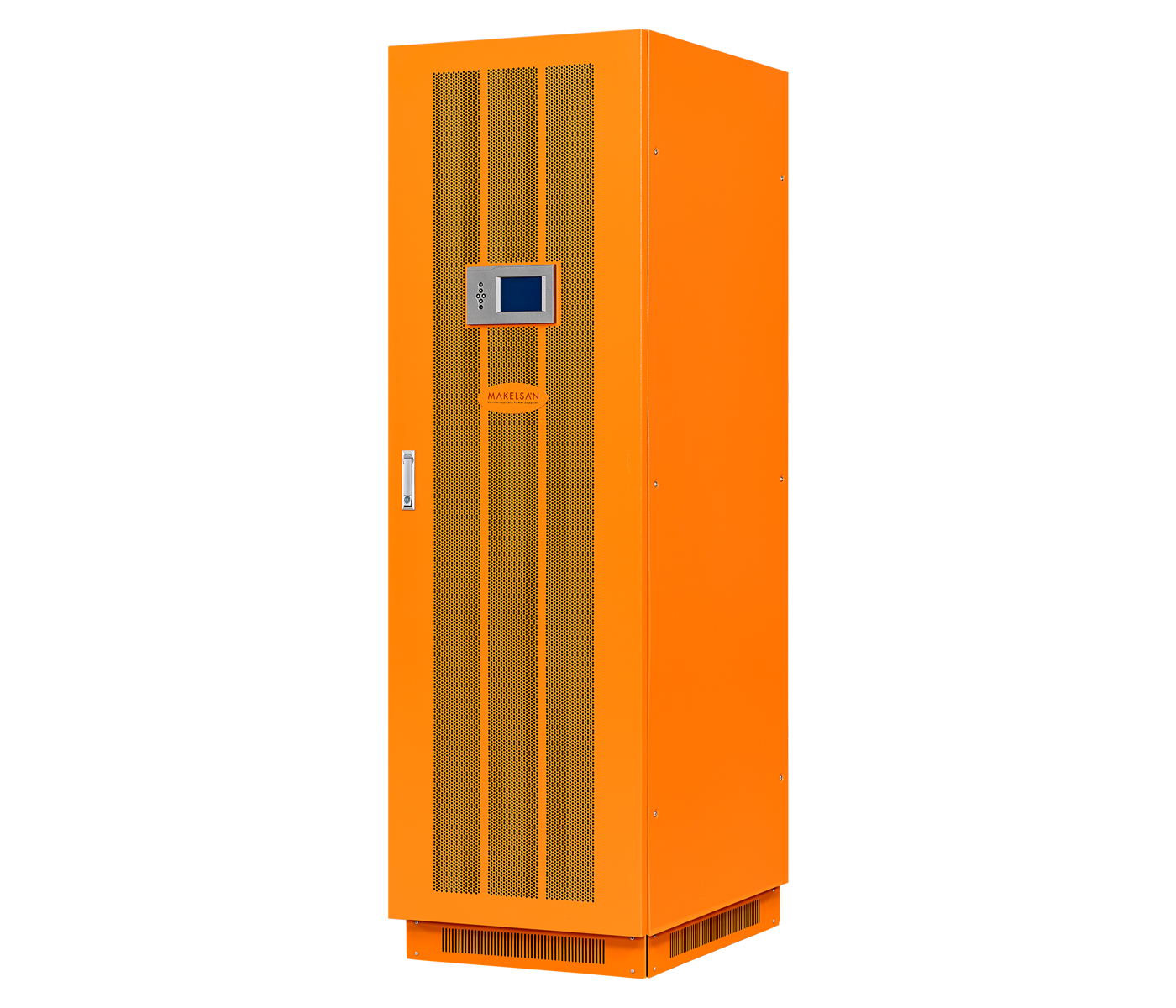

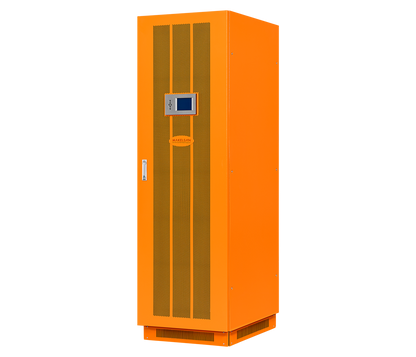

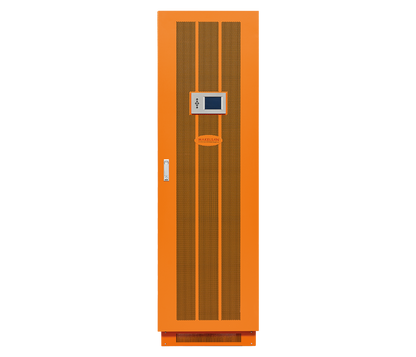

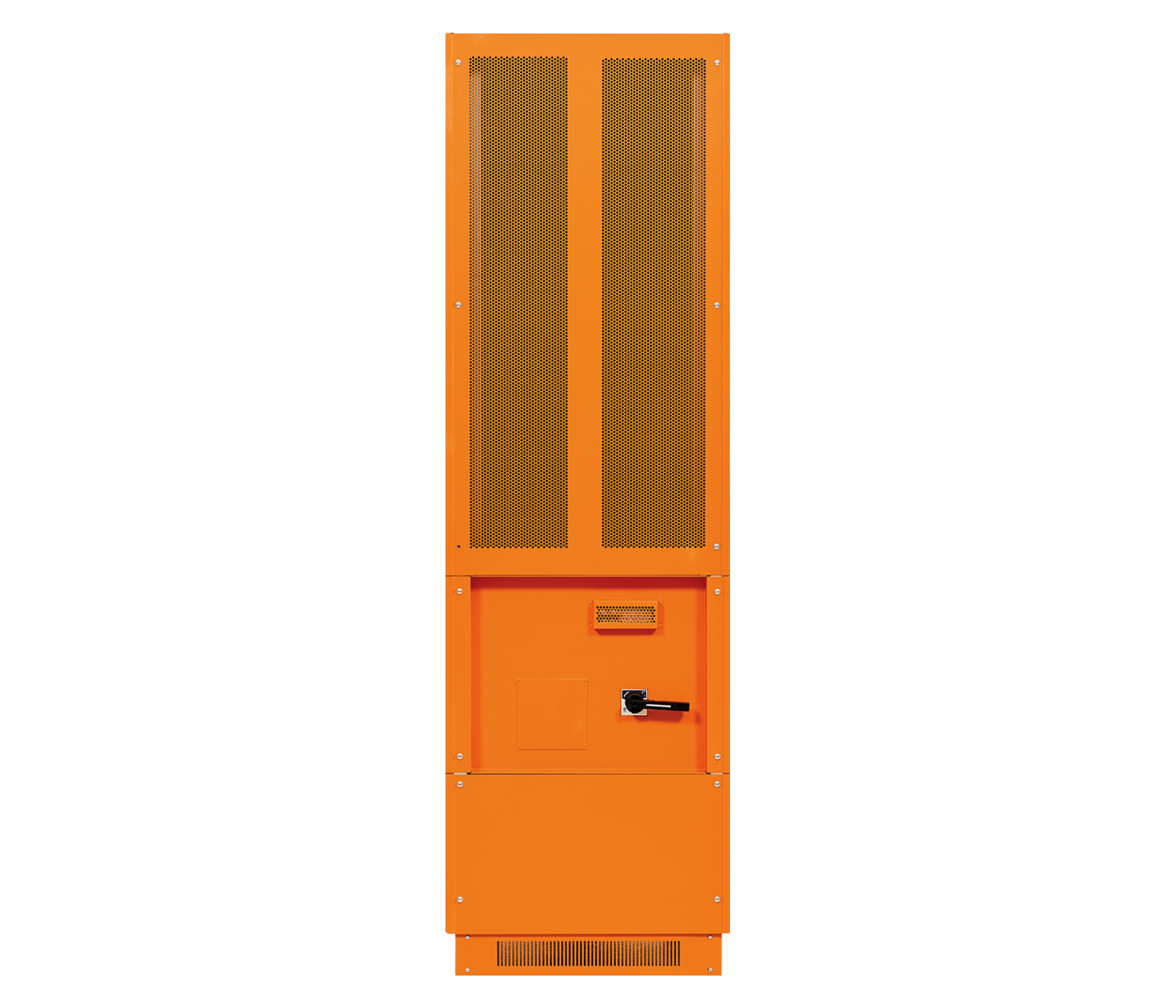

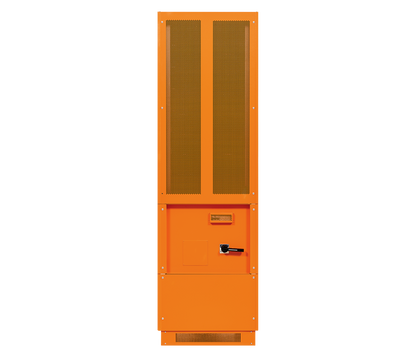

UPS Solutions 40kVA Scalable to 1040kVA 3:3 Scalable Online UPS System XRTM-3PH-40KVA-1040KVA
UPS Solutions 40kVA Scalable to 1040kVA 3:3 Scalable Online UPS System XRTM-3PH-40KVA-1040KVA
Couldn't load pickup availability
Description
40kVA / 40kW
Input: 380/400/415 VAC 3 Phase +N (Optional 220/380 VAC -37% +22% 3P+N+PE)
Output: Hardwire 3-phase in / out
Batteries: Optional
Communication Management: Dry Contact / SNMP Card / Modbus Card / RS485 Card
Warranty: 1 years repair or replace - Additional warranty and maintenance services available
Runtime: Scalable Internally and with Additional External Battery Cabinets to increase runtime
UPS Technology: On-line double conversion 3 +1 parallel operation
UPS Runtime: Scalable Runtime
UPS Topology: Online Double Conversion
Form Factor: Tower Only
Wiring Type: Three Phase Input / Output
Wiring Input: 20amp Breaker 3-Pole Hardwired
Dimensions: W x 860mm L x 3000mm H x 2000mm
Part Number: XRTM-3PH-40KVA-1040KVA
Contact UPS Solutions
For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing sales@upss.com.au or calling 1300 555 992.
