UPS Solutions

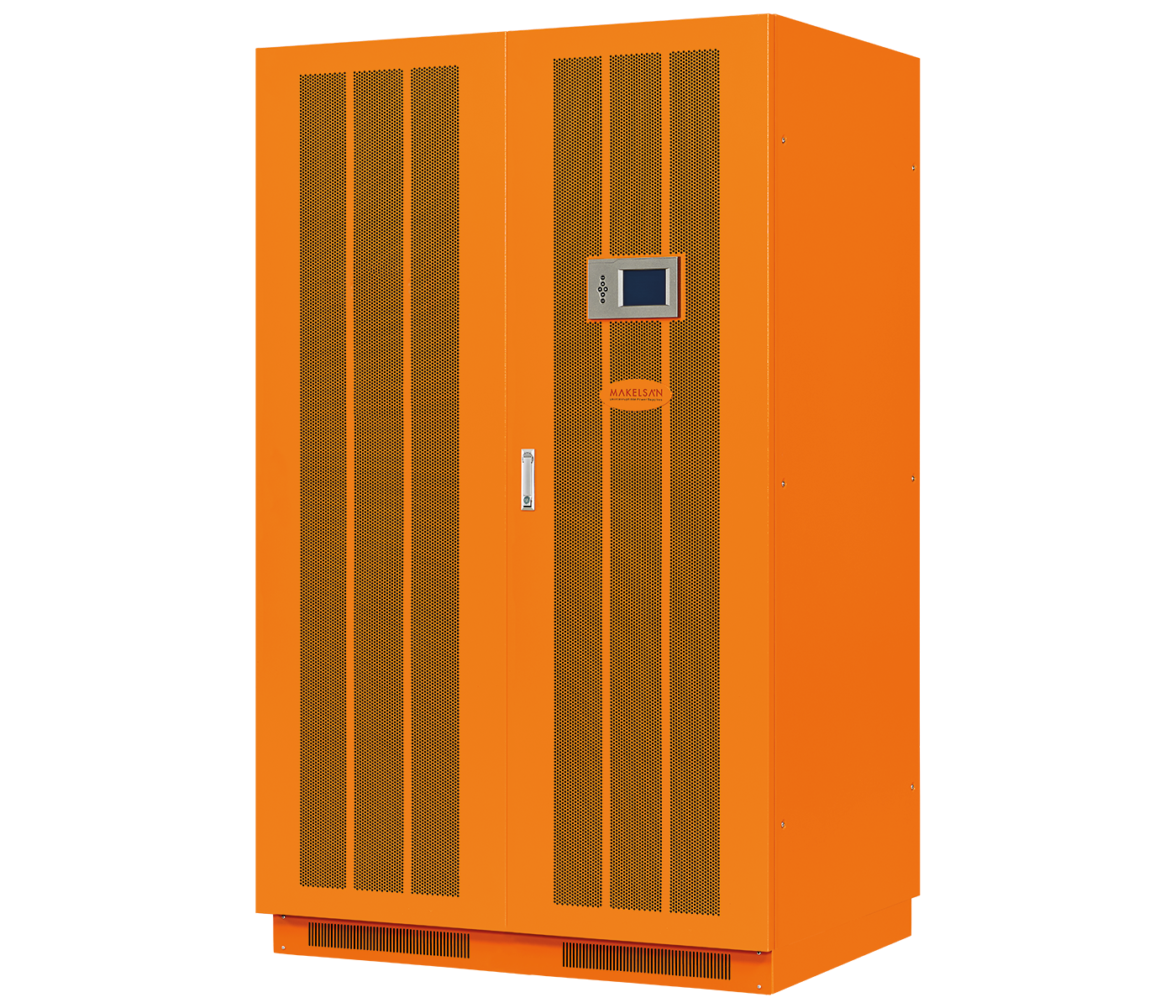

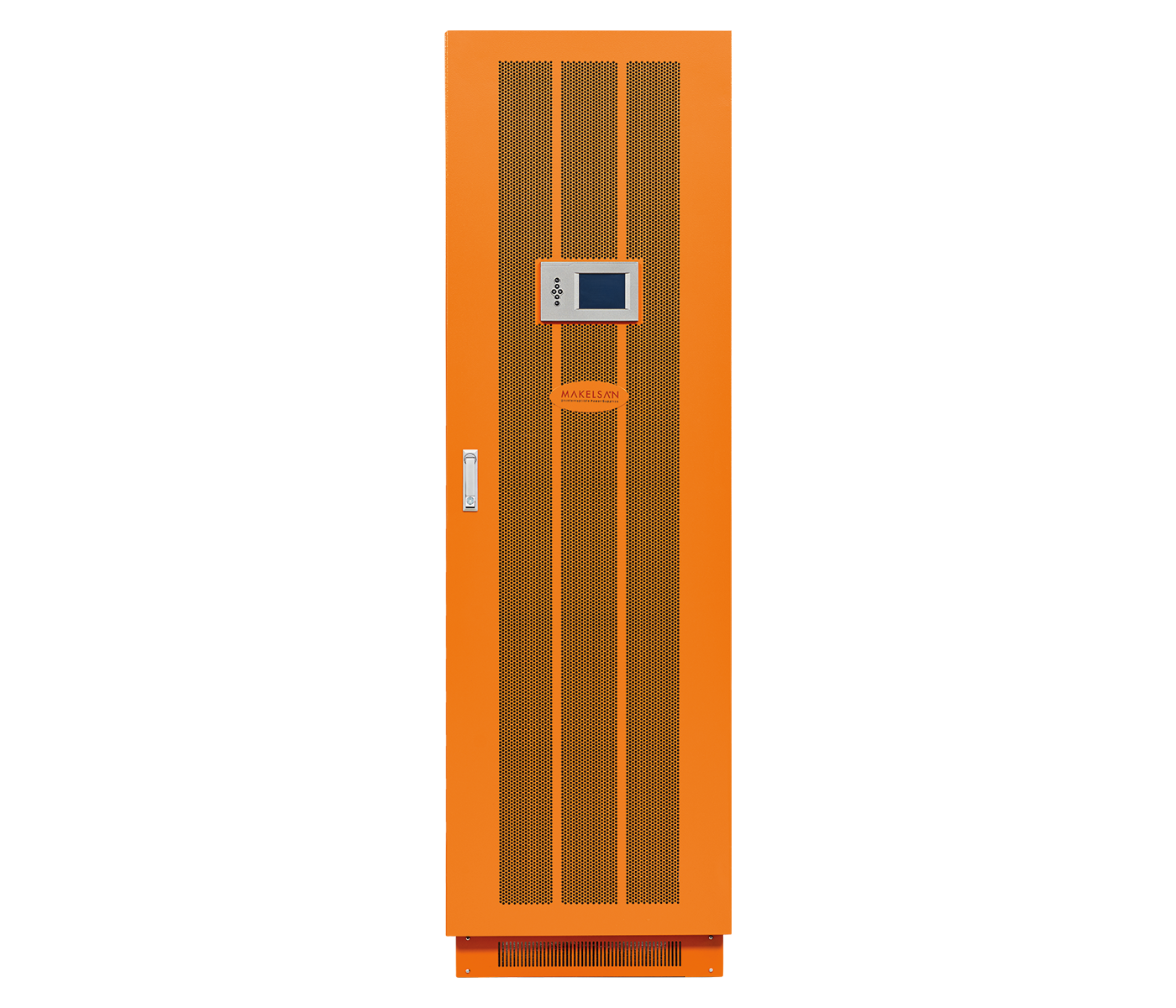

UPS Solutions 25kVA Scalable to 250kVA 3:3 Scalable Online UPS System XRTM-3PH-25KVA-250KVA

UPS Solutions 25kVA Scalable to 250kVA 3:3 Scalable Online UPS System XRTM-3PH-25KVA-250KVA

Shipping calculated upon quotation.
KVA
Topology
Wiring Type
View full details

Description

25kVA / 25kW

Input: 380/400/415 VAC 3 Phase +N (Optional 220/380 VAC -37% +22% 3P+N+PE)
Output: Hardwire 3-phase in / out

Batteries: Optional
Communication Management: Dry Contact / SNMP Card / Modbus Card / RS485 Card
Warranty: 1 years repair or replace - Additional warranty and maintenance services available
Runtime: Scalable Internally and with Additional External Battery Cabinets to increase runtime
UPS Technology: On-line double conversion 3 +1 parallel operation

UPS Runtime: Scalable Runtime
UPS Topology: Online Double Conversion

Form Factor: Tower Only
Wiring Type: Three Phase Input / Output
Wiring Input: 20amp Breaker 3-Pole Hardwired

Dimensions: W x 600mm L x 1100mm H x 2000mm
Part Number: XRTM-3PH-25KVA-250KVA
