APC

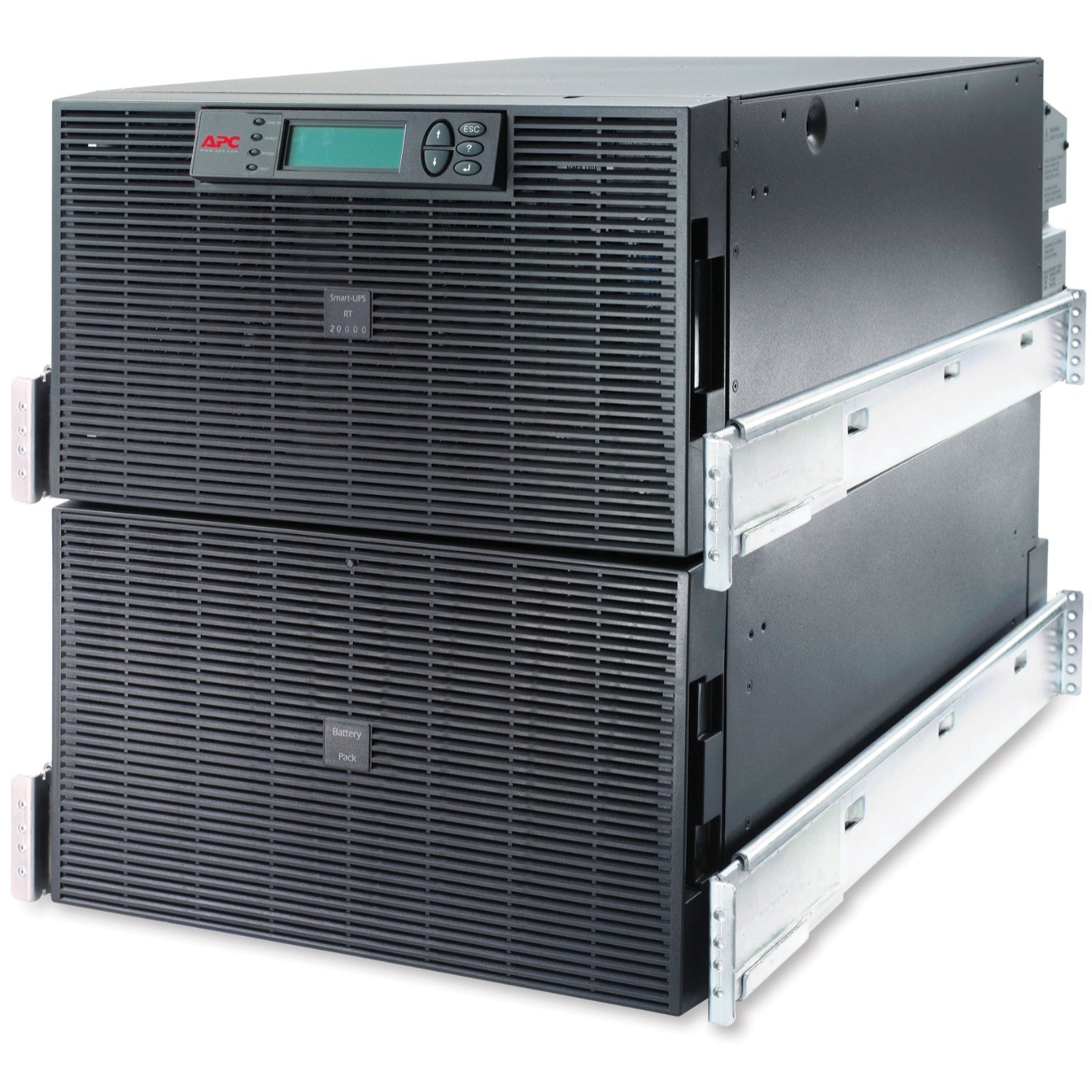

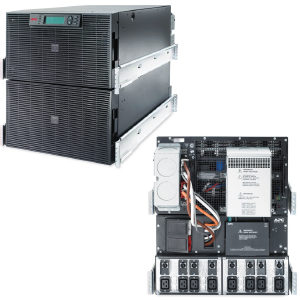

APC Smart-UPS RT 20kVA RM Online w/ SNMP Card SURT20KRMXLI-ASU

APC Smart-UPS RT 20kVA RM Online w/ SNMP Card SURT20KRMXLI-ASU

Shipping calculated upon quotation.
kVA
Topology
Wiring Type
View full details

Description

20000VA/16000W

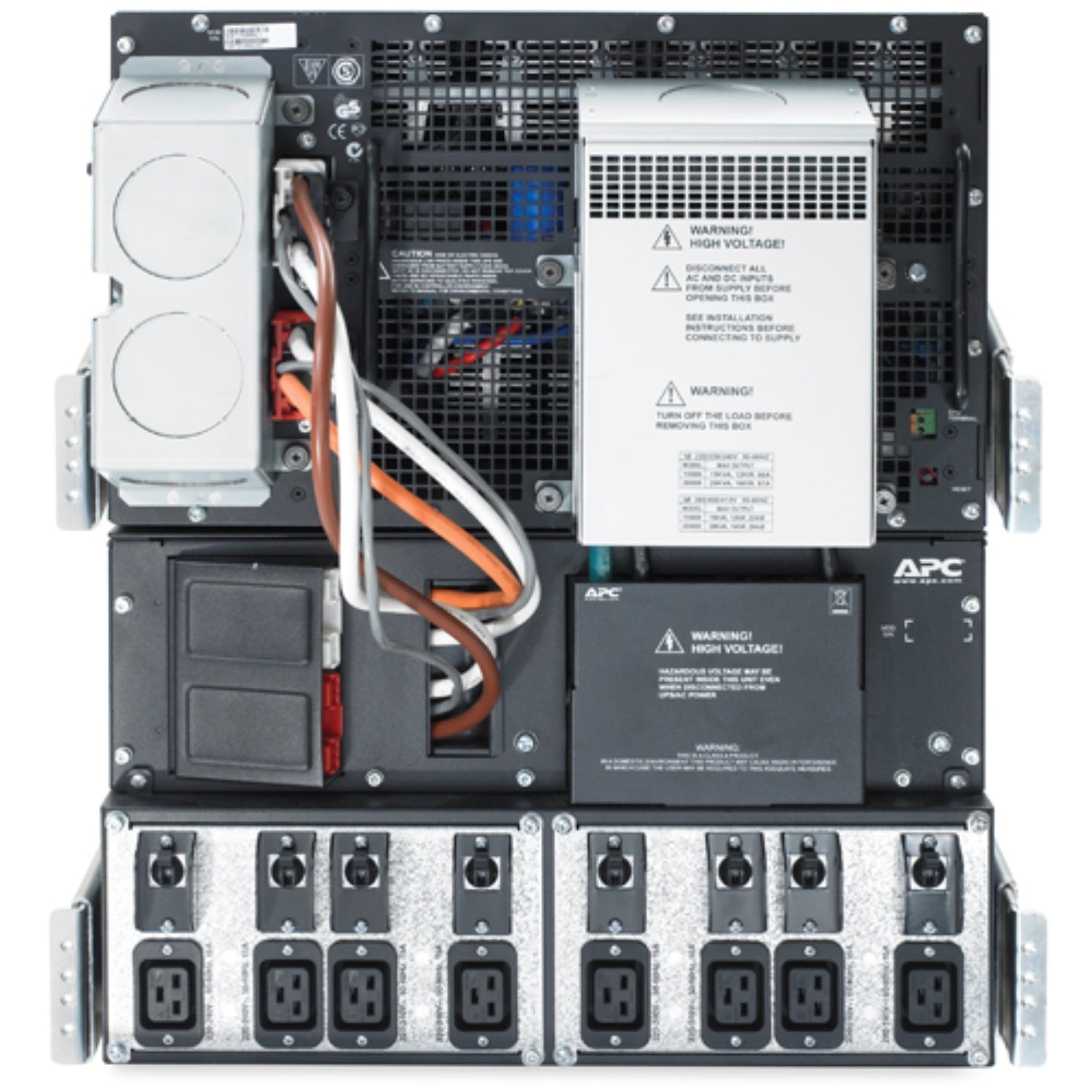

Input: 230 V or 400 V - Hardwire 3-wire (1PH + N + G); Hardwire 5-wire (3PH + N + G) Output: (1) Hard Wire 3-wire (H N + G) (1) Hard Wire 5-wire (3PH + N + G) (8) IEC 320 C19

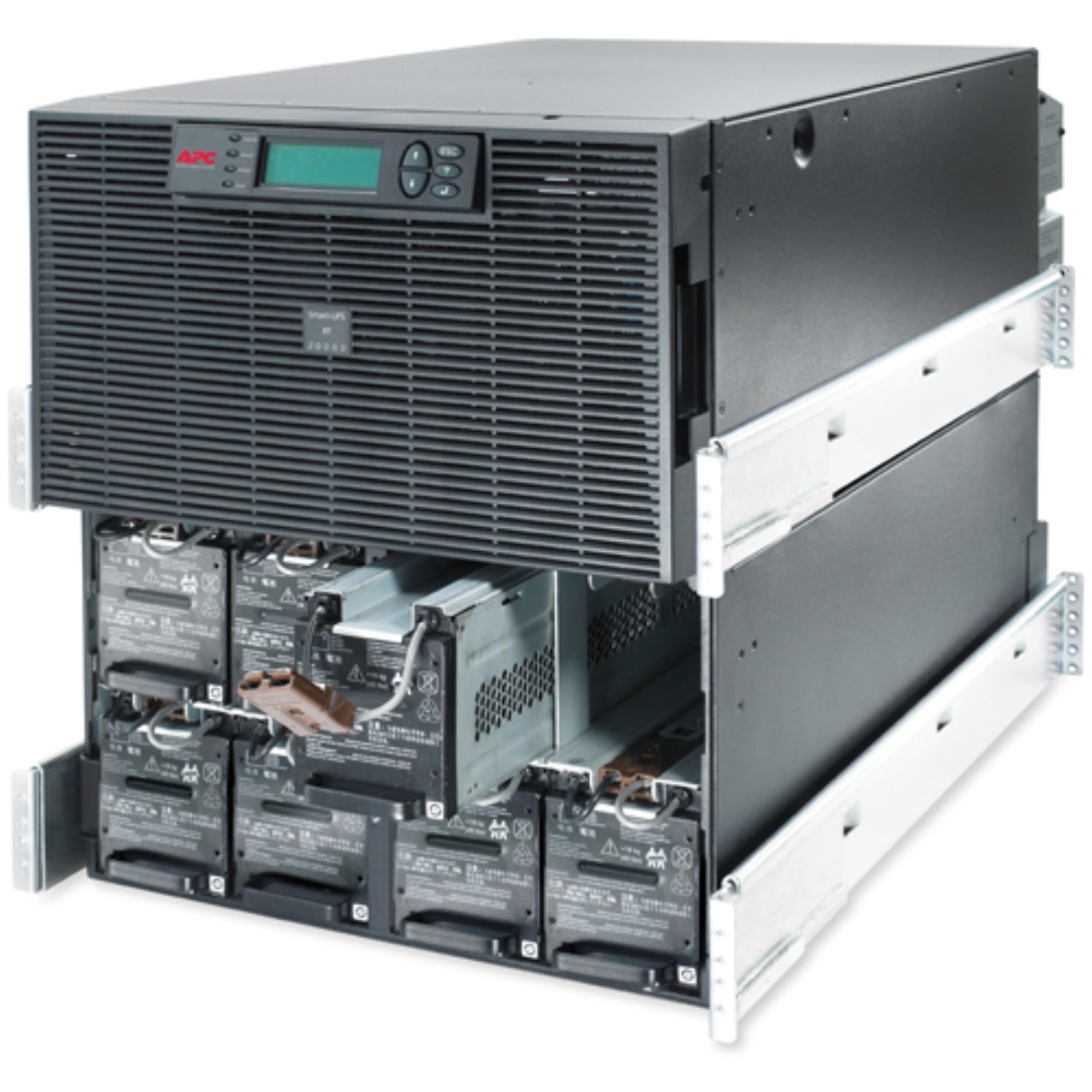

Batteries: Lead Acid - Replacement Battery Cartridge RBC44 (requires 4 x kits)
Communication Management: DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
Warranty: 2 years repair or replace
Runtime: Extended Runtime
Form Factor: Rack Mount Only
Wiring Type: Three Phase Input / Single Phase Output
Dimensions: 533 x 432 x 773 (mm)
Part Number: SURT20KRMXLI-ASU

Contact UPS Solutions

For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing sales@upss.com.au or calling 1300 555 992.
