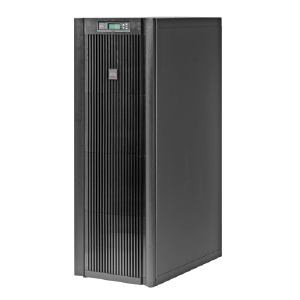

20kVA 400V 2 Int Battery Modules Expandable to 4 SUVTP20KH2B4S
20kVA 400V 2 Int Battery Modules Expandable to 4 SUVTP20KH2B4S
Couldn't load pickup availability
Description
20kVA/16kW
Input: 40Amps per phase - 50A Breaker 3-Pole - Hardwired Input/Output - 10mm-2 Output: (1) Hard Wire 4-wire (3PH + G), (1) Hard Wire 5-wire (3PH + N + G), (1) Screw Terminals
Batteries: SYBT4 - Battery Module for Symmetra PX, Smart-UPS VT or Galaxy 3500
Communication Management: DB-9 RS-232, 10/100 Ethernet SNMP
Warranty: 2 years repair or replace

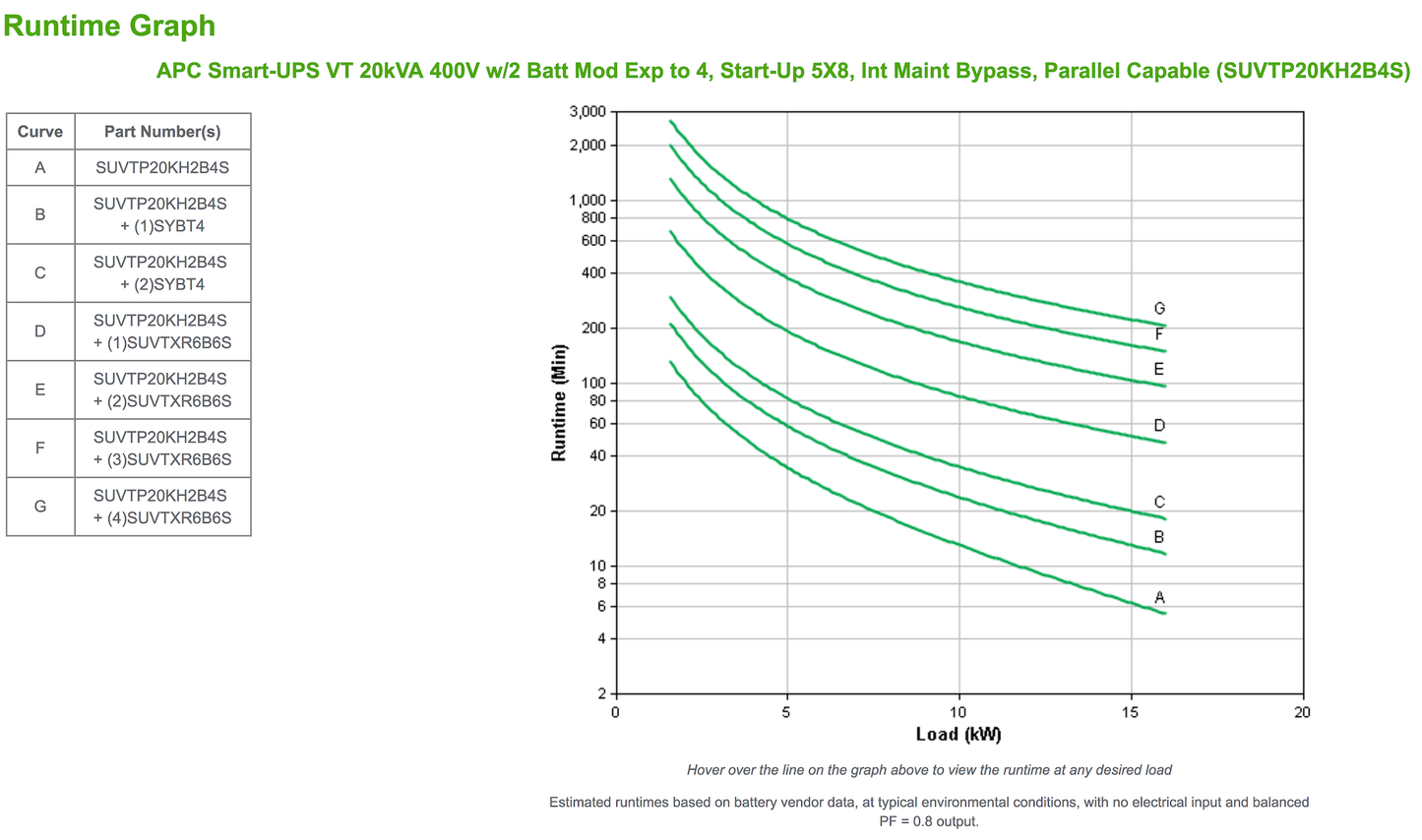

Runtime: Extended Runtime
Form Factor: Tower Only
Wiring Type: Three Phase Input / Output
Dimensions: 559 x 813 x 1499 (mm)
Part Number: SUVTP20KH2B4S
APC Smart-UPS VT Accessories
Contact UPS Solutions
For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing sales@upss.com.au or calling 1300 555 992.
