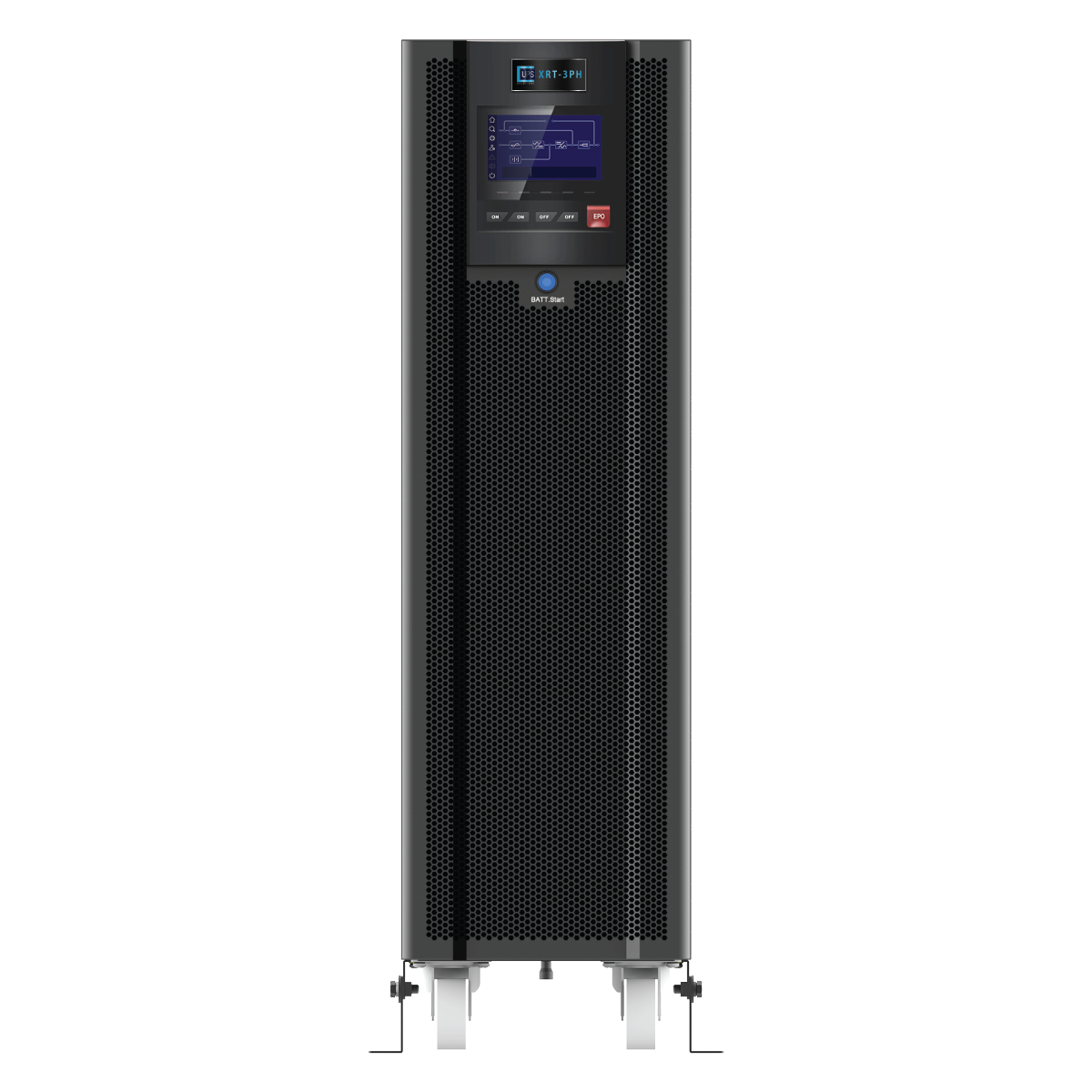

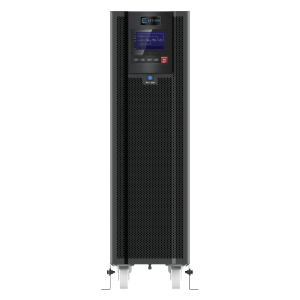

UPS Solutions 40KVA/40KW 3:3/3:1/1:1 Phase Online UPS System XRT-3PH-40KVA
UPS Solutions 40KVA/40KW 3:3/3:1/1:1 Phase Online UPS System XRT-3PH-40KVA
Shipping calculated upon quotation.
Couldn't load pickup availability
Description
40kVA/40kW
Designed for server room and data centre applications, the XRT 3-Phase Series adopts double-conversion topology to provide seamless Pure Sine Wave output.
The XRT 3-Phase series also adopts ECO Mode to save on energy costs, Smart Battery Management (SBM) to extend battery lifespan, and multifunction LCD readout to display precise information. The power management software allows users to easily control and monitor the UPS system.
Key Features:
- Unity Power Factor kW=kVA
- Anti Corrosion Resistant Coating On PCB Boards
- Dust Filter Protection
- Includes Industry Leading 10-Year Design Life Batteries, Refer to Brochure.
- Includes Network Card Pre-Installed
- Includes Dry Contact Card Pre-Installed
- Includes Battery Temperature Sensor
- Complimentary Upgrade To 4:3 Inch Touch Screen
- 3 Phase In/3 Phase Out (3:3) Standard
- 3:1 or 1:1 conversion complimentary if required (Please ask your sales representative)
- Generator Compatible
- UPS Parallel Expansion Kit Available (Please ask your sales representative)
- Parallel of 2 Units Can Share Common Battery Bank
Industry First Comprehensive Start-Up Package:
- Commissioning In-house or On-site within 100KM of CBD (Outside incurs travel cost)
- 2-Year Australian Warranty
- 2-Year Australian Bi-Yearly Service Package within 100KM of CBD (Outside incurs travel cost)
- 1-Year Australian Labour Warranty within 100KM of CBD (Outside incurs travel cost)
Specifications
| Part Number | |
|---|---|
| Part Number | XRT-3PH-40KVA |
| General Features | |
| Unity Power Factor | kW=kVA |
| Phase | 3:3, 3:1, 1:1 |
| Form Factor | Tower Only |
| UPS Topology | Online Double Conversion |
| Electrical Specifications | |
| Input Voltage | 80-280 (L-N), 138-485 (L-L) |
| Frequency | 40-70 Hz |
| Power Factor | ≥0.99 |
| THDi at Full Linear Load | <3% |
| Dual Main Input | Yes |
| Batteries | 16~40*9AH/12V |
| Output Capacity | 40 kW |
| AC/AC Efficiency (Max) | 96% |
| Output Voltage | 220/230/240±1% (L-N), 380/400/415±1% (L-L) |
| Frequency (Battery Mode) | 50/60±0.1 Hz |
| THDv | ≤2% (linear load), ≤4% (non-linear load) |
| Crest Factor | 3:1 |
| Overload Capability | 110% load for 60 mins, 130% load for 10 mins, 155% load for 1 min, above 155% load for 200ms |
| Operational Specifications | |
| EPO | Remote and Local |
| Cold Start | Yes |
| Communication Management | RS485+EPO+Dry contact (1 input, 5 output) (SNMP are optional in slot) |
| UPS Runtime | Extended Runtime |
| Physical Specifications | |
| Dimensions | 250×755×880 mm |
| Weight | With Battery - 98 kg (20×9AH), Without Battery - 50 kg, With TX - 143 kg |
| Noise | <55 dB |
| Working Temperature | -5~40 °C |
| Relative Humidity | 0 ~ 95%, no condensation |
| Altitude | 2000 m, no derate |
