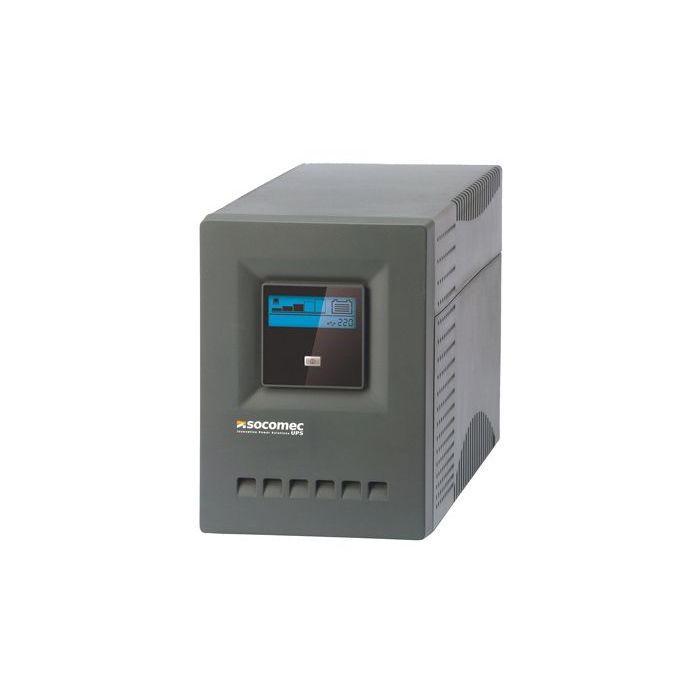

Socomec NETYS PE Single Phase UPS System 1000VA / 600W NPE-1000-LCD

Socomec NETYS PE Single Phase UPS System 1000VA / 600W NPE-1000-LCD

Shipping calculated upon quotation.
kVA
Topology
Wiring Type
View full details

Description

Part Number

NPE-1000-LCD

General Features

  • Unity Power Factor: kW=kVA
  • Phase: 1:1
  • Form Factor: Tower Only
  • UPS Topology: Online Double Conversion

Electrical Specifications

  • Input Voltage: 230V, 170V-280V
  • Frequency: 40-70 Hz
  • Power Factor: 0.6
  • Efficiency (Online Mode): 90%
  • Output Voltage: 230V ±10%

Operational Specifications

  • UPS Runtime: Extended Runtime
  • Communication Interfaces: USB

Physical Specifications

  • Dimensions: 145 x 345 x 165 mm
  • Weight: 9.7 kg
  • Noise Level: <45 dBA
  • Working Temperature: 0°C to +40°C

Contact UPS Solutions

For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing sales@upss.com.au or calling 1300 555 992.
