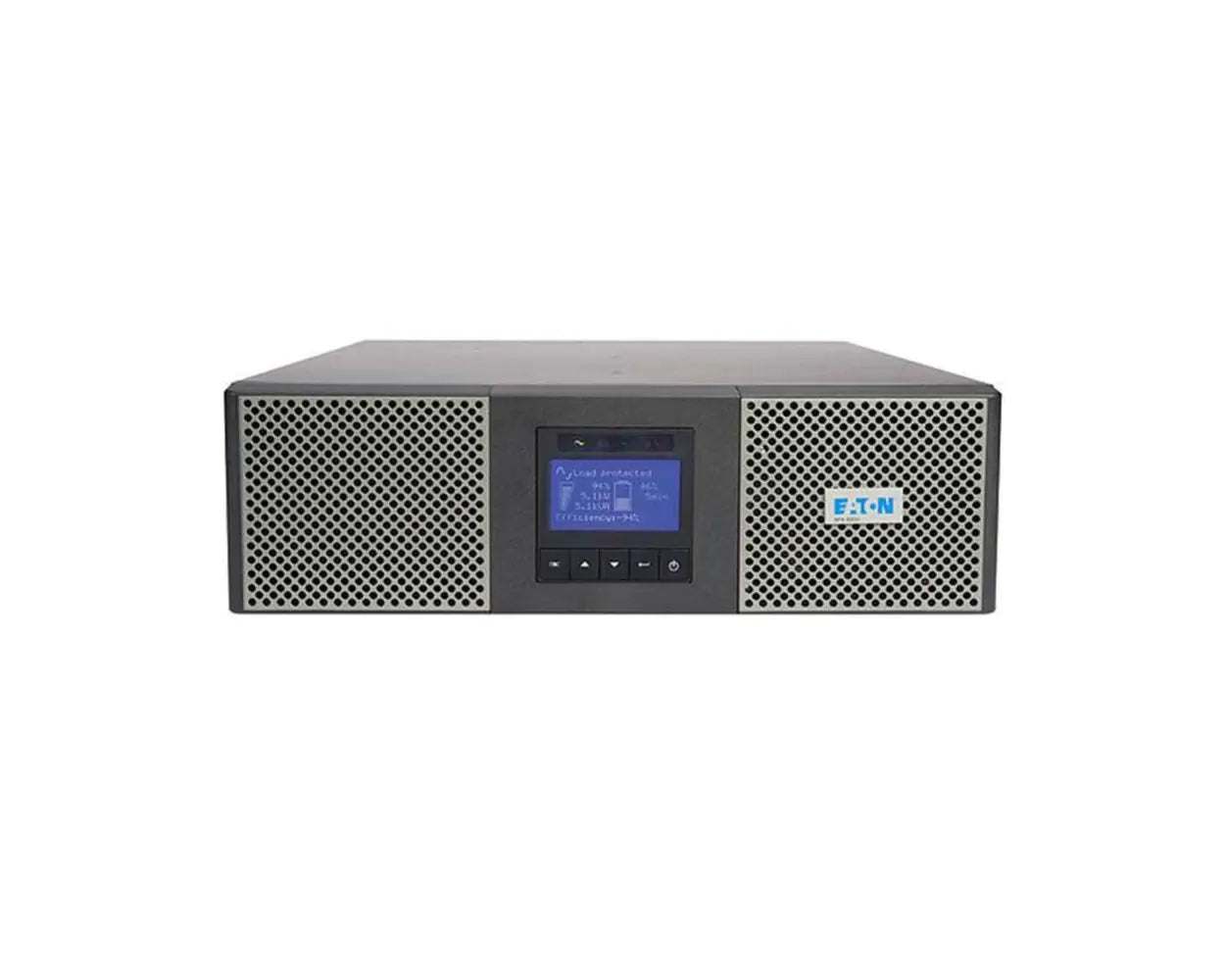

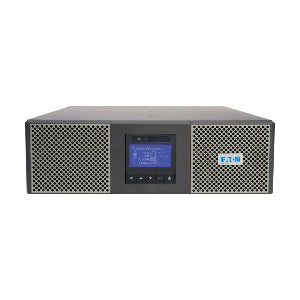

Eaton 9PX 5kVA 1:1 conformally coated UPS (internal batteries) 9PX5Ki-CC

5kVA 4500W

Input: Hardwired

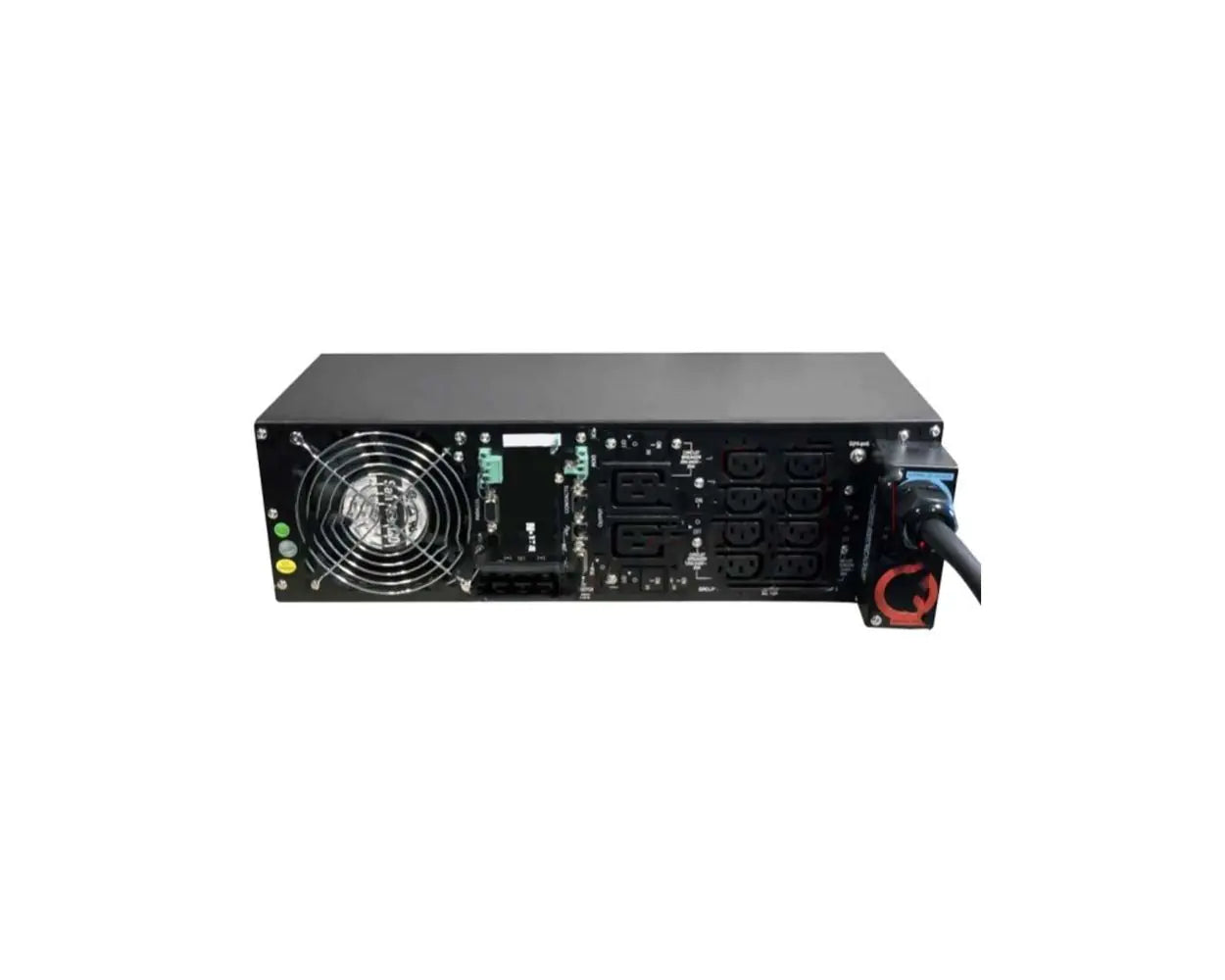

Output: Hardwired + (8) IEC C13 (10A) + (2) IEC C19 (16A)
Communication Management: 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation, Communication Slot 1 slot for Network-MS card, ModBus-MS or Relay-MS cards.
Warranty: 3 years on electronics, 2 years on battery
Runtime: Extended Runtime
Form Factor: Rack/Tower
Wiring Type: Three Phase Input / Single Phase Output
Dimensions: 440 x 685 x 130 (mm)
Part Number: 9PX5Ki-CC
Weight:
 48(kg)
