Eaton

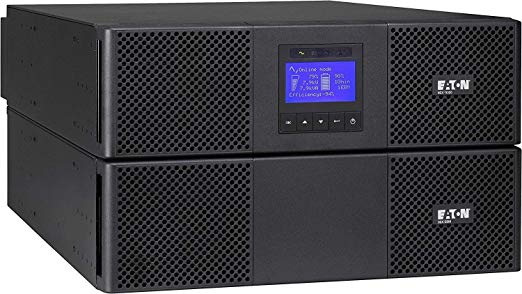

9SX 6kVA UPS (including Rail kit as std) 9SX6KIRT
9SX 6kVA UPS (including Rail kit as std) 9SX6KIRT
Couldn't load pickup availability
Description
6000VA/4800W
Input: Hardwired - see manual for terminal block layout Output: (8) IEC-320-C13,(2) IEC-320-C19,Hardwired - see manual for terminal block layout
Batteries: 13/10 minutes with internal batteries (9SX + 1 External Battery Pack = 60/40 min) (9SX + 2 External Battery Pack = 220/150 min)
Communication Management: 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off,1 slot for Network-MS card, ModBus-MS or Relay-MS cards.
Warranty: 2 years warranty
Runtime: Extended Runtime
Form Factor: Rack/Tower
Wiring Type: Single Phase
Dimensions: 440 x 685 x 130 (mm)
Part Number: 9SX6KIRT
Contact UPS Solutions
For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing sales@upss.com.au or calling 1300 555 992.
