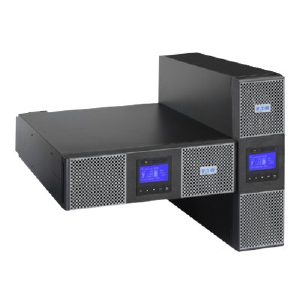

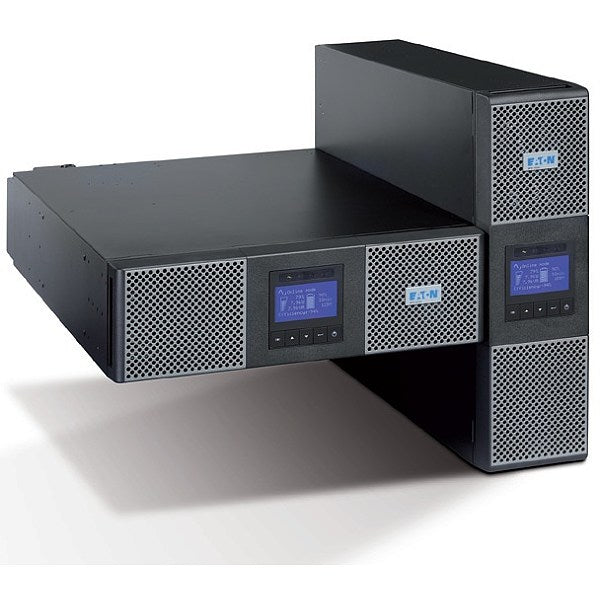

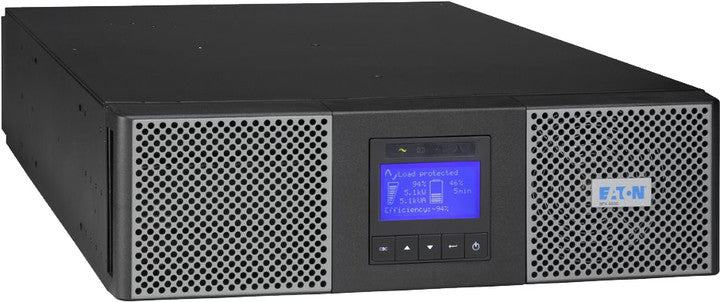

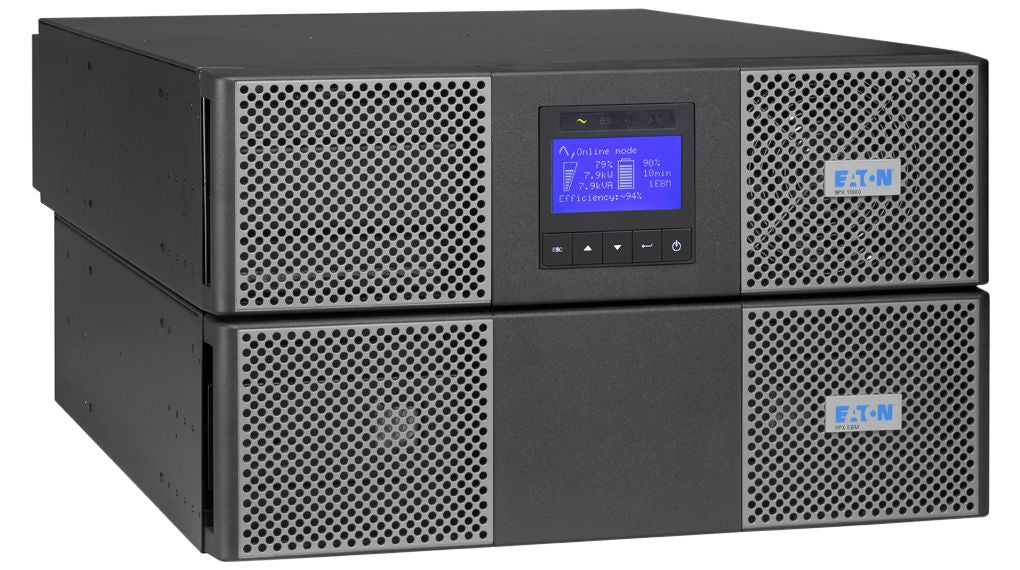

9PX 8kVA 3:1 Power Module (no internal batteries, add 1 x 9PXEBM240 minimum to make UPS) 9PX8KIPM31

8000VA/7200W

Input: Hardwired Output: Hardwired
Communication Management: 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation
Warranty: 3 years electronics, 2 years battery
Runtime: Extended Runtime
Form Factor: Rack/Tower
Wiring Type: Three Phase Input / Single Phase Output
Dimensions: 440 x 700 x 130 (mm)
Part Number: 9PX8KIPM31
