XRT6 ONLINE SERIES
1.5/3/6/10KVA
✓ Designed for Extra Long Runtime
✓ 10 Year Design Life Batteries
✓ Reduced Cost

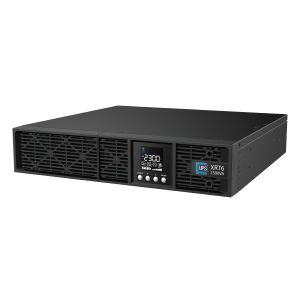

XRT6 ONLINE SERIES 1500VA-10000VA
The XRT6 Online UPS Series is ideal for servers, networking equipment, workstations and other mission-critical applications which require pure sine wave power. Featuring Online Double-Conversion Topology and Zero Transfer Time, the UPS provides consistent and seamless power to critical loads.
Numerous engineering excellencies showcase in this enterprise-level application including economy mode, Smart Battery Management and External Battery Module compatible, which further enhance its overall performance and capability. The placement-wise design could be configured in either Tower (T) or Rackmount (RM) form with the attached stands and skids to make the most of your workspace.
10 YEAR-LONG LIFE BATTERIES INCLUDED AS STANDARD
• Long Life Batteries - 10 Year Design Life
• Reduced Cost - The XRT6 series reduces the
need for replacement batteries, saving on
replacement costs and reducing the
environmental impact by using fewer batteries over the lifetime of the UPS system.
• Fire Retardant - Up to 2 hours fireproof
FEATURES & BENEFITS
• Online (Double Conversion) UPS Topology
• ECO Mode
• UPS Parallel Expansion
• Generator Compatible
• Overload Protection
• Zero Transfer Time
• Smart Battery Management (SBM)
• Extended Battery Module (EBM)
• Surge and Spike Protection
• EMI and RFI Filtration
• LCD Status Display
• Emergency Power Off (EPO) Port
• PowerPanel® Management Software
• SNMP/HTTP Remote Management Capability (Optional)
• Rack/Tower Convertible Configurations
XRT6 5 YEAR WARRANTY UPGRADE
Upgrades both the UPS and Internal Batteries to 5 Years in Total
• Extends Standard Factory Warranty to a total of (5) years
• UPS will be repaired if possible
• If UPS diagnosed as faulty equivalent replacement unit will be supplied
• Telephone technical support
• Includes consumables (cables, batteries)
• Covers Power Modules
• Please refer to Terms and Conditions
XRT6 ONLINE
| PART NUMBER | BRIEF DESCRIPTION | VA / Wattage | DIMENSIONS (WxHxD) | PRICE |
|---|---|---|---|---|
| XRT6-1500L | UPS SOLUTIONS XRT6 ONLINE UPS 1.5KVA W/ LONG LIFE BATTERY 230V RACK/TOWER 2U | 1500VA/1350W | 440 x 90 x 442 mm (2U) | $1,590.00 |
| XRT6-3000L | UPS SOLUTIONS XRT6 ONLINE UPS 3KVA W/ LONG LIFE BATTERY 230V RACK/TOWER 2U
| 3000VA/2700W | 440 x 90 x 610 mm (2U) | $2,790.00 |
| XRT6-6000L | UPS SOLUTIONS XRT6 ONLINE UPS 6KVA W/ LONG LIFE BATTERY 230V RACK/TOWER 6U | 6000VA/5400W | 440 x 135 x 490mm (3U) | $5,190.00 |
| XRT6-10000L | UPS SOLUTIONS XRT6 ONLINE UPS 10KVA W/ LONG LIFE BATTERY 230V RACK/TOWER 6U
| 10000VA/9000W | 440 x 135 x 490mm (3U) | $6,290.00 |
XRT6 ACCESSORIES
COMMUNICATION & SNMP
| PART NUMBER | BRIEF DESCRIPTION | PRICE |
|---|---|---|
| XRT6-WEBSNMP | XRT6 Web/SNMP Management Card | $350.00 |
| XRT6-ENVSENSOR | XRT6 Environmental Monitoring device and Dry Contacts Outputs | $220.00 |
| XRT6-RELAYCARD | XRT6 Relay Card | $290.00 |
EXTENDED BATTERY MODULES (EBM)
| PART NUMBER | BRIEF DESCRIPTION | BATTERY | DIMENSIONS (WxHxD) | PRICE | MAX. |
|---|---|---|---|---|---|
| XRT6-48VBL | Extended Run Battery EBM for 1500VA UPS 48V w/ Long Life Battery 2U | Lead Acid | 440 x 85 x 430 mm (2U) | $990.00 | Maximum 3 Ext Battery Packs |
| XRT6-72VBL | Extended Run Battery EBM for 3000VA UPS 72V w/ Long Life Battery 2U | Lead Acid | 440 x 85 x 610 mm (2U) | $1,290.00 | Maximum 3 Ext Battery Packs |
| XRT6-192VBL | Extended Run Battery EBM for 6/10KVA UPS 192V w/ Long Life Battery 3U | Lead Acid | 440 x 130 x 790mm (3U) | $2,190.00 | Maximum 10 Ext Battery Packs |
EXTENSION CABLES
| PART NUMBER | BRIEF DESCRIPTION | PRICE |
|---|---|---|
| XRT6-BPEXT-48V5M | XRT6 1500VA Battery Extension Cable 5M | $150.00 |
| XRT6-BPEXT-72V5M | XRT6 3000VA Battery Extension Cable 5M | $150.00 |
| XRT6-BPEXT-192V5M | XRT6 6000VA & 10000VA Battery Extension Cable 5M | $250.00 |
POWER CABLES
| PART NUMBER | BRIEF DESCRIPTION | PRICE |
|---|---|---|
| K3759-005 | IEC-13 to C14 Power Cable 0.5M | $5.00 |
| K3759-001 | IEC-13 to C14 Power Cable 1.0M | $6.00 |
| K3759 | IEC-13 to C14 Power Cable 2.0M | $8.00 |
| K3791 | Male IEC C14 to Female GPO Australian Plug 150mm | $15.00 |
| K3743-010 | IEC-19 to C20 Power Cable 1.0M | $17.00 |
| K3743-020 | IEC-19 to C20 Power Cable 2.0M | $19.00 |
| K3743-050 | IEC-19 to C20 Power Cable 5.0M | $27.00 |
SURGE PROTECTION
| PART NUMBER | BRIEF DESCRIPTION | TYPE | WEIGHT | PRICE |
|---|---|---|---|---|
| 10A-SPD | UPS SOLUTIONS SINGLE PHASE SURGE FILTERS 10A, IEC 10A INPUT/OUTPUT SOCKETS | Incurrent Surge Protection | 5KG | $278.00 |
| 16A-SPD | UPS SOLUTIONS SINGLE PHASE SURGE FILTERS 16A, IEC 16A INPUT/OUTPUT SOCKETS | Incurrent Surge Protection | 5KG | $298.00 |
TRADE-IN BY
UPS SOLUTIONS
Trade-In ANY Existing UPS System and Receive Cash Back when you purchase a new XRT6 UPS System from UPS Solutions.
Includes Free Collection of Your Old
UPS System!
ACCESSORIES
SCALABLE XRT6 RUNTIME
A UPS provides essential backup power, however, the UPS alone can only provide a certain amount of runtime depending on the Load size. If more runtime is required, the XRT6 has the ability to simply add plug-n-play external battery packs to scale up to several hours of runtime.
EXTENDED RUN BATTERY PACKS
A UPS typically has its own internal battery packs to support the Load (approx. runtime is
4-10 minutes at Full Load or 15 minutes at Half Load). However, the XRT6 Range offers the
ability to add extra battery packs to increase the runtime. Typically, each extended run
battery pack will provide an extra 20-60 minutes runtime each depending on the Load.
Add up to 8 or 10 additional battery packs, Rack Height 2U or 3RU .
All of our XRT6 UPS & Extended Run Battery Packs come as standard with rail kits.
SURGE PROTECTION
UPS Solutions surge protection devices provide added surge protection for both the UPS and your valuable equipment.
This device is particularly suitable for use with plug-in UPS systems, servers, instrumentation, POS systems, specialised industrial and commercial portable equipment where a high degree of protection is required on mission-critical applications in harsh electrical environments.
Compatible with: UPS Solutions XRT6, APC Smart-UPS, Vertiv GXT4, Eaton 10Amp UPS Systems
TIP!
Connecting one of our SPD Surge protection devices to the UPS will give
15 times more surge protection to both
the UPS and the connected equipment.
INSTALLATION & COMMISSIONING SERVICES
INSTALLATION SERVICE
UPS Solutions can provide experienced technicians. Services include but not limited to:
- Pre-site survey
- Planning and Project Management
- Unpacking and Assembly Service
- Electrical installation and wiring
(Pricing varies based on UPS location and environment, speak to one of our consultants today to arrange
an installation service).
COMMISSIONING SERVICE
This service provides an experienced UPS electrician to verify proper wiring of the system, energise the
hardware, and provide the customer with basic operator training on the system started up if requested.
ENQUIRE DIRECTLY
For UPS systems there is design and engineering that will need to be done so it is best to book a site inspection or enquire directly with our team by filling out the form, emailing SALES@UPSS.COM.AU or calling 1300 555 992.
