Powering Precision: Delving Into The Nuances Of UPS Commissioning

Powering Precision: Delving Into The Nuances Of UPS Commissioning

by Isaac Prakash October 20, 2023

Installing a new UPS system for your business is a significant investment, so taking the time to properly commission it is critical. UPS commissioning is a detailed process of tests, configuration, and documentation to ensure the system operates optimally and fulfils reliability expectations from day one.

Thorough commissioning acts as the foundation for achieving maximum UPS performance, safety, and longevity throughout its operational lifetime.

If you’d like to learn more about the nuances of proper UPS commissioning, read on and we’ll tell you everything there is to know.


Laying the Groundwork

Before installing and powering up the UPS, inspect the site and components. Ensure the location is dry and clean, has proper electrical/HVAC, and lacks vibrations that could otherwise negatively impact the UPS over time.

Visually inspect all parts to verify no damage occurred during shipping or storage that could compromise safety or function.

Taking these preparatory steps prevents avoidable issues down the line.


Minding the Electricals

Correct wiring is imperative for both performance and safety. Strictly follow manufacturer specifications and local electrical codes to connect all power and control cables properly. Double-check connections to avoid the introduction of fire or shock hazards.

It’s also critical to properly wire any external batteries according to technical guidelines. Improper UPS wiring can lead to all manner of upstream problems.


Mechanical Installation

Properly mounting the UPS ensures long-term reliability by reducing vibrations and stress on components. Securely fasten the frame and internal parts at designated load-bearing points strong enough to sustain the weight.

And don't forget environmental factors - air filters should slide in and out easily for maintenance, vents shouldn't be obstructed, etc.

A faulty mechanical installation can bring down the whole system so be mindful.


Starting Up and Testing

When first energising the UPS, do it gradually to avoid power surges. Once on, run comprehensive tests using load banks to validate that the UPS can handle everything from light loads to full capacity draws without issues.

Test every operational mode and alarm condition per manufacturer protocols. Only move forward once the system passes all initial performance tests with flying colours.


Calibrating and Configuring

UPS systems require thorough calibration and configuration to align with the specific environment and loads. Calibrate sensors, metres, and monitors to ensure accurate readings. Configure alarms, voltage parameters, notifications, and more based on the installation.

You don't want false alarms or the system responding poorly to events because factory defaults weren't properly adjusted during commissioning.

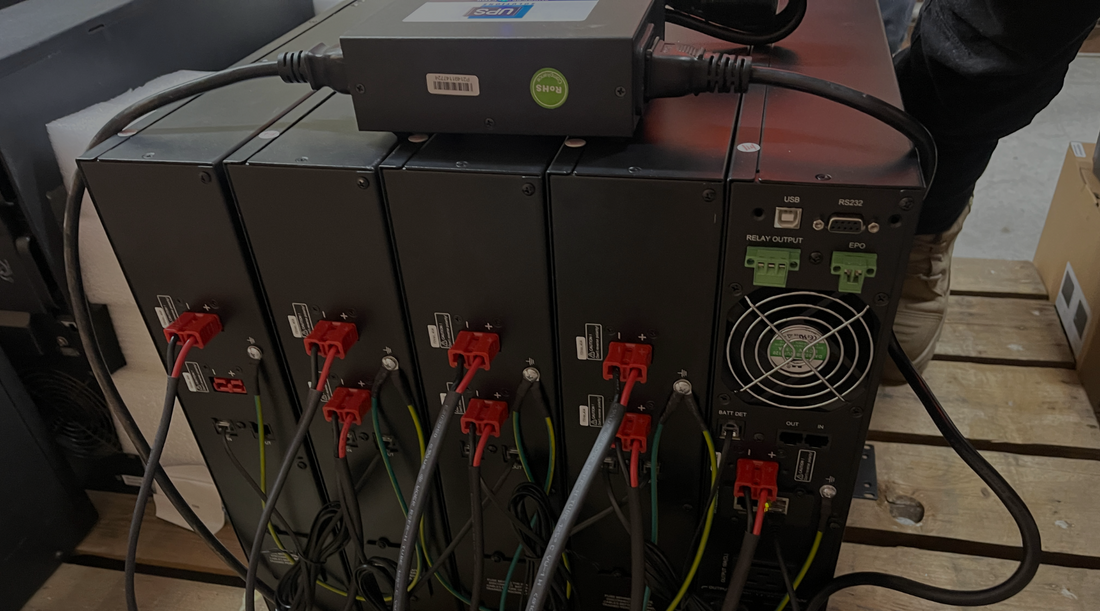

Optimal Battery Integration

Battery bank capacity, installation, and maintenance impact runtimes and overall efficiency. Strictly follow specifications when installing batteries, ensuring proper clearance, ventilation, cable gauges, and torque levels on all connections.

Run short discharge tests to validate projected backup times under load. Proper battery integration during commissioning is the key to reliable operation for years to come.


Connecting and Communicating

Integrate the UPS monitoring and control systems with connected equipment, building management systems, and remote monitoring dashboards. Perform end-to-end tests to confirm seamless real-time communication between the UPS and the other, relevant systems.

All software should be correctly configured with appropriate user privileges, alerts, data logs, and remote access.


Documenting and Reporting

Keep detailed records of all commissioning activities, including pre-checks, wiring diagrams, test results, configuration parameters, etc.

Thorough documentation provides a complete operational baseline of the system in its commissioned state. Any deviations or anomalies should be logged and addressed - never ignore commissioning phase irregularities.


Training and Handoff

Once the system is fully commissioned, train the end-users and facility managers. Review safety protocols, routine operation, maintenance needs, and basic troubleshooting. Officially hand over all documentation and manufacturer information.

Only retire the system from commissioning once users are fully prepared and empowered to operate it safely.


Continuity Through Maintenance

Commissioning represents the starting line, not the finish line. Regular preventive maintenance, periodic recalibration, and scheduled inspections must be followed to keep the UPS performing as designed.

View commissioning as the first step in an ongoing journey of excellence. The more effort you put in during these early stages, the better equipped your UPS will be to handle any power-related irregularities in the future.



Robust commissioning implementation provides peace of mind that the UPS system was expertly integrated for optimal reliability and functionality on day one and beyond.

Don't cut corners - a flawless commissioning process is an invaluable investment in any UPS system.

If you feel a little out of your depth, don’t panic! Our UPS experts can assist you with the installation and commissioning process for the best results.

But why choose UPS Solutions? How can our installation and commissioning services be of benefit to you? Simply contact us today and we’ll gladly answer any questions you may have.

We hope you’ve found this article insightful and wish you the very best of luck with establishing your UPS system today!
