The XRT6 Online Series Runtime Chart

THE XRT6 Online SERIES
RUNTIME CHART

The XRT6 Online UPS Series is ideal for servers, networking equipment, workstations and other mission-critical applications which require pure sine wave power. Featuring Online Double-Conversion Topology and Zero Transfer Time, the UPS provides consistent and seamless power to critical loads.

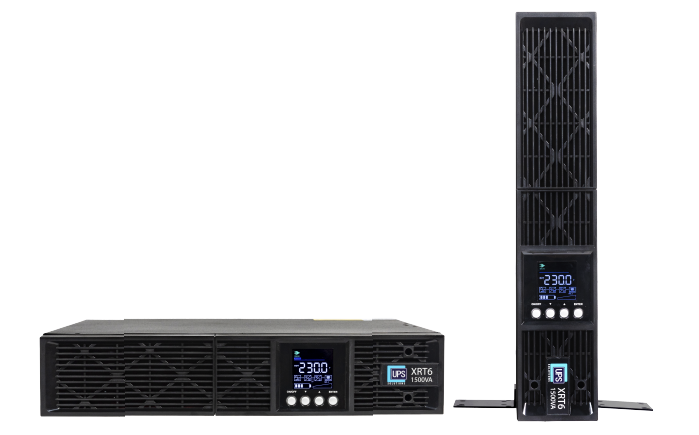

Numerous engineering excellencies showcase in this enterprise-level application including economy mode, Smart Battery Management and External Battery Module compatible, which further enhance its overall performance and capability. The placement-wise design could be configured in either Tower (T) or Rackmount (RM) form with the attached stands and skids to make the most of your workspace.

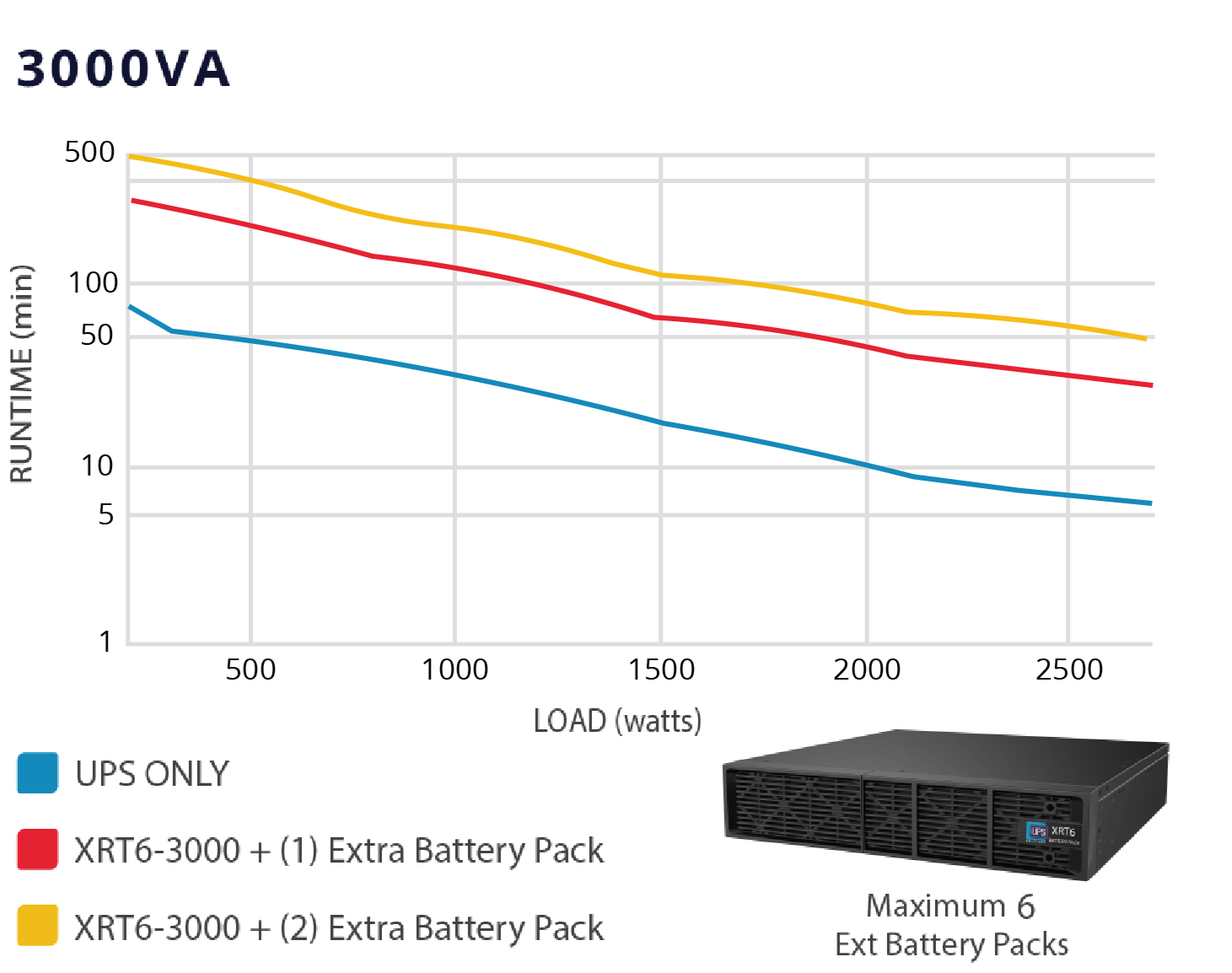

SCALABLE XRT6 RUNTIME

A UPS provides essential backup power, however, the UPS alone can only provide a certain amount of runtime depending on the Load size. If more runtime is required, the XRT6 has the ability to simply add plug-n-play external battery packs to scale up to several hours of runtime.

EXTENDED RUN BATTERY PACKS

A UPS typically has its own internal battery packs to support the Load (approx. runtime is 4-10 minutes at Full Load or 15 minutes at Half Load). However, the XRT6 Range offers the ability to add extra battery packs to increase the runtime. Typically, each extended run battery pack will provide an extra 20-60 minutes runtime each depending on the Load. Add up to 8 or 10 additional battery packs, Rack Height 2U or 3RU . All of our XRT6 UPS & Extended Run Battery Packs come as standard with rail kits.

xrt6 online ups systems

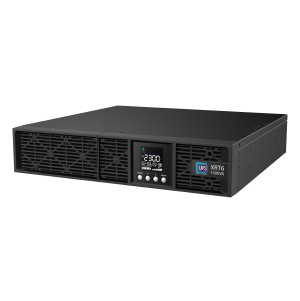

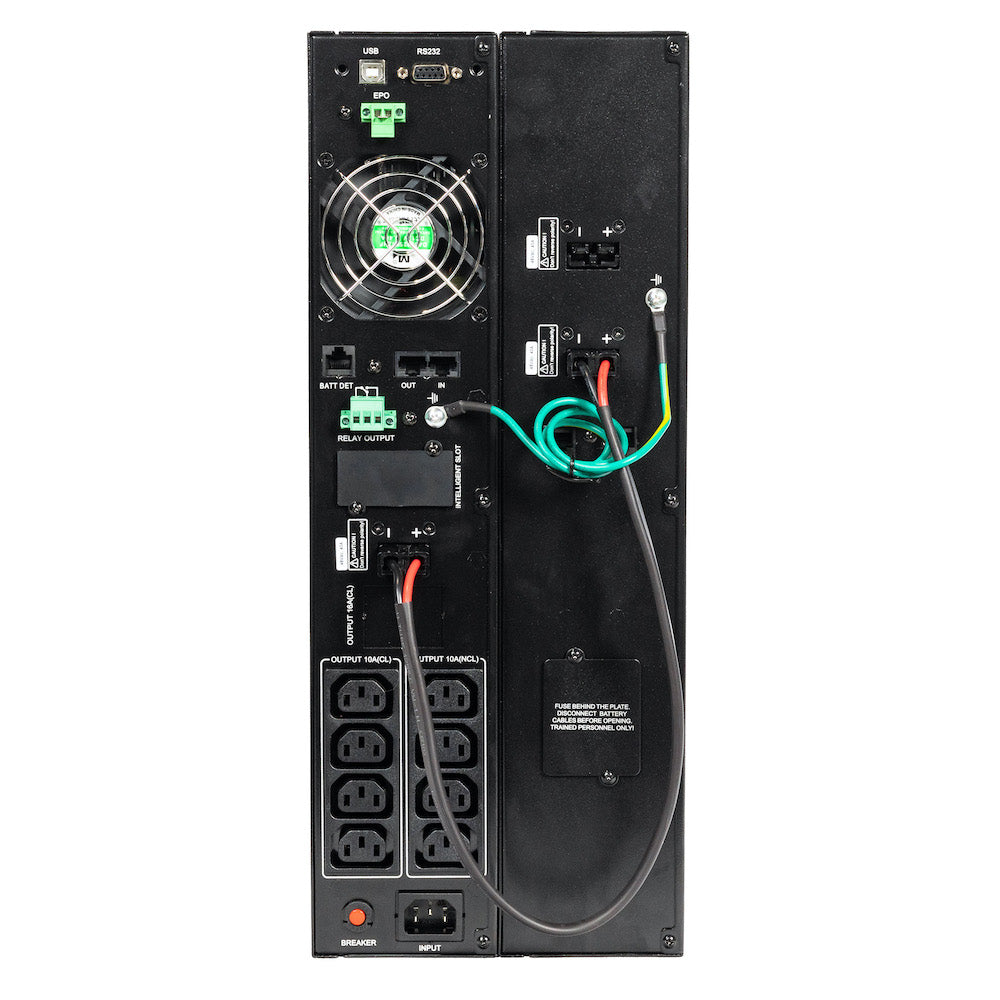

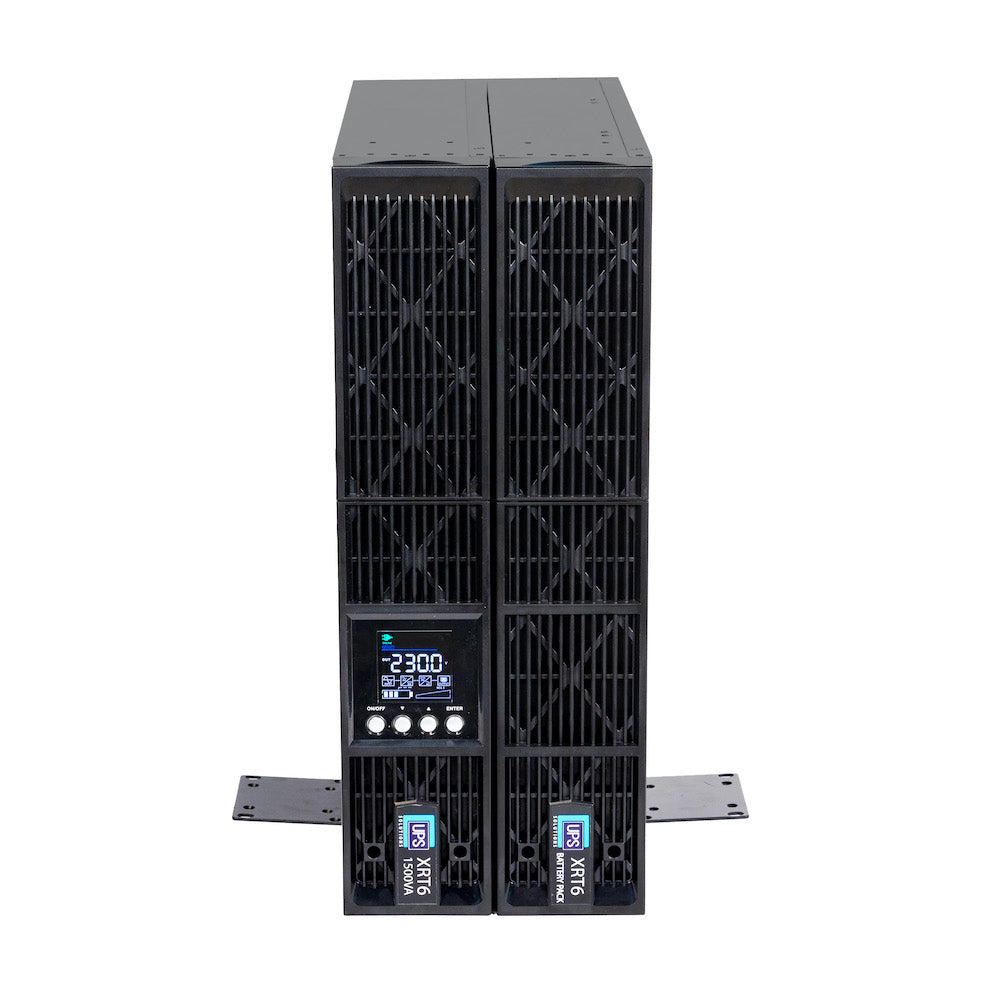

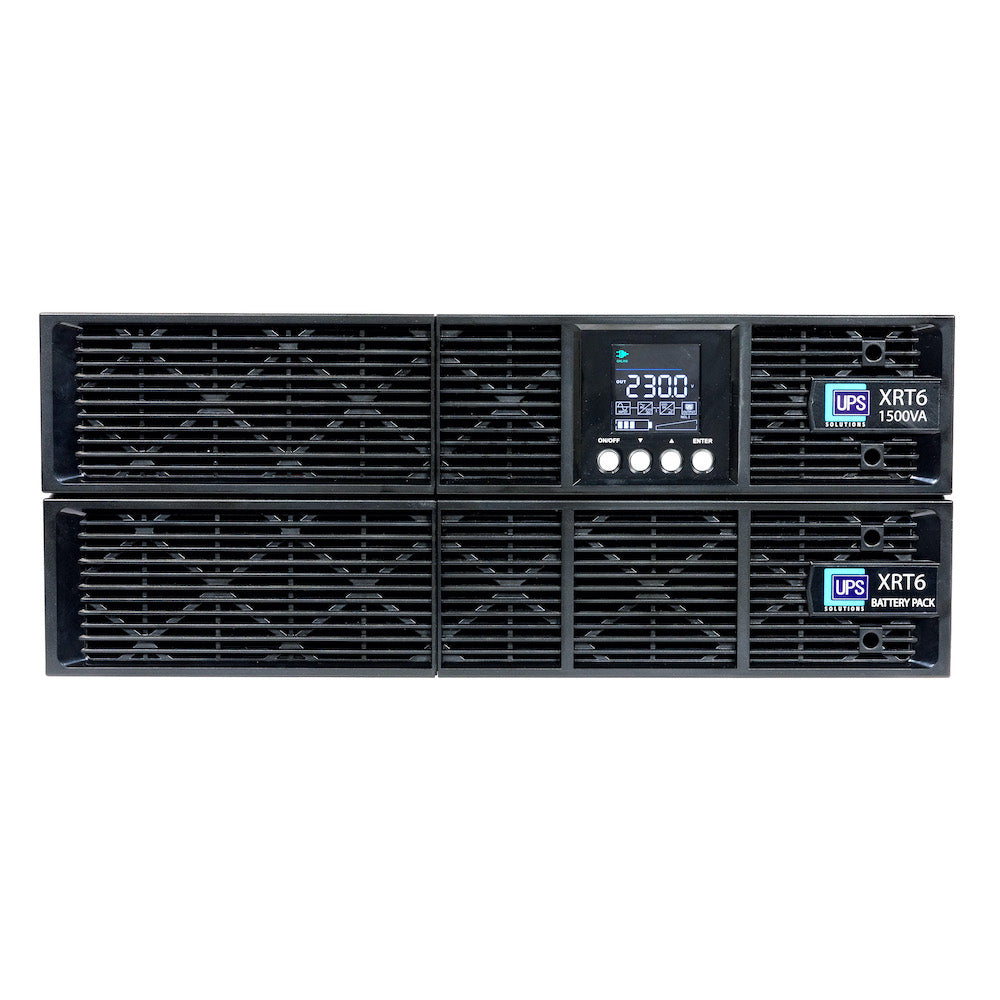

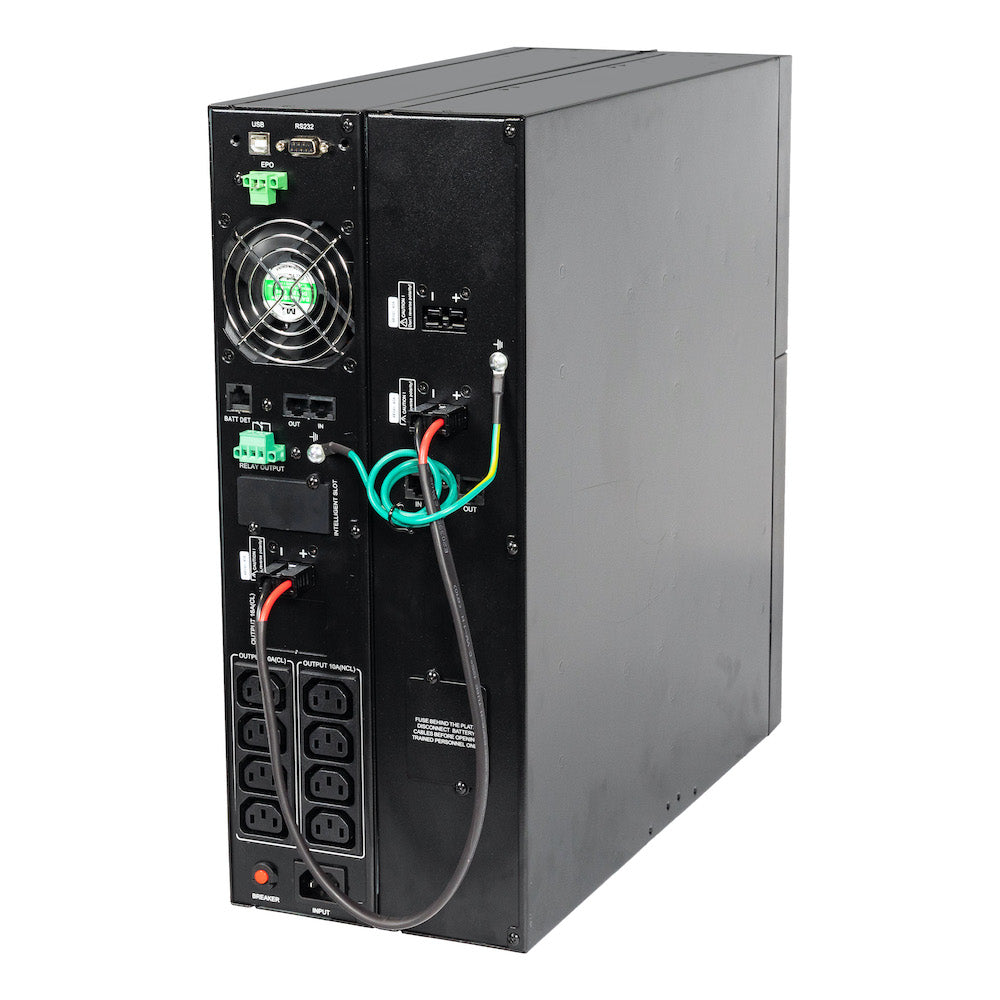

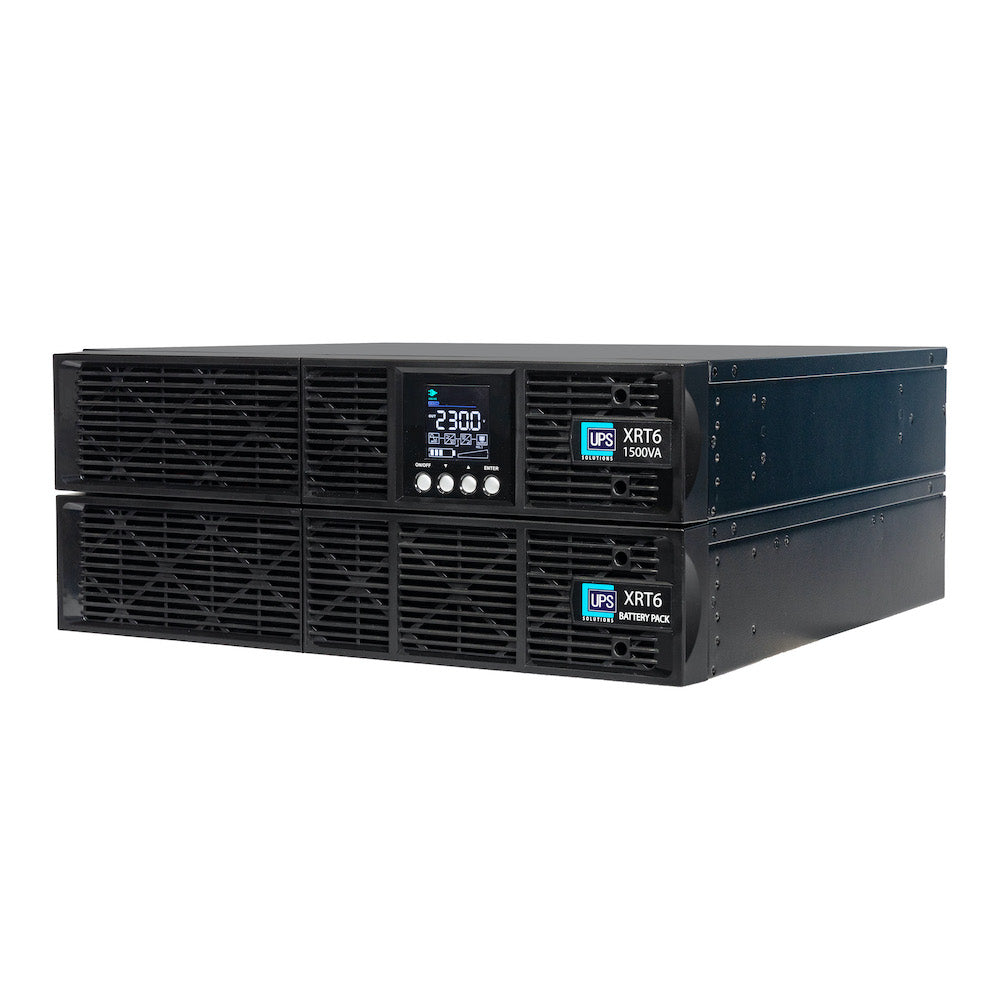

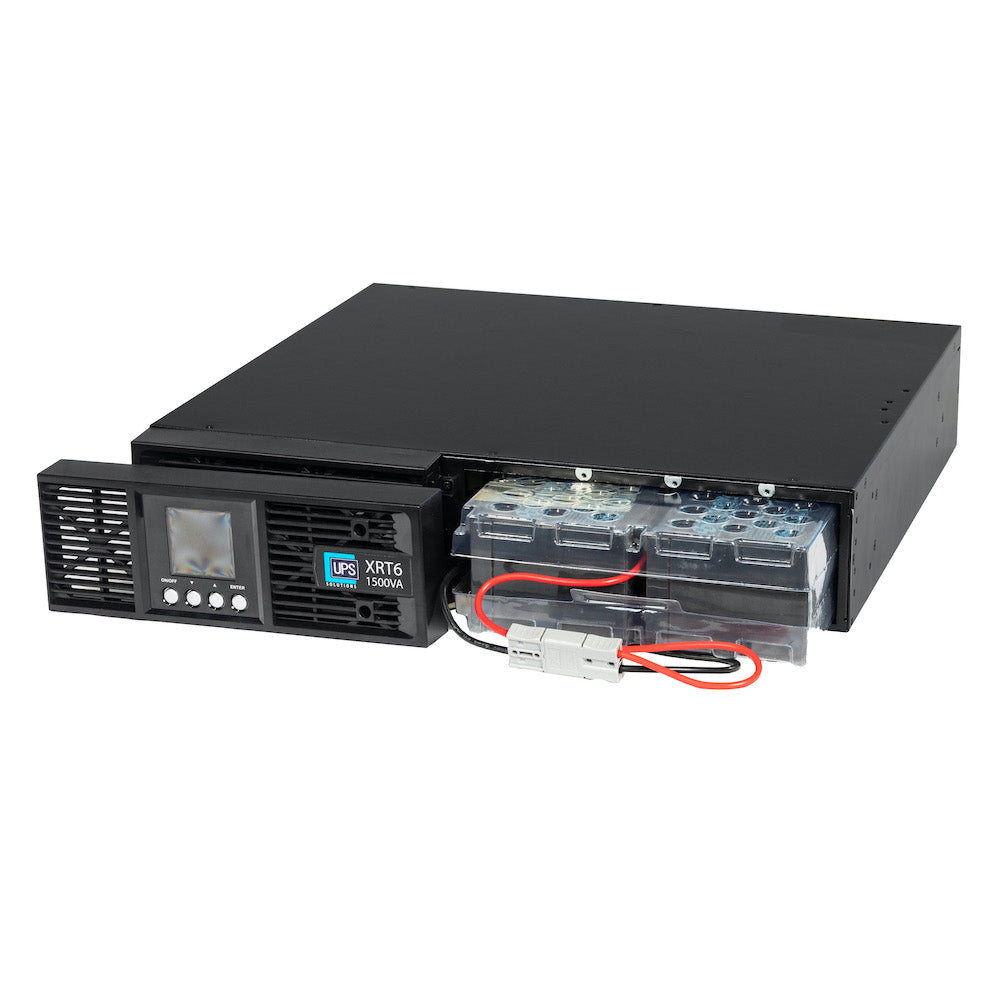

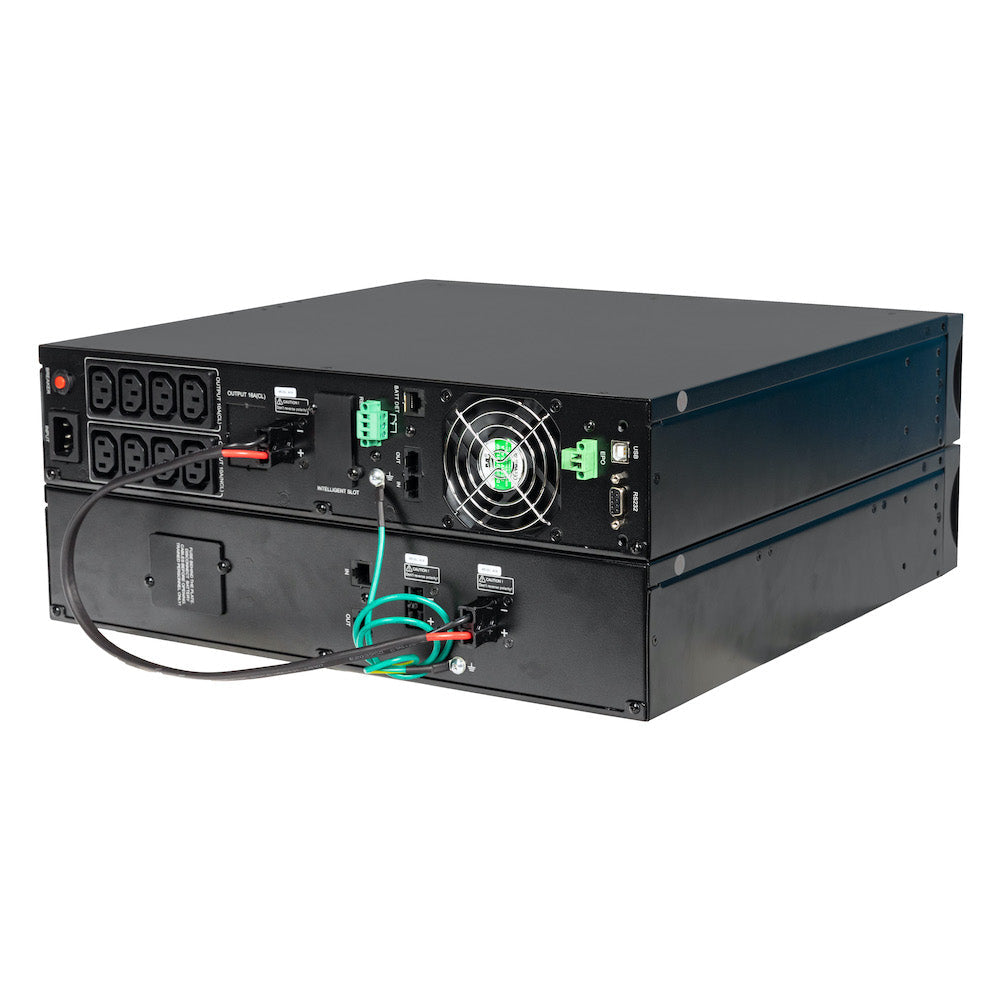

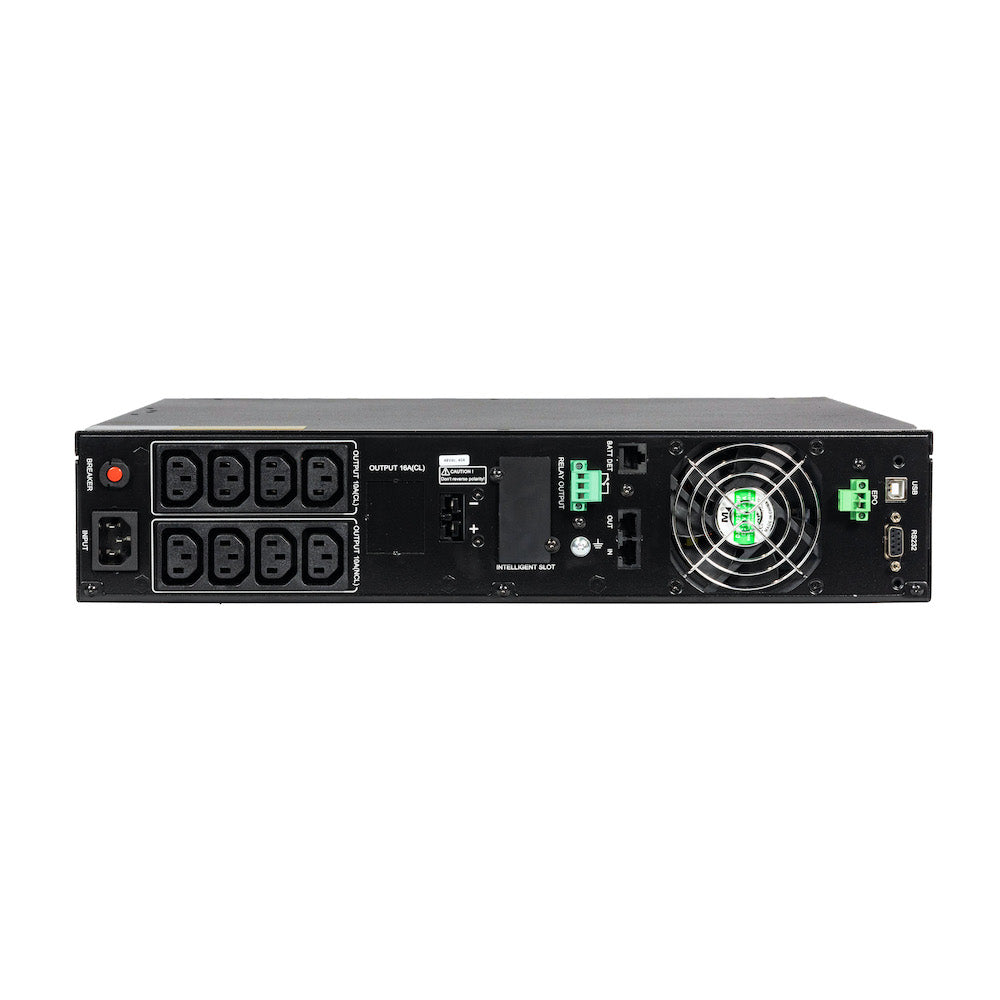

UPS Solutions XRT6 Online UPS 1.5KVA with 10 Year Design Life Batteries as Standard - 230V Rack/Tower 2U w/ long Life Battery - XRT6-1500L

UPS Solutions XRT6 Online UPS 1.5KVA with 10 Year Design Life Batteries as Standard - 230V Rack/Tower 2U w/ long Life Battery - XRT6-1500L

3 Year Warranty on the UPS and Batteries Included.

The XRT6 is a true on-line double conversion UPS delivering continuous, high-quality 230V AC power without interruption when transferring to battery. The UPS will protect against 10 out of 10 main power issues including all power disturbances due to blackouts, brownouts, sags, surges and noise interference. The XRT6 is the only UPS available in Australia with 10-year design life batteries.

Input: 10Amp Cable
Output: (6) IEC 320 C13
UPS Rating: 1500VA/1350W
Batteries: Lead Acid - 10 Year Design Life
Communication Management: SNMP Card Optional, USB
Runtime: Approx. 16 Mins @ 50% Load (Additional external battery modules increase runtime by approx. 15-20 mins per EBM)
UPS Technology: Double-conversion Online
UPS Runtime: Extended Runtime (View Runtime Chart)
UPS KVA Rating: 0kVA - 1.5kVA
UPS Topology: Double-conversion Online
Form Factor: Rack / Tower (rackmount rail kits included)
Wiring Type: Single Phase
Wiring Input: 10amp
Dimensions: (WxHxD) 440mm x 90mm x 442 mm (2U)
Warranty: 3 Year Warranty
Part Number: XRT6-1500L

FEATURES:

• Long Life Batteries - 10 Year Design Life
• Reduced Cost - The XRT6 series reduces the need for replacement batteries, saving on replacement costs and reducing the environmental impact by using fewer batteries over the lifetime of the UPS system.
• Fire Retardant - Up to 2 hours fireproof

WHAT'S IN THE BOX?

✓ UPS
✓ x2 10A IEC Cables
✓ x1 10A Power Cables
✓ Tower Stands
✓ Rackmount Rails
✓ Hardware, Software and Manuals
✓ Cables and Ties

Download Brochure

$1,890.00

Ex. GST

View Details

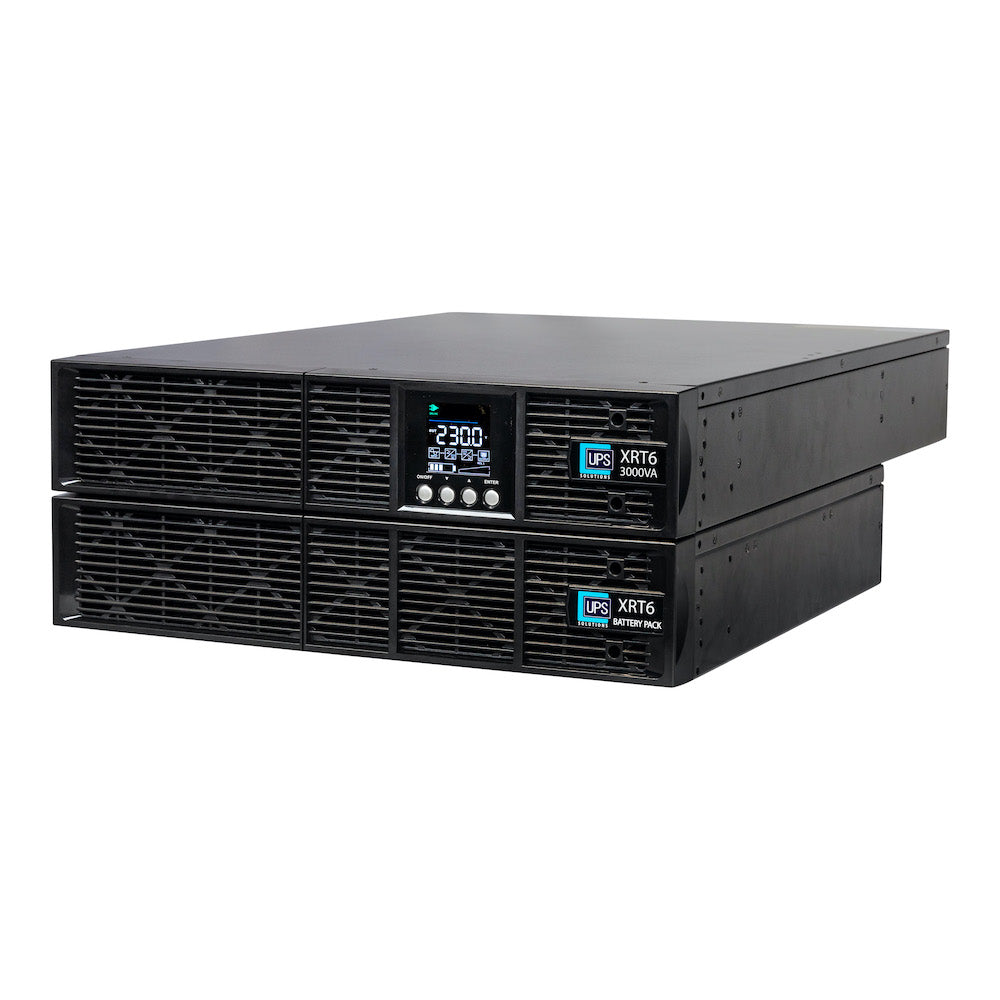

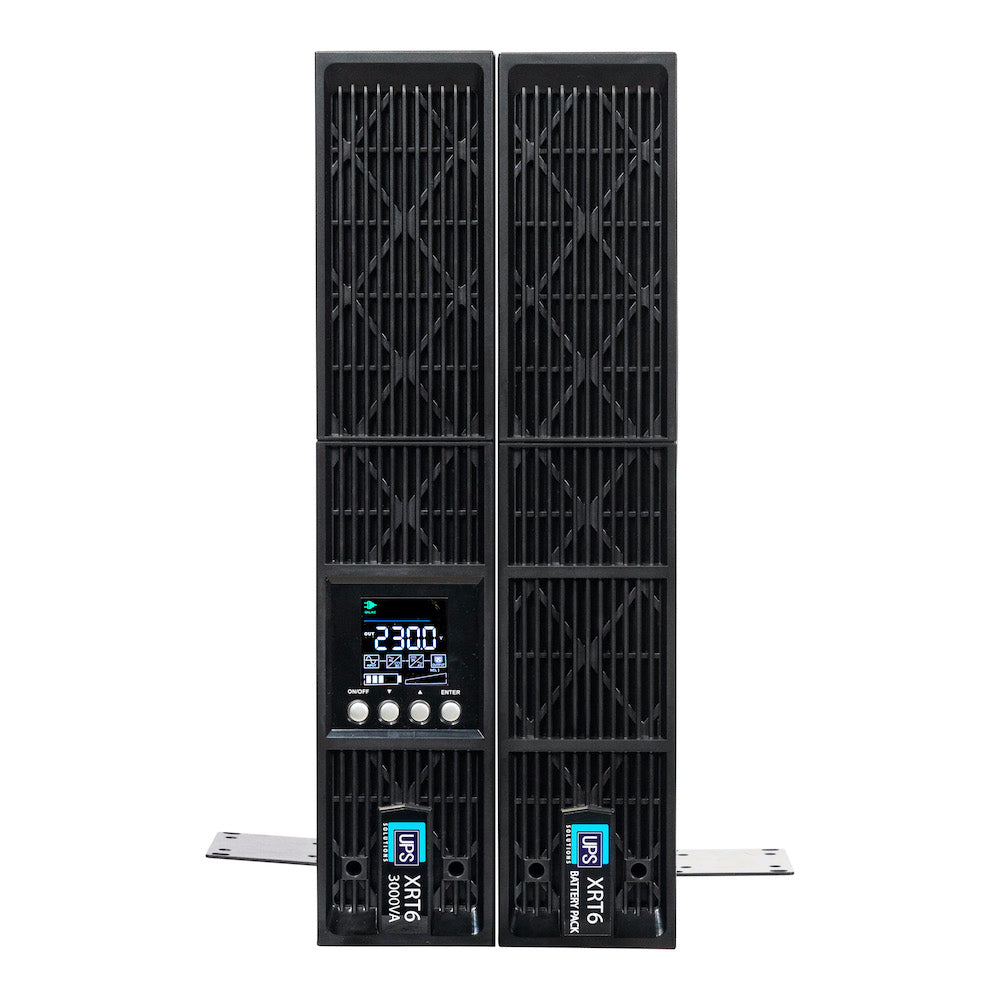

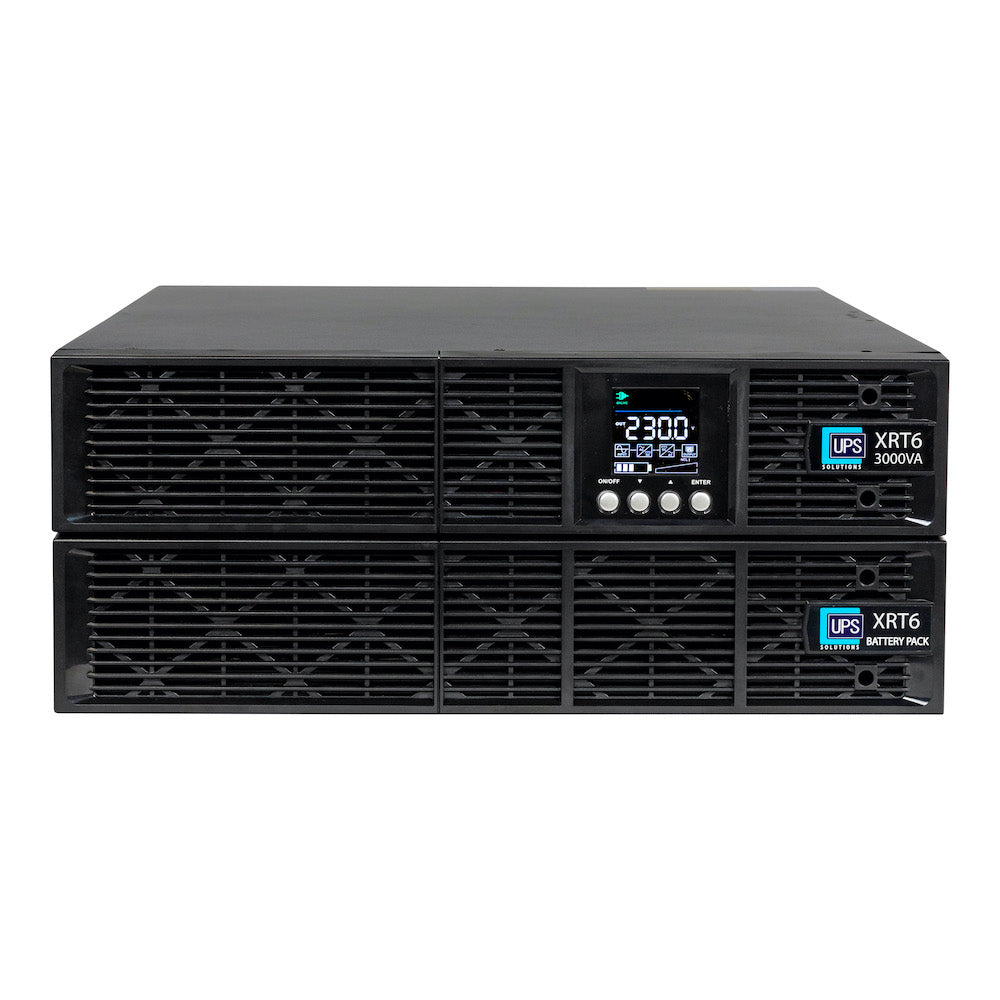

UPS Solutions XRT6 Online UPS 3KVA with 10 Year Design Life Batteries as Standard - 230V Rack/Tower 6U w/ Long Life Battery - XRT6-3000L

UPS Solutions XRT6 Online UPS 3KVA with 10 Year Design Life Batteries as Standard - 230V Rack/Tower 6U w/ Long Life Battery - XRT6-3000L

3 Year Warranty on the UPS and Batteries Included.

The XRT6 is a true on-line double conversion UPS delivering continuous, high-quality 230V AC power without interruption when transferring to battery. The UPS will protect against 10 out of 10 main power issues including all power disturbances due to blackouts, brownouts, sags, surges and noise interference. The XRT6 is the only UPS available in Australia with 10-year design life batteries.

Input: 15Amp Cable
Output: (8) IEC 320 C13 (1) IEC 320 C19
UPS Rating: 3000VA/2700W
Batteries: Lead Acid - 10 Year Design Life
Communication Management: SNMP Card Optional, USB
Runtime: Approx. 16 Mins @ 50% Load (Additional external battery modules increase runtime by approx. 15-20 mins per EBM)
UPS Technology: Double-conversion Online
UPS Runtime: Extended Runtime (View Runtime Chart)
UPS KVA Rating: 0kVA - 3.0kVA
UPS Topology: Double-conversion Online
Form Factor: Rack / Tower (rackmount rail kits included)
Wiring Type: Single Phase
Wiring Input: 15/16amp
Dimensions: (WxHxD) 440mm x 90mm x 610 mm (2U)
Warranty: 3 Year Warranty
Part Number: XRT6-3000L

FEATURES:

• Long Life Batteries - 10 Year Design Life
• Reduced Cost - The XRT6 series reduces the need for replacement batteries, saving on replacement costs and reducing the environmental impact by using fewer batteries over the lifetime of the UPS system.
• Fire Retardant - Up to 2 hours fireproof

WHAT'S IN THE BOX?

✓ UPS
✓ x2 10A IEC Cables
✓ x1 15A Power Cables
✓ Tower Stands
✓ Rackmount Rails
✓ Hardware, Software and Manuals
✓ Cables and Ties

Download Brochure

$3,560.00

Ex. GST

View Details

UPS Solutions XRT6 Online UPS 6KVA with 10 Year Design Life Batteries as Standard - 230V Rack/Tower 6U w/ Long Life Battery, SNMP Network Card + Surge Protection Device - XRT6-6000L

UPS Solutions XRT6 Online UPS 6KVA with 10 Year Design Life Batteries as Standard - 230V Rack/Tower 6U w/ Long Life Battery, SNMP Network Card + Surge Protection Device - XRT6-6000L

UPS Solutions Deal - The above price includes a plug-n-play external Surge Protection Device (View Details) that gives extra surge protection to both the UPS and the valuable connected devices + 5 Year Warranty on the UPS and Batteries.

The XRT6 is a true on-line double conversion UPS delivering continuous, high-quality 230V AC power without interruption when transferring to battery. The UPS will protect against 10 out of 10 main power issues including all power disturbances due to blackouts, brownouts, sags, surges and noise interference. The XRT6 is the only UPS available in Australia with 10-year design life batteries.

Input: 32Amp
Output: Terminal Block x1 + IEC C13 x4 + IEC C19 x4
UPS Rating: 6000VA/5400W
Batteries: Lead Acid - 10 Year Design Life
Communication Management: SNMP Card Included, USB
Runtime: Approx. 16 Mins @ 50% Load (Additional external battery modules increase runtime by approx. 15-20 mins per EBM)
UPS Technology: Double-conversion Online
UPS Runtime: Extended Runtime (View Runtime Chart)
UPS KVA Rating: 0kVA - 6.0kVA
UPS Topology: Double-conversion Online
Form Factor: Rack / Tower (rackmount rail kits included)
Wiring Type: Single Phase
Wiring Input: Hardware Terminal Block
Dimensions:
UPS: (WxHxD) 440mm x 135mm x 490mm (UPS)(3U)
Battery Module: (Included as standard) (WxHxD) 440mm x 130mm x 790mm (Battery)(3U)
Installation Clearance: (WxHxD) 440mm x 265mm x 900mm (Inc. UPS + Battery Module + IEC Bypass Panel + 30mm Allowance for Cable Clearance)
Warranty: 5 Years Warranty
Part Number: XRT6-6000L

FEATURES:

• Long Life Batteries - 10 Year Design Life
• Reduced Cost - The XRT6 series reduces the need for replacement batteries, saving on replacement costs and reducing the environmental impact by using fewer batteries over the lifetime of the UPS system.
• Fire Retardant - Up to 2 hours fireproof

WHAT'S IN THE BOX?

✓ UPS
✓ Surge Protection Device
✓ IEC Cables
✓ Power Cables
✓ Tower Stands
✓ Rackmount Rails
✓ Hardware, Software and Manuals
✓ Cables and Ties

LABOUR WARRANTY

Onsite fault response or repair within 100KM of CBD Metro after remote diagnosis.

Download Brochure

$9,260.00

Ex. GST

View Details

UPS Solutions XRT6 Online UPS 10KVA with 10 Year Design Life Batteries as Standard - 230V Rack/Tower 6U w/ Long Life Battery, SNMP Network Card + Surge Protection Device - XRT6-10000L

UPS Solutions XRT6 Online UPS 10KVA with 10 Year Design Life Batteries as Standard - 230V Rack/Tower 6U w/ Long Life Battery, SNMP Network Card + Surge Protection Device - XRT6-10000L

UPS Solutions Deal - The above price includes a plug-n-play external Surge Protection Device (View Details) that gives extra surge protection to both the UPS and the valuable connected devices + 5 Year Warranty on the UPS and Batteries.

The XRT6 is a true on-line double conversion UPS delivering continuous, high-quality 230V AC power without interruption when transferring to battery. The UPS will protect against 10 out of 10 main power issues including all power disturbances due to blackouts, brownouts, sags, surges and noise interference. The XRT6 is the only UPS available in Australia with 10-year design life batteries.

Input: 63Amp
Output: Terminal Block x1 + IEC C13 x4 + IEC C19 x4
UPS Rating: 10000VA/9000W
Batteries: Lead Acid - 10 Year Design Life
Communication Management: SNMP Card Included, USB
Runtime: Approx. 16 Mins @ 50% Load (Additional external battery modules increase runtime by approx. 15-20 mins per EBM)
UPS Technology: Double-conversion Online
UPS Runtime: Extended Runtime (View Runtime Chart)
UPS KVA Rating: 0kVA - 10.0kVA
UPS Topology: Double-conversion Online
Form Factor: Rack / Tower (rackmount rail kits included)
Wiring Type: Single Phase
Wiring Input: Hardware Terminal Block
Dimensions:
UPS: (WxHxD) 440mm x 135mm x 490mm (UPS)(3U)
Battery Module: (Included as standard) (WxHxD) 440mm x 130mm x 790mm (Battery)(3U)
Installation Clearance: (WxHxD) 440mm x 265mm x 900mm (Inc. UPS + Battery Module + IEC Bypass Panel + 30mm Allowance for Cable Clearance)
Warranty: 5 Years Warranty
Part Number: XRT6-10000L

FEATURES:

• Long Life Batteries - 10 Year Design Life
• Reduced Cost - The XRT6 series reduces the need for replacement batteries, saving on replacement costs and reducing the environmental impact by using fewer batteries over the lifetime of the UPS system.
• Fire Retardant - Up to 2 hours fireproof

WHAT'S IN THE BOX?

✓ UPS
✓ Surge Protection Device
✓ IEC Cables
✓ Power Cables
✓ Tower Stands
✓ Rackmount Rails
✓ Hardware, Software and Manuals
✓ Cables and Ties
